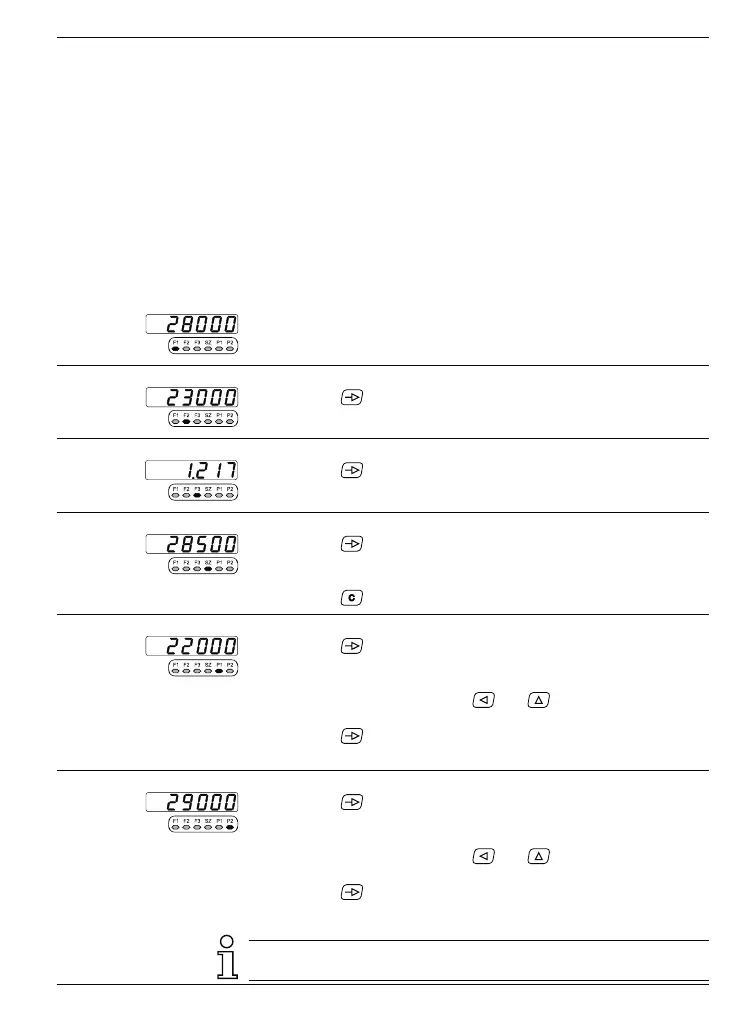

4 Operating mode
Operation and application of the device are described in this chapter.
● After switching on the supply voltage, the device is automatically-
ready for operation.
Operating level On the operating level, it is possible:
- to read tachometer display F1, e.g. supply speed;
- to read tachometer display F2, e.g. rpm;
- to read the measurement display F3, e.g. ratio between F1:F2;
- to read, delete and modify the „max hold“ display, e.g. F2 max.;
- to read, delete and modify the limit values P1 and P2.
On the programming level, it is possible to disable all parameters (for
more information, see also chapter 5, programming field 2.)
Read tachometer display F1
➜ Read the displayed value
Read tachometer display F2
➜ Press the key.
➜ Read the displayed value
Measurement function F3
➜ Press the key.
➜ Read the displayed value
Reset
„Read „Max hold“
➜ Press the
key.
➜ Read the „Max hold“ value.
➜ Press the key.
Modify
Limit value P1
➜ Press the
key.
➜ Read the set limit value P1
➜ Enter the limit value P1 using and , sign before the 6th
decade after figure 9.
➜ Press the key.
● Modification completed.
Modify
Limit value P2
➜ Press the
key.
➜ Read the set limit value P2
➜ Enter the limit value P2 using and , sign before the 6th
decade after figure 9.
➜ Press the key.
● Modification completed.
After 15 seconds without activating a key, the previous limit value is
automatically restored and displayed.
