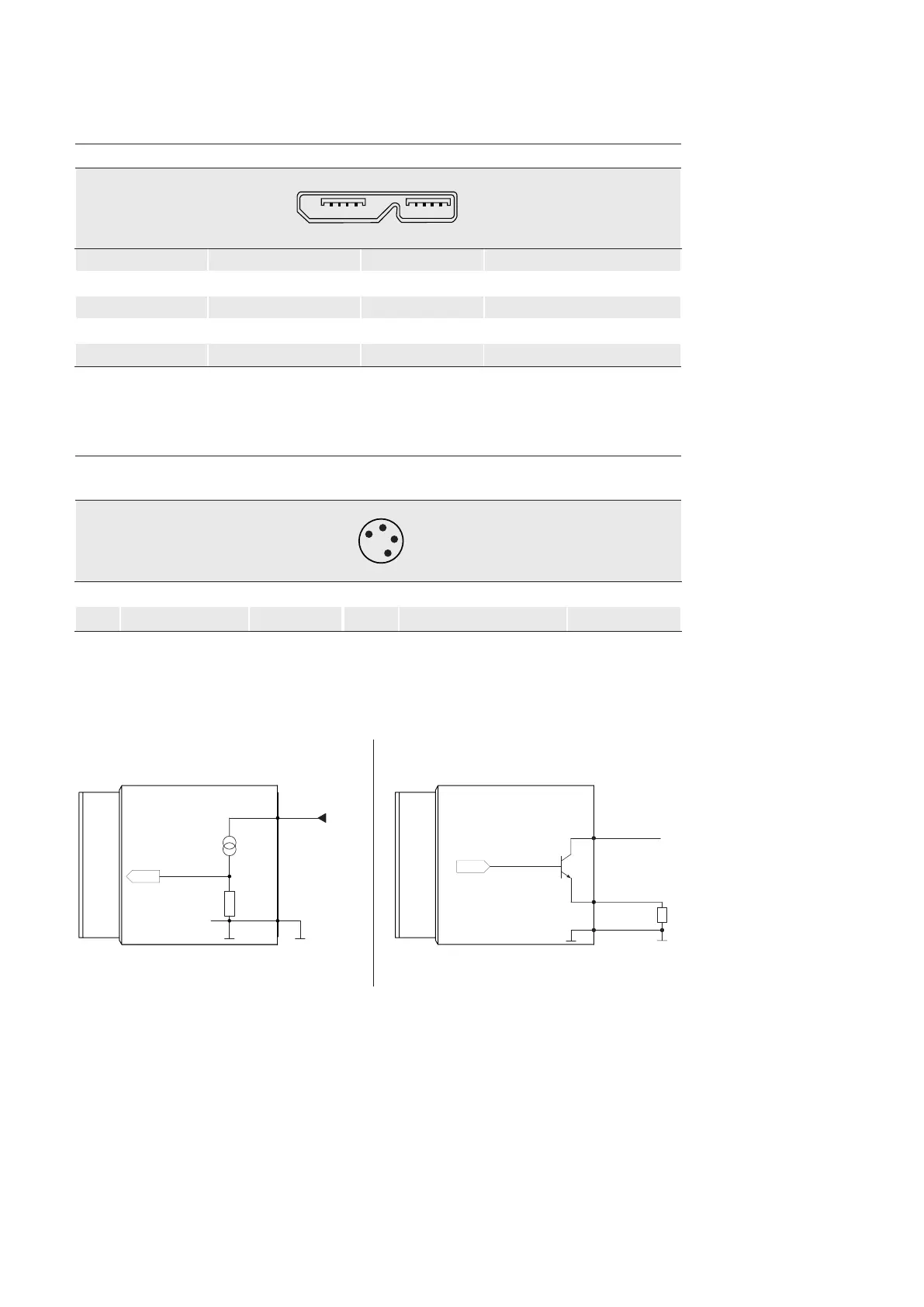

6.2 VEXU
6.2.1 USB 3.0 Interface
USB 3.0 Micro B
12345 678910
1 VBUS 6 MicB_SSTX-
2 D- 7 MicB_SSTX+
3 D+ 8 GND_DRAIN
4 ID 9 MicB_SSRX-
5 GND 10 MicB_SSRX+
6.2.2 Digital-IOs
Power Supply / Digital-IOs (on camera side)
wire colors of the connecting cable (ordered separately)
1
2
4
3
1 Power IO brown
3 GND
blue
2 IN1 (Line0)
white
4 OUT1 (Line1)
black
6.2.3 Digital-IO
Input
Output
Pin 2
(IN1)
FPGA
FPGA
Pin 3
(GND)
Pin 1
(Power IO)
Pin 4
(OUT)
R
L
(+5 ... 20 VDC ± 20 %)
Pin 3
(GND)
