8.4.7 ExposureActive (Flash Signal)
This signal is managed by exposure of the sensor.
Furthermore, the falling edge of the ExposureActive output signal can be used to trigger
a movement of the inspected objects. Due to this fact, the span time used for the sensor
readout t
readout
can be used optimally in industrial environments.

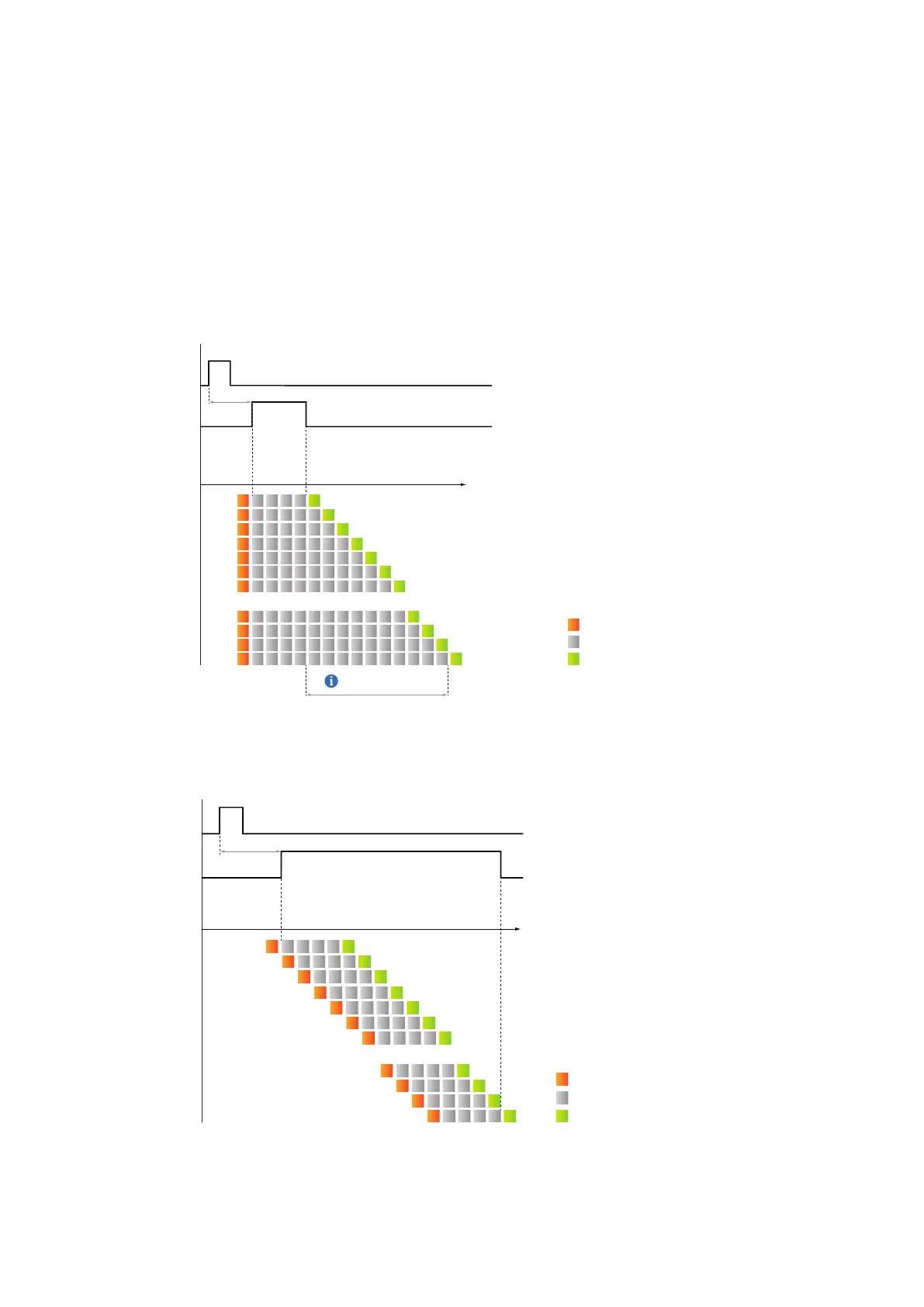

Depending on Sensor Shutter Mode (only cameras with Rolling Shutter sensors), the
ExposureActive signal is active at different times.
Sensor Shutter Mode: Global Reset
Shutter
Line 1
Exposure
Readout
...
Time
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line n
Line n-3
Line n-2
Line n-1
Trigger
ExposureActive
t
TriggerDelay (jitter possible)
Shading of extraneous
light necessary
Sensor Shutter Mode: Rolling Shutter
Shutter
Trigger
Line 1
Exposure
Readout
...
Time
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line n
Line n-3
Line n-2
Line n-1
ExposureActive
t
TriggerDelay (jitter possible)
