2.3 Nameplate
The nameplate is used to identify each electric motor. The unique motor number is clearly shown
on each nameplate and is essential for internal tracking procedures. It must be possible to read the
nameplate at all times. Never remove the nameplate from your motor.

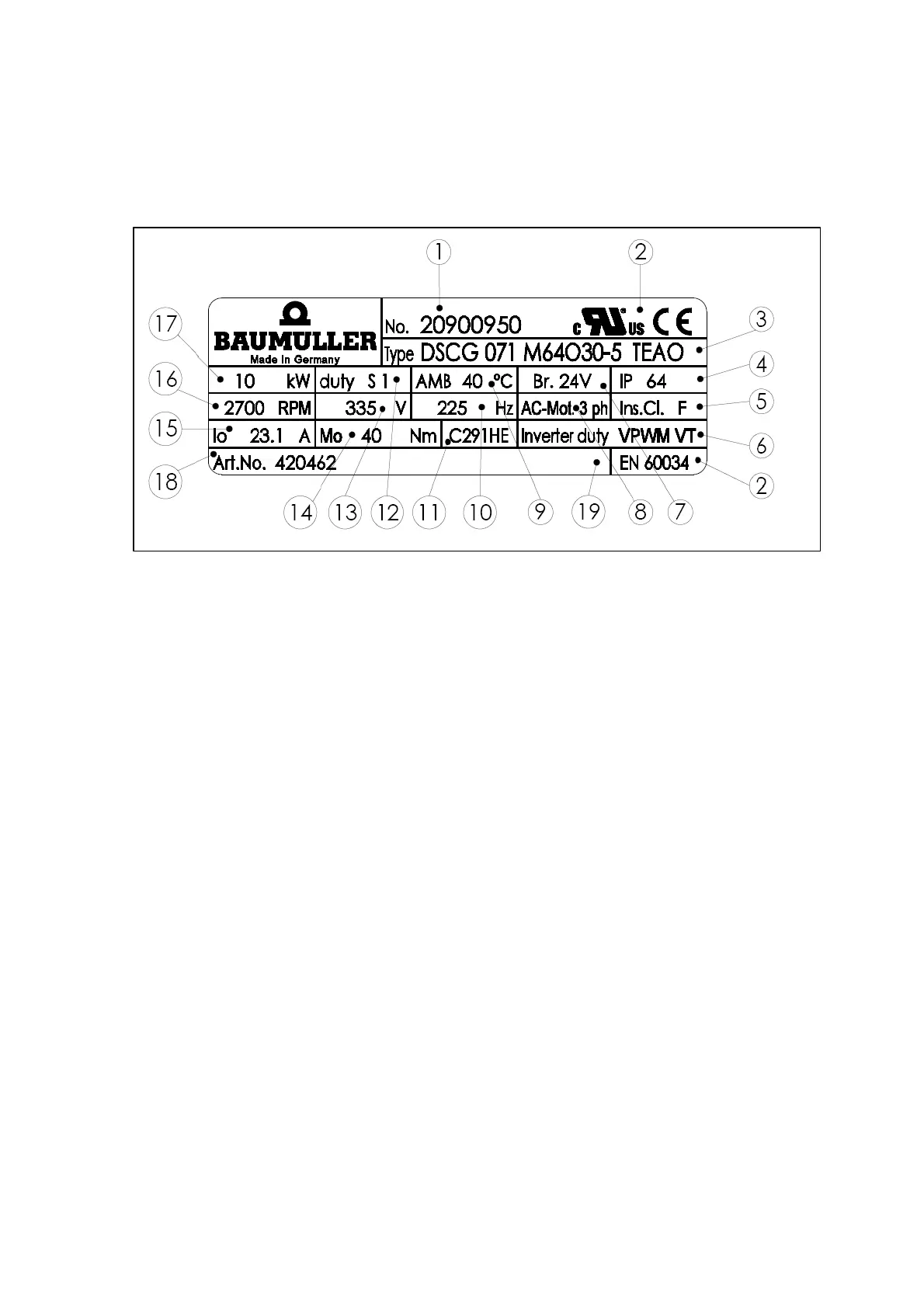

Figure 1: Nameplate
1 →
Motor number
2 →
Standards and approbation
3 →
Motor type / designation
4 →
Motor protection class
5 →
Heat category (class of insulation
VDE)
6 →
Motor is powered with converter
7 →
(optional) Supply voltage of the
brakes DC
8 →
Motor type: 3-phase motor
9 →
Permitted ambient temperature
10 →
Rated frequency
11 →
Isolation system UL
12 →
Motor operating type
13 →
Rated voltage U
N
14 →
Standstill torque Mo
15 →
Standstill current lo
16 →
Rated speed n
N
17 →
Rated output P
N
18 →
Article number
19 →
Kind of balancing (only for motor
size 45 and 56)
