Fig.14
MW-C000373-1
Brrrrr....
Brrrrr....
Brrrrr....
Brrrrr....
Fig.15
E
E
D
D
A
A
B
B
A
A
A
C
C
M
ax. 500
M
ax. 500

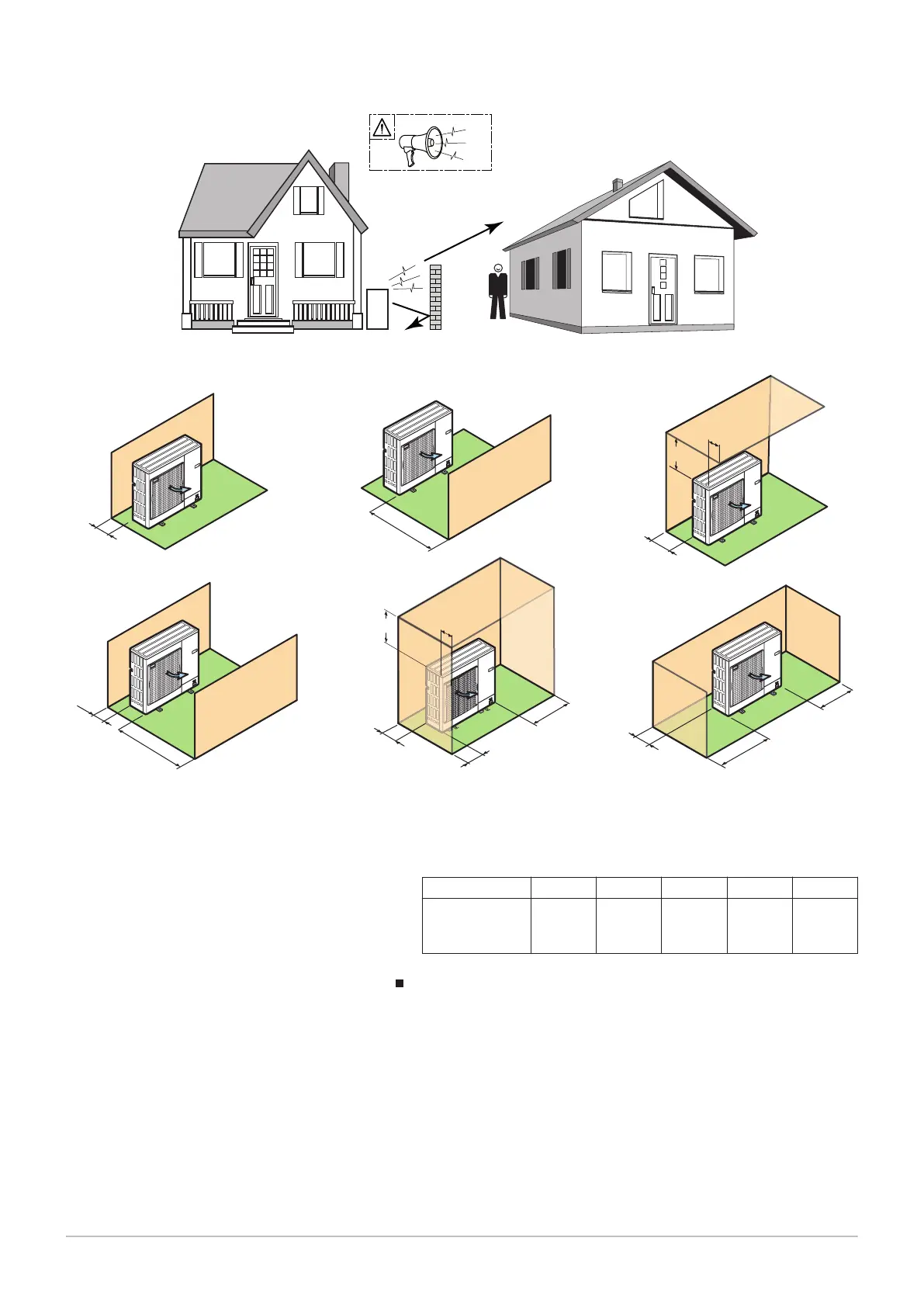

1. Locate the noise abatement screen as close as possible to the source
of noise whilst allowing for the free circulation of air in the exchanger
on the outdoor unit and maintenance work.
2. Respect the following minimum positioning distances of the outdoor
unit from the wall.
A B C D E
Minimum di
mensions in
mm
300 1500 500 200 600
Selecting the location of the outdoor unit in cold and snowy
regions
Wind and snow can significantly reduce the performance of the outdoor
unit, the location of the outdoor unit must meet the following conditions.
5 Before installation
7740327 - v03 - 03122019 23
