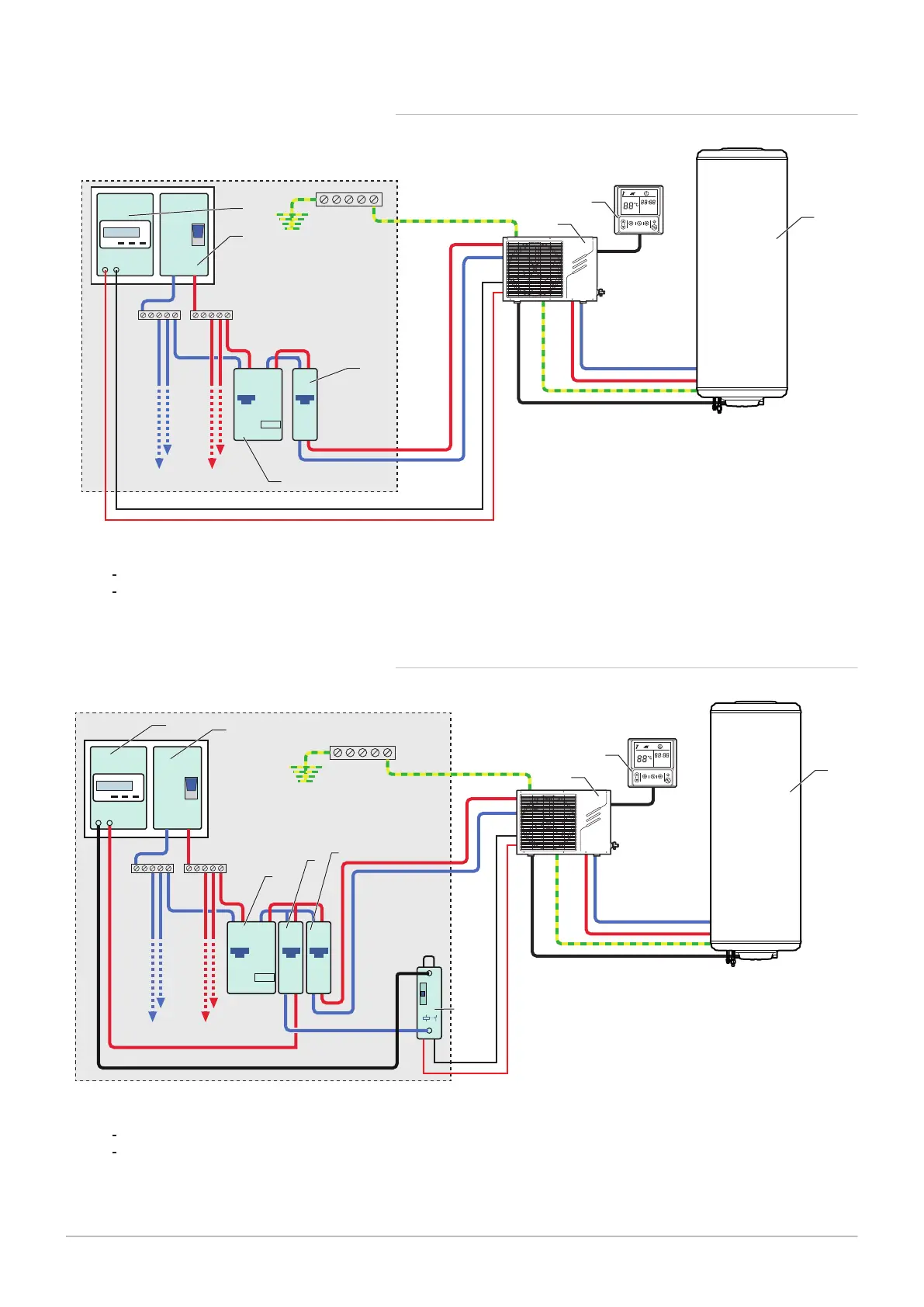

6.4.2 Electrical connection with off-peak/peak rate cables
Fig.24
C1 C2
538 kW/h
1
0
15 / 45 A
500 mA
TEST
16 A40 A
30
mA
L
4
5
7
6
N
Electrical
Heating
Timer 1
On Off
Timer 2
On Off
Set Temp
Error
Electrical
Heating
Heating
Timer /
Clock
Enter
HN
HL
3
2
MW-2000613-1
1
1 Domestic hot water tank
2 Outdoor unit
HL: Phase of the immersion heater power supply
HN: Neutral of the immersion heater power supply
3 Control panel
4 Electricity meter
5 Connection circuit breaker
6 AC-type differential switch
7 Circuit breakers
6.4.3 Electrical connection with off-peak/peak rate switch
Fig.25
MW-2000612-1
C1 C2
538 kW/h
1
1
A1
A2
0
Auto
0
15 / 45 A
500 mA
TEST
16 A40 A 2 A
30
mA
4
5
6
7
7
8
1
L
N
Electrical
Heating
Timer 1
On Off
Timer 2
On Off
Set Temp
Error
Electrical
Heating
Heating
Timer /
Clock
Enter
HN
HL
3
2
1 Domestic hot water tank
2 Outdoor unit
HL: Phase of the immersion heater power supply
HN: Neutral of the immersion heater power supply
3 Control panel
4 Electricity meter
5 Connection circuit breaker
6 AC-type differential switch
7 Circuit breakers
8 Peak rate/off-peak rate switch
6 Connecting diagrams
