7.5 Electrical connections
7.5.1 Electrical recommendations
Only qualified professionals may carry out electrical connections, always
with the power off.
Separate the very low voltage cables from the 230V circuit cables.
The electrical power supply is done by means of a mains connection cable
(~230 V, 50 Hz) in accordance with prevailing national regulations for
electrical installations.
Respect the polarities when making the electrical connections to the
mains:
Brown wire (L) : Live
Blue wire (N) : Neutral
Green/yellow wire : Earth
1. If the power supply cable is damaged, you must have it replaced by a
qualified installer.
2. Do not connect the power supply directly to the peak/off-peak rate
contact.
7.5.2 Electrically connecting the outdoor unit

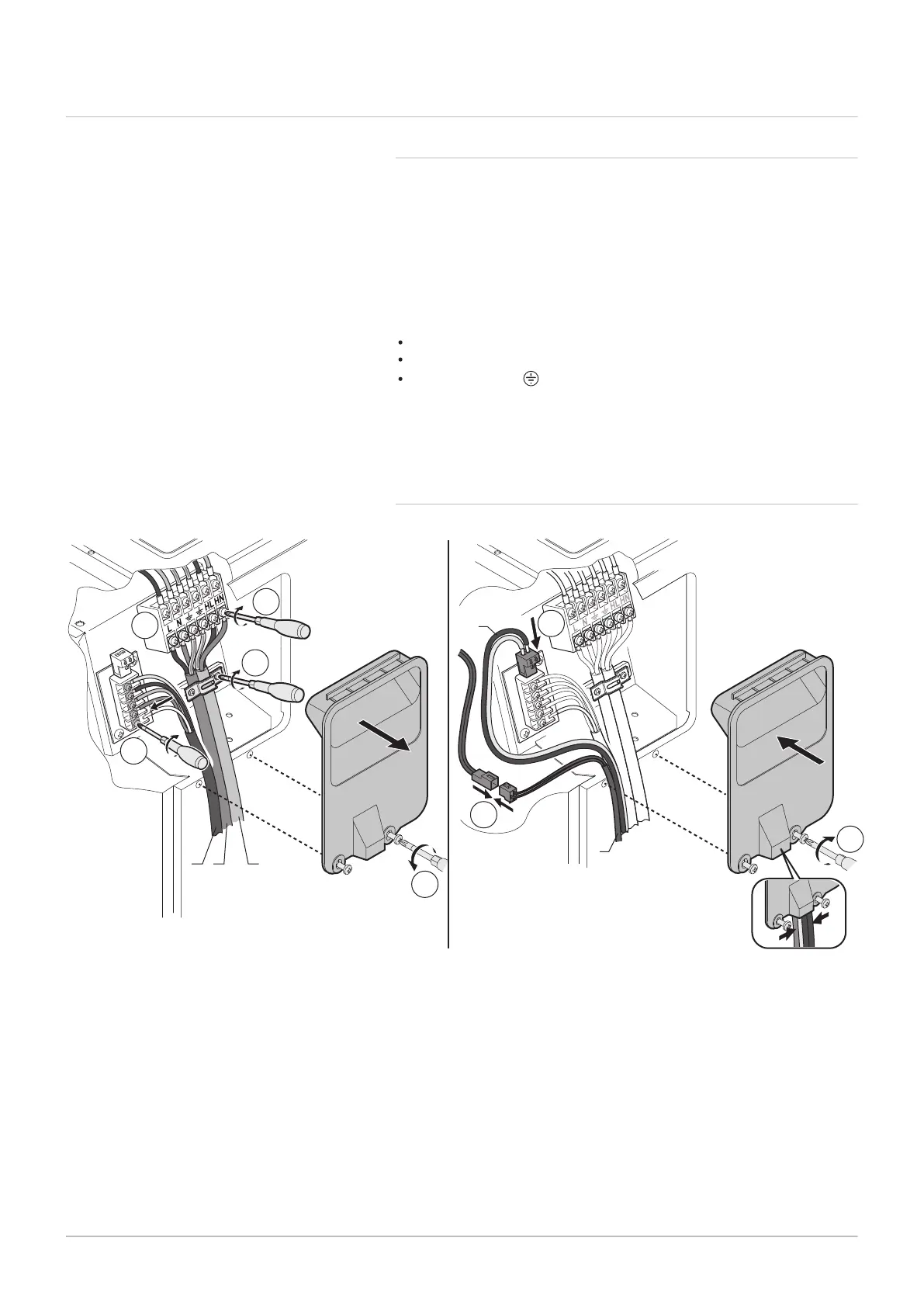

Fig.42
MW-2000629-1
P
B
A
Q
E
21 3
P
B
A
Q
E
4
5
2
5
1
6
7
8
3
4
1 Control panel electrical cable
2 General electrical cable of the outdoor unit
3 Immersion heater electrical cable
4 Temperature sensor cable
5 Peak/off-peak rate cable
The 3G power supply cable of a maximum length of 20 m and a 2.5 mm²
section to connect the outdoor unit, is provided by the installer.
1. Remove the service panel from the outdoor unit in order to access the
electrical terminal block.
2. Connect the general power supply cable to the appropriate terminals.
3. Connect the immersion heater power supply cable to the appropriate
terminals.
4. Secure the mains power supply cables with the traction arrester.
5. Connect the control panel power supply cable to the appropriate
terminals.
6. Connect the domestic hot water tank temperature sensor connector to
the appropriate terminals.
