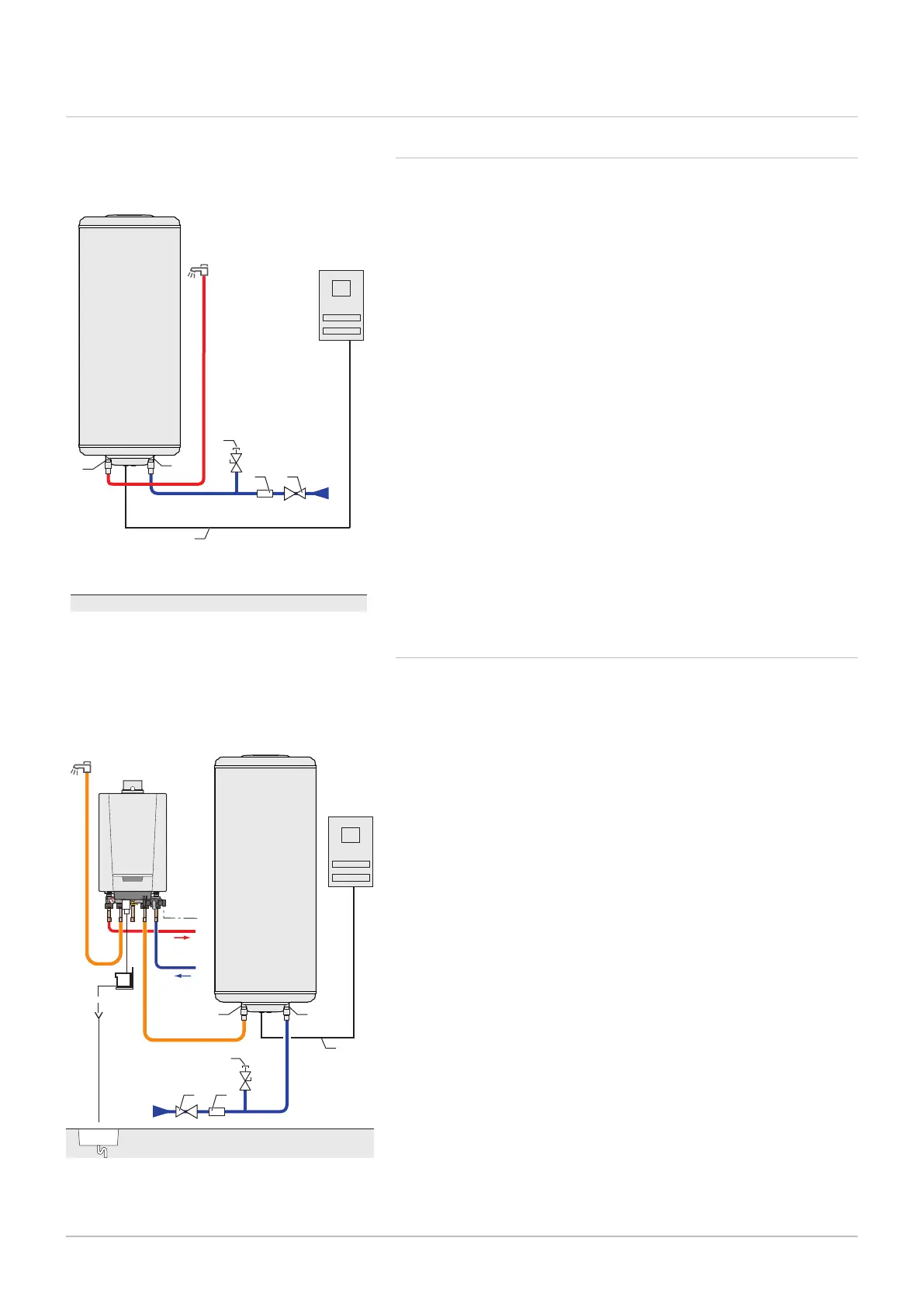

6.2 Connecting diagrams without external unit
6.2.1 Connecting diagram
A Domestic hot water tank
C Electrical box
1 Domestic hot water outlet with dielectric union
2 Domestic cold water inlet with dielectric union
3 Power supply cable for the immersion heater
5 Valve with plug
6 Safety unit
7 Pressure reducer
6.2.2 Connecting diagram with boiler back-up (Hybrid mode)
The Hybrid mode requires a water connection between the domestic hot
water tank and an instant boiler.
A Domestic hot water tank
C Electrical box
E Instant boiler
1 Domestic hot water outlet
2 Domestic cold water inlet
3 Power supply cable for the immersion heater
5 Safety unit
6 Pressure reducer
7 Valve with plug
Fig.20
MW-2000647-2
1
2
3
6
5
7
C
A
Fig.21
2 30 V
5 0H z
50
100
bar
4
3
2
1
0
°C
120
20
1204
ON OFF
A
U
T
0
MW-2000648-2
1 2
3
C
A
5
7
6
E
6 Connecting diagrams
7740327 - v03 - 03122019 27
