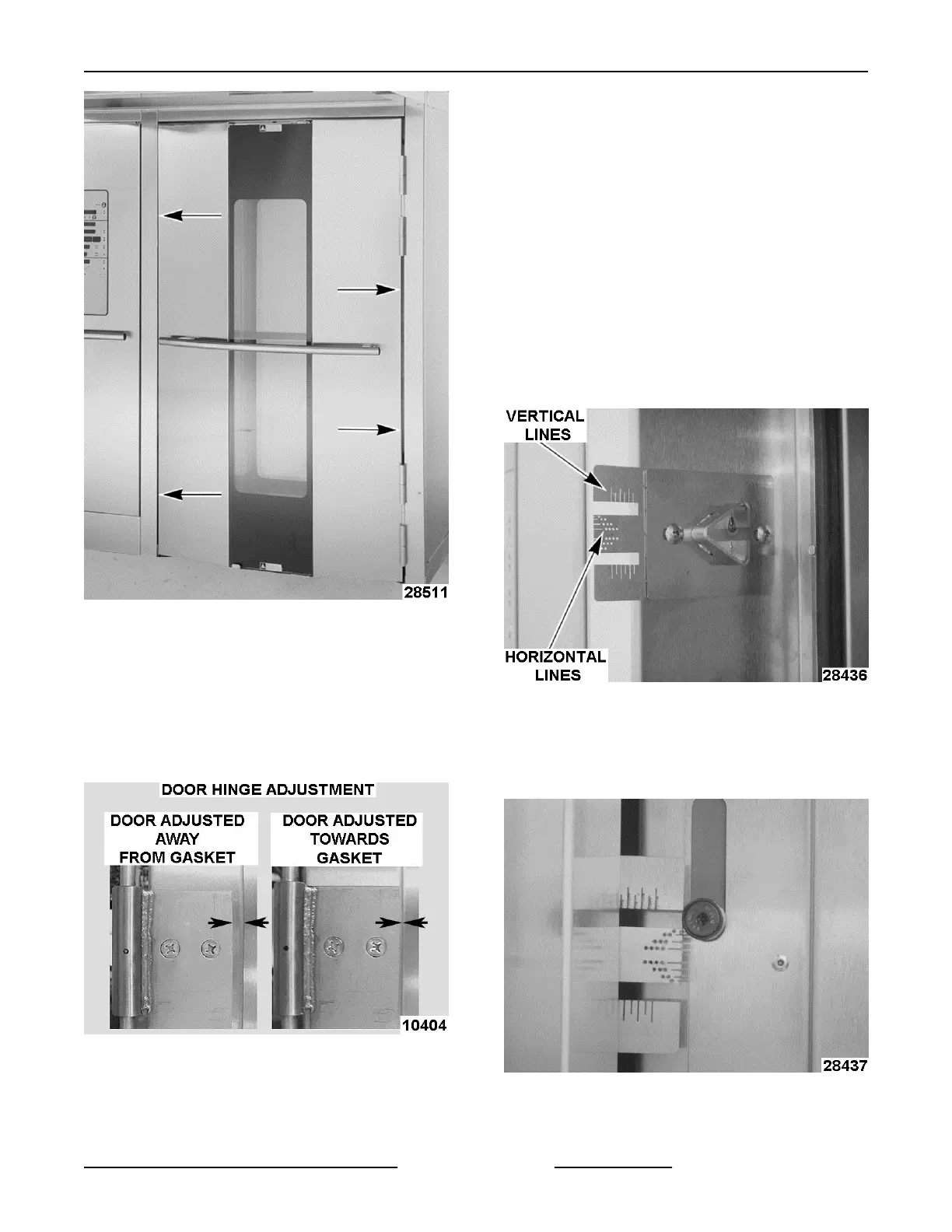

Fig. 74
NOTE: If the door rubs against the jamb or drags the
facility floor when opening, verify oven for levelness.
If leveling does not correct the problem then call
Bakery Service Support.
B. Adjust door hinge inward or outward until
door has an air tight seal against door
gasket.
Fig. 75
2.
Verify door latches properly.
A. Insert a piece of paper between door jamb
and door gasket on both sides & top of door.
B. If paper is loose, door latches will need
adjusted.
NOTE: Latch
alignment instructions are to help align
door rollers with latch ramps during installation. This
should be done after loading door is installed and oven
is level.
3. To align door latches:
A. With both door latch ramps having gauge
installed.
NOTE: Vertical lines for adjusting the ramps so the
wheels hit at the same time.
NOTE: If necessary, Horizontal lines to help select
which latch arms to use for correct positioning of the
wheels.
Fig. 76
B. Close the loading door to check roller shaft
alignment with latch ramp gauge. The roller
shaft should fit inside cutout on gauge as
shown.
Fig. 77
C. If
roller shaft does not align with gauge, then
the latch arms will have to be replaced.
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
Page 33 of 49 F45469 Rev. D (1019)
