baxter OV500 Series - Initial Start-Up Information Material

INITIAL START-UP INFORMATION MATERIAL

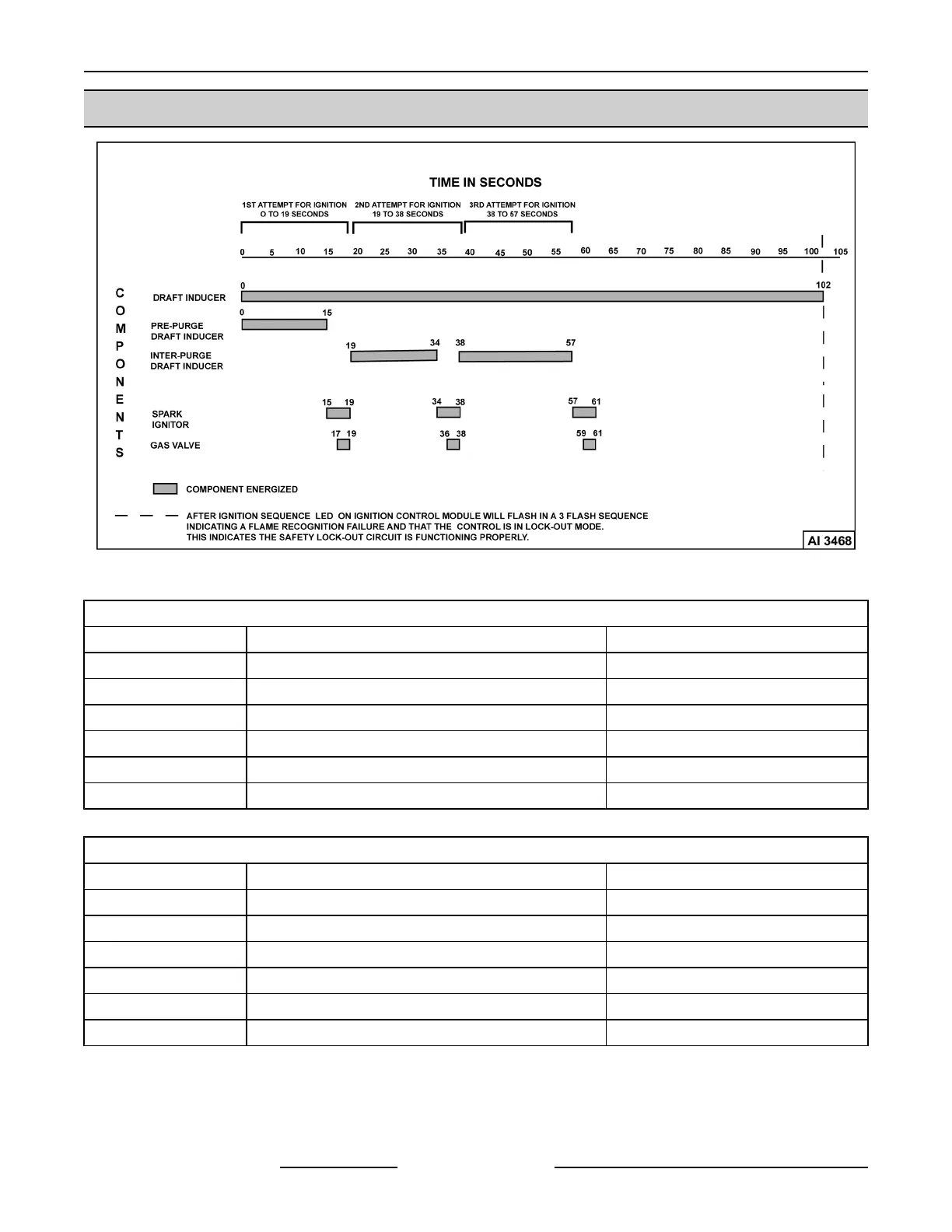

IGNITION SEQUENCE TIMING DIAGRAM
SUPPLY FLOW PRESSURES OV500G1-EE
Natural Gas Propane Gas
BTU/HR 180,000 180,000
W.C. 5.0 -10.0" 12.0 - 14.0"
kCAL/HR 45,400 45,400
cm W.C. 12.7 - 25.4 30.5 - 35.6
Mj/HR 190 190
kPa 1.25 - 2.50 3.00 - 3.50
SUPPLY FLOW PRESSURES OV500G2-EE
Natural Gas Propane Gas
BTU/HR 275,000 275,000
W.C. 5.0-14.0" 10.0"- 14.0"
kCAL/HR 69,300 69,300
cm W.C. 12.7 - 35.6 30.5 - 35.6
Mj/HR 290 290
kPa 1.25 - 3.50 2.50 - 3.50
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
F45469 Rev. D (1019) Page 48 of 49
