baxter OV500 Series Service Manual

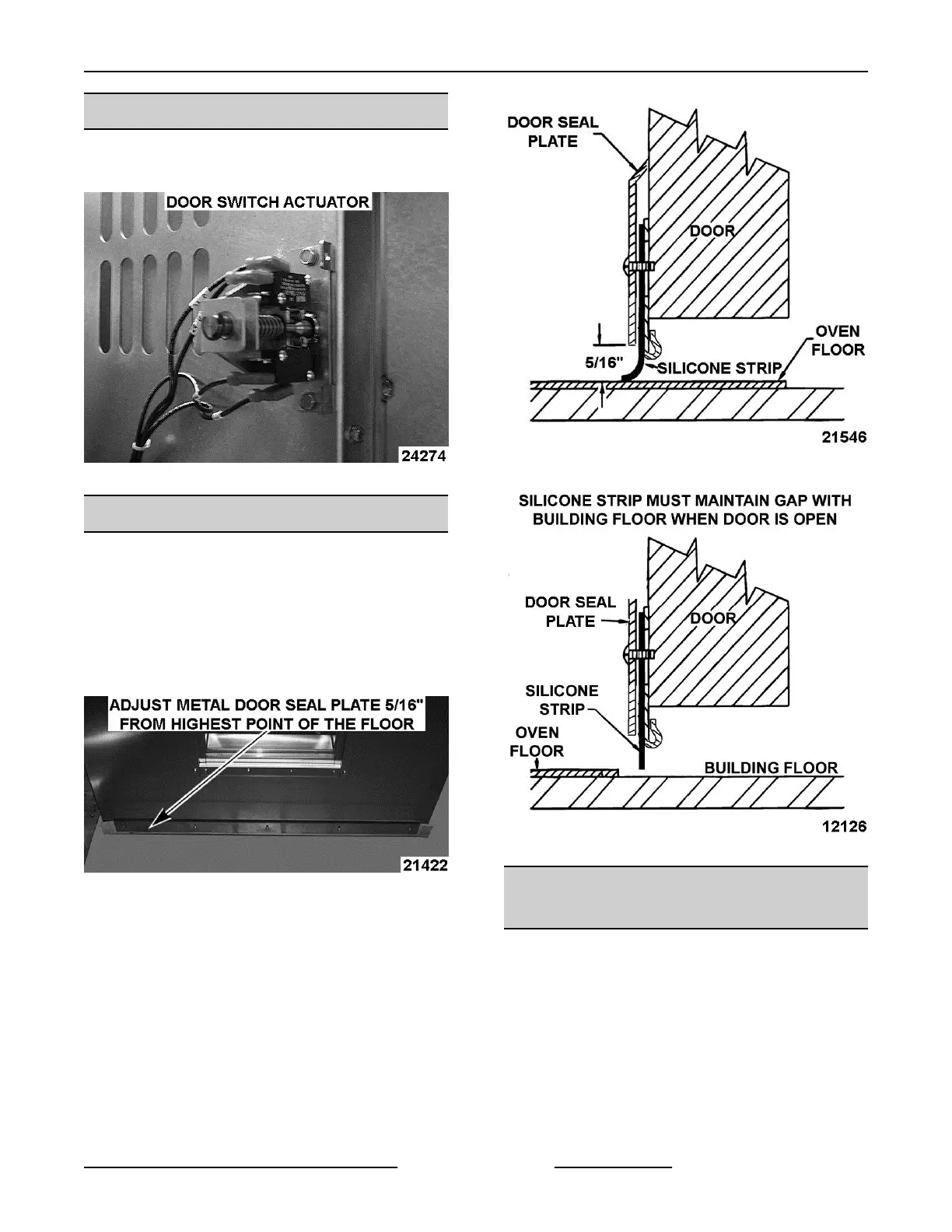

Fig. 81
DOOR SWEEP
1. Install door sweep.
NOTE: Door sweep shipped with door assembly.
A. Adjust the door sweep so the metal door
seal plate is 5/16" from the highest point on
the floor.
NOTE: Door sweep has slots for adjustment.
Fig. 82
Fig. 83
Fig. 84
RACK CARRIER - A & C STYLE
RACK LIFT
NOTE: After oven has been leveled.
1. Remove snap ring (C lift) or pin and washer (A
lift) from rotation shaft and save for carrier
installation. Cardboard tube can be discarded.
INSTALLATION INSTRUCTIONS
OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
Page 35 of 49 F45469 Rev. D (1019)
DOOR SWITCH ACTUATOR
1. Check door switch actuator for proper operation
and adjust switch as needed.
