baxter OV500 Series User Manual

– 26 –
Clean and Vacuum Components and Control/Burner Compartment Area (Gas Only)
1. Clean the control/burner compartment (Fig. 2) area of dust and/or lint accumulation.
2. Vacuum the control/burner compartment oor of dust and/or lint accumulation.
3. Gain access to the top of oven and clean dust that may have accumulated on top of circulation blower
motor (Fig. 3) and motor cooling fan.

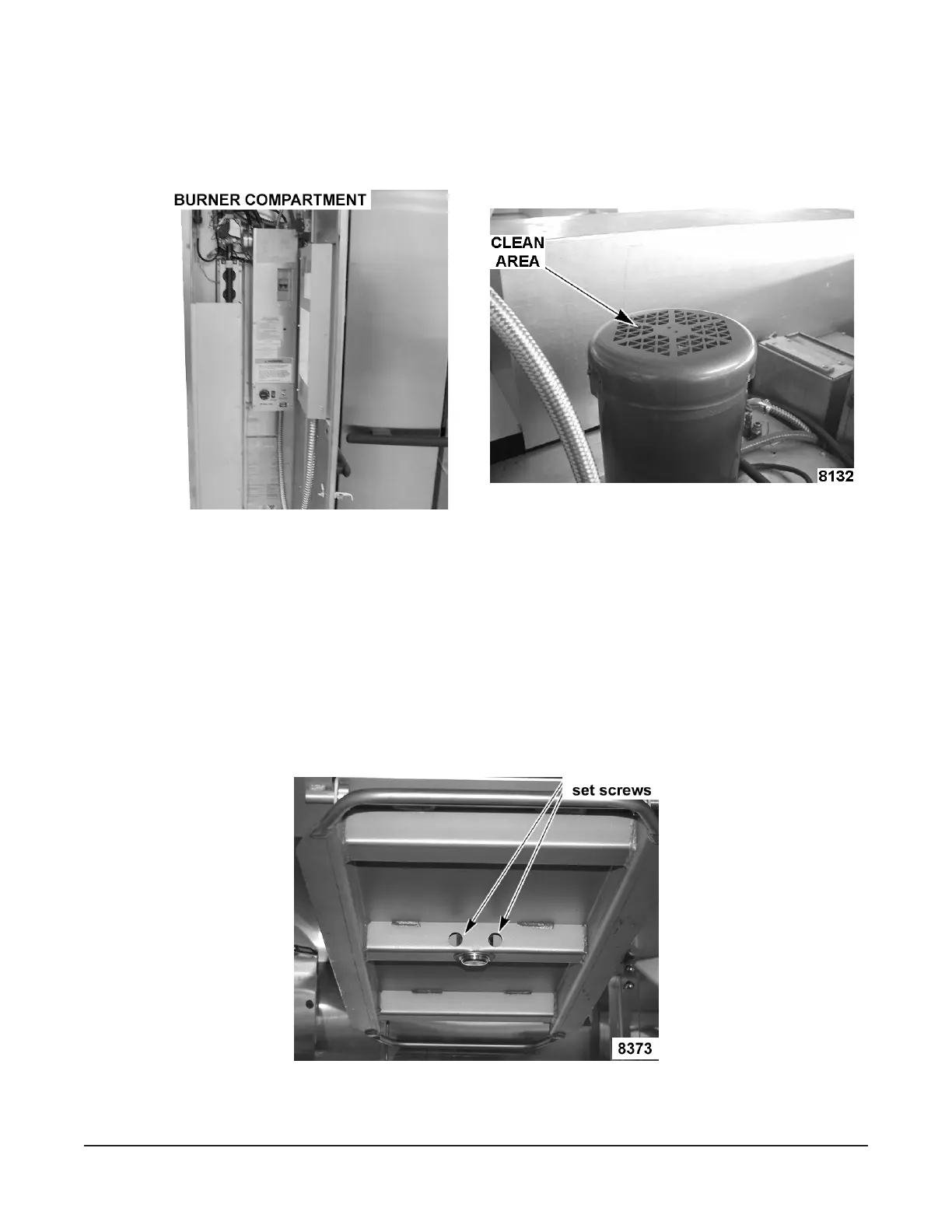

Fig. 2 Fig. 3
Rack Lift and Rotation Assemblies
1. Check rack lift assembly for proper operation.
A. Open door. Rack lift should lower to correct height of rack and be in forward loading position
to accept rack entry.
B. The oven rack should be easily rolled in and out of oven and the wheels completely o󰀨 the
oven oor when raised.
2. Tighten all set screws (4) in carrier (Fig. 4).
A. Check and tighten all set screws on carrier.
Fig. 4
