Inspect Door Components
1. Check loading door latch.
A. Check door gasket for good condition. If
door gasket needs replacement, contact
your local Baxter authorized service o󰀩ce.

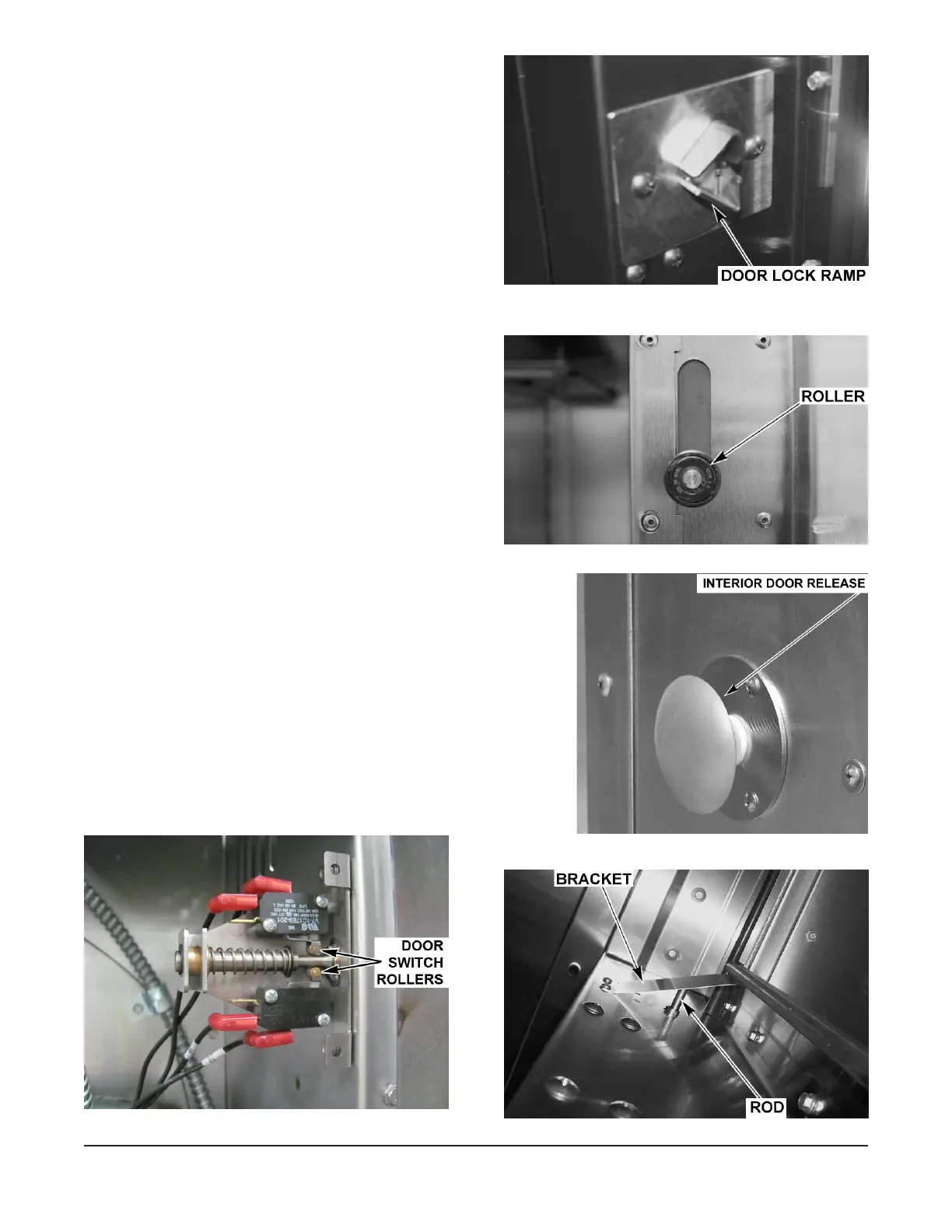

B. Check that the loading door lock ramps are
clean (Fig. 5) and rollers on the door move
up and down and spin freely (Fig. 6).
C. Adjust latch ramps in or out by loosening
the two screws. DO NOT REMOVE THEM.
Slide ramp in or out to loosen or tighten
door (Fig. 5).
D. Tighten screws.
2. Check door sweep.
A. The door sweep should hit the oor evenly
across door width, when door is in the closed
position.
B. Turn oven on.
C. If air (or steam) blows out from underneath
the door, door will need to be adjusted. If door
sweep needs replacement or adjustment,
contact your local Baxter authorized service o󰀩ce.
3. Check interior door release (Fig. 7) for proper operation.
4. Check door switch for proper operation.
A. When door switch actuator rod is in the open position
(door open), the door switch rollers should be
positioned on the small part of the rod (Fig. 8).
Fig. 7
Fig. 5
Fig. 6
Fig. 9Fig. 8
