34

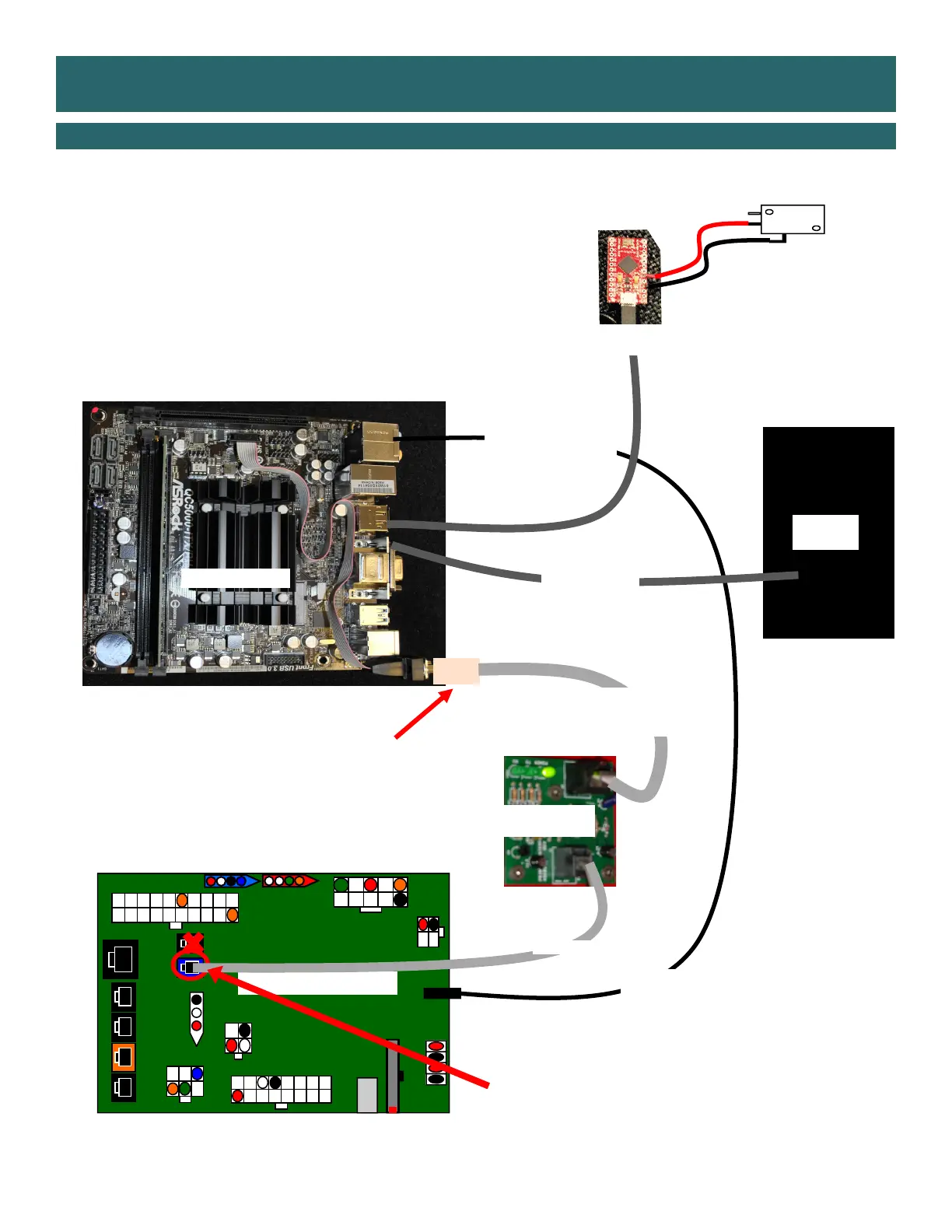

WIRING DIAGRAMS
MOTHER BOARD COMMUNICATION WIRING
A5CN1031
Adaptor to
plug cable into
Motherboard.
A5CB2204A
Interface Board
AANEWGEN1-PJ/RBN
AACE5914
Communication cable from
blue J16 on Newgen board
to J1 on Interface Board.
AAMB9A-SHD
A5CE5914
AACE5913
Communication cable from J2 on
Interface Board to Motherboard
55”TV
A5MO5500
A5CEAU010
Audio Jack from green
socket on Motherboard
to Newgen Board
A5CEAU010
Audio Jack from green
socket on Motherboard
to Newgen Board
A5CORD35A
HDMI Cable to
Monitor TV
Switch is wired
normally open.
Game Stop Switch
A5PB5900
Stop Switch Board
AACB5902
