HOW TO REPLACE MONITOR
The monitor wood frame will be attached to the monitor and the wood will
come out with the monitor as it is removed from cabinet.
The old monitor can now be removed from the cabinet.

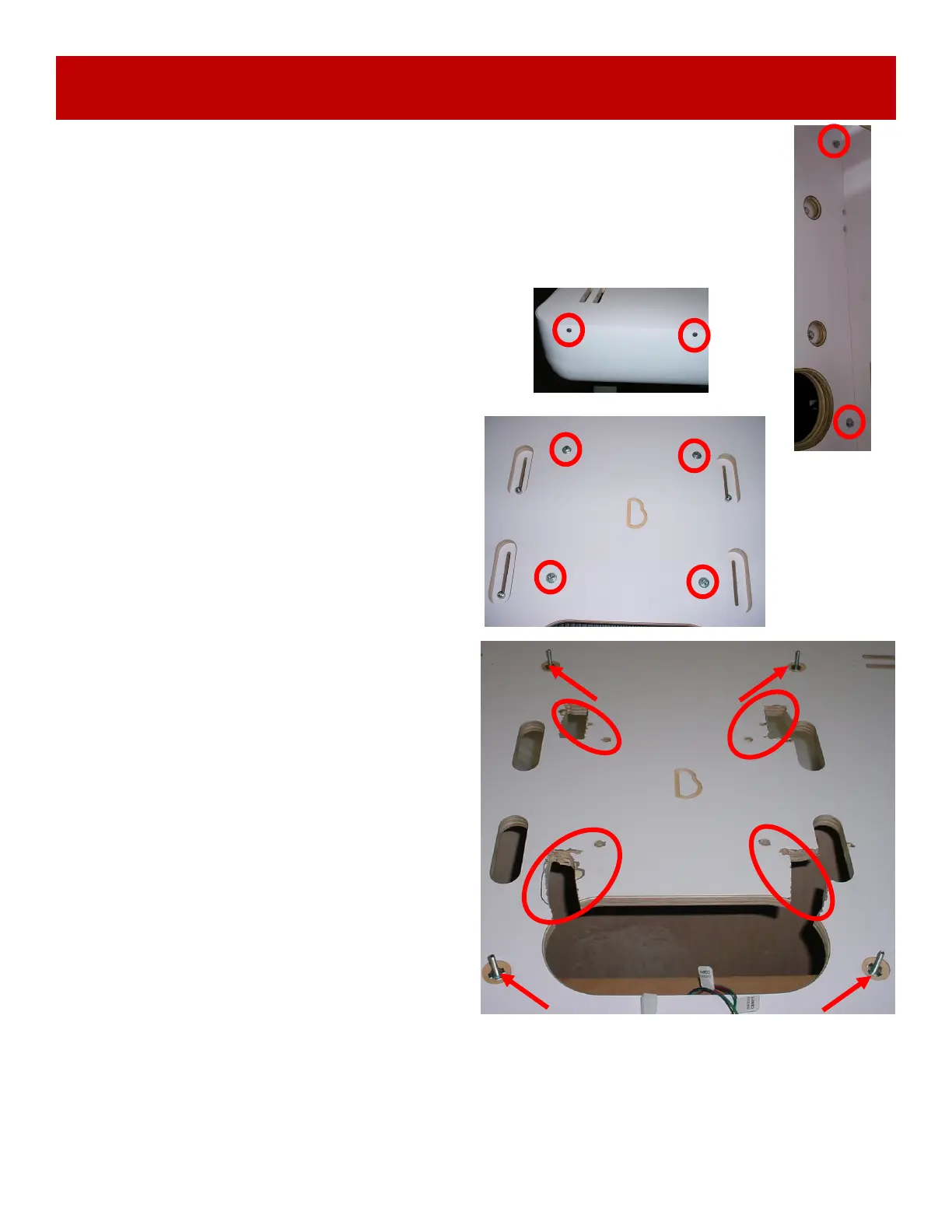

Using 2 people - Remove the 4 nuts & washers with a 7/16” wrench.
Carefully pull the wood off the front of the cabinet and place face down on a
soft flat surface. Save to be reinstalled later.
Remove the 12 small black screws on the white plastic
surround by using a # 2 Square bit screwdriver.
Save to be reinstalled later.
Remove the 4 bolts using a 7/16” wrench.
Save to be reinstalled later.
The large wood piece can now be removed.
Now, there are 2 options available to you to
continue this update:
Option 1: Use the included paper template to drill
holes in your existing large piece of wood.
Align template onto wood using the 4
corner bolts as points of reference.
Drill the 4 small holes using a 3/8 “ drill bit.
Cut out the new large slots using a jig saw.
It does not have to be pretty as this area is
completely covered.
Option 2: Use the included large piece of wood and swap all of the
components from the old piece of wood to the new piece.
Be sure to install the components exactly as was on the old board.
