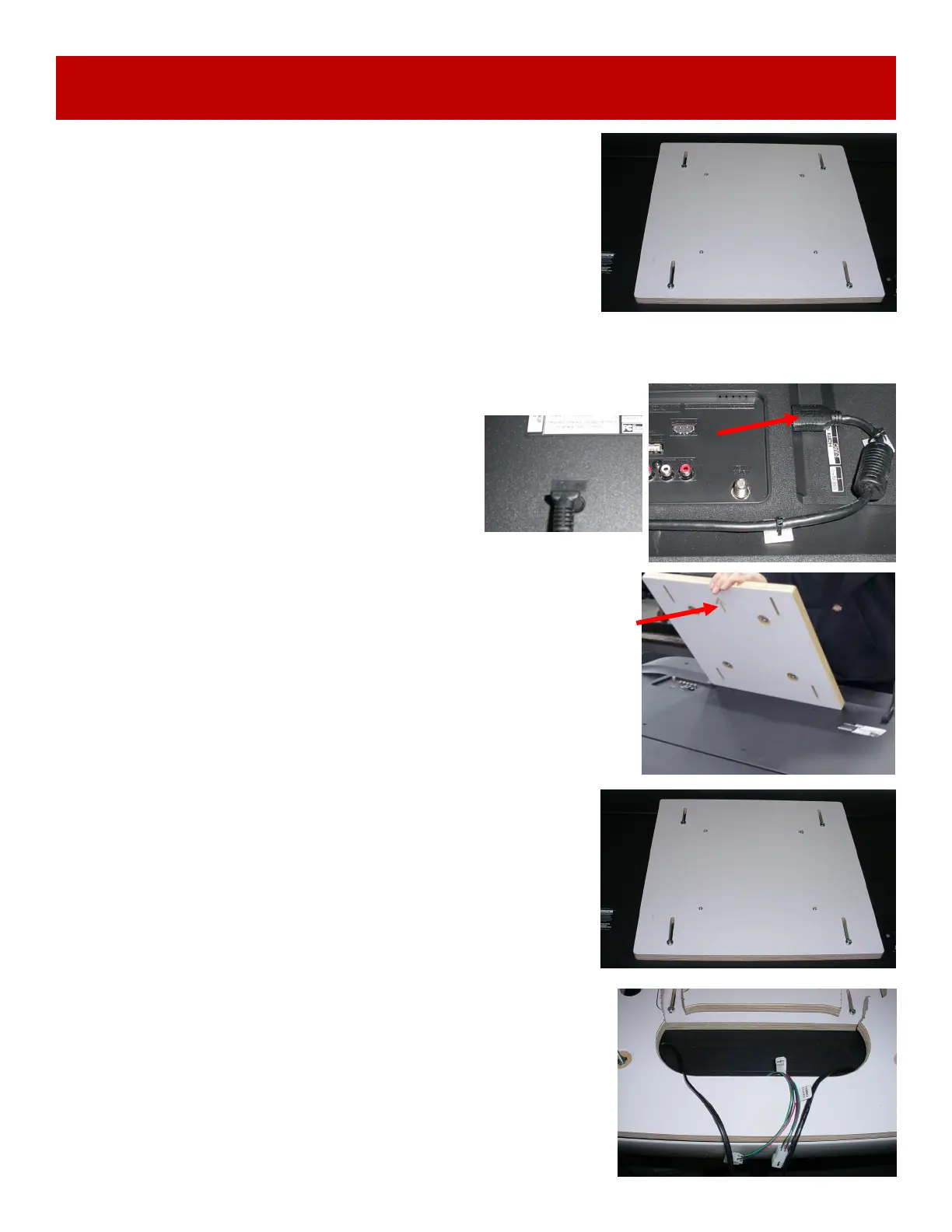

HOW TO REPLACE MONITOR
Remove the small piece of wood from the back of the monitor
using a Phillips screwdriver.
Save the bolts, but we will not use the spacers on the new wood
and new monitor.
Remove the HDMI cable from the back of the old monitor.
Pull off the sticky tabs to be reused on the new monitor.
Remove the old monitor from the surround.
Using 2 people:
Unbox the new monitor, remove the yellow energy guide sticker
from the screen, and remove the plastic protector from the edges
of the monitor.
Carefully place the new monitor face down in the
white plastic surround.
Plug the new power cord into the new monitor.
Plug the HDMI cable into the HDMI1 spot on the
new monitor.
Place the new small piece of wood onto the back of the new
monitor. Make sure the T-nut inserts are down against the monitor
and the arrow under the wood is pointing to the top of the monitor.
Install the 4 bolts using a Phillips screwdriver.
Do not use the old spacers - do not tighten fully until large piece
of wood is attached during the next step. Push wood piece
upward to the top of the monitor as shown, but leave loose to
adjust.
Install the modified large piece of wood on top of small piece.
LED light cables should be installed downward.
Make sure the large oval hole is toward the bottom of the monitor.
Make sure the power cord, HDMI cable, and light cables are
pulled through the large oval hole as shown.
