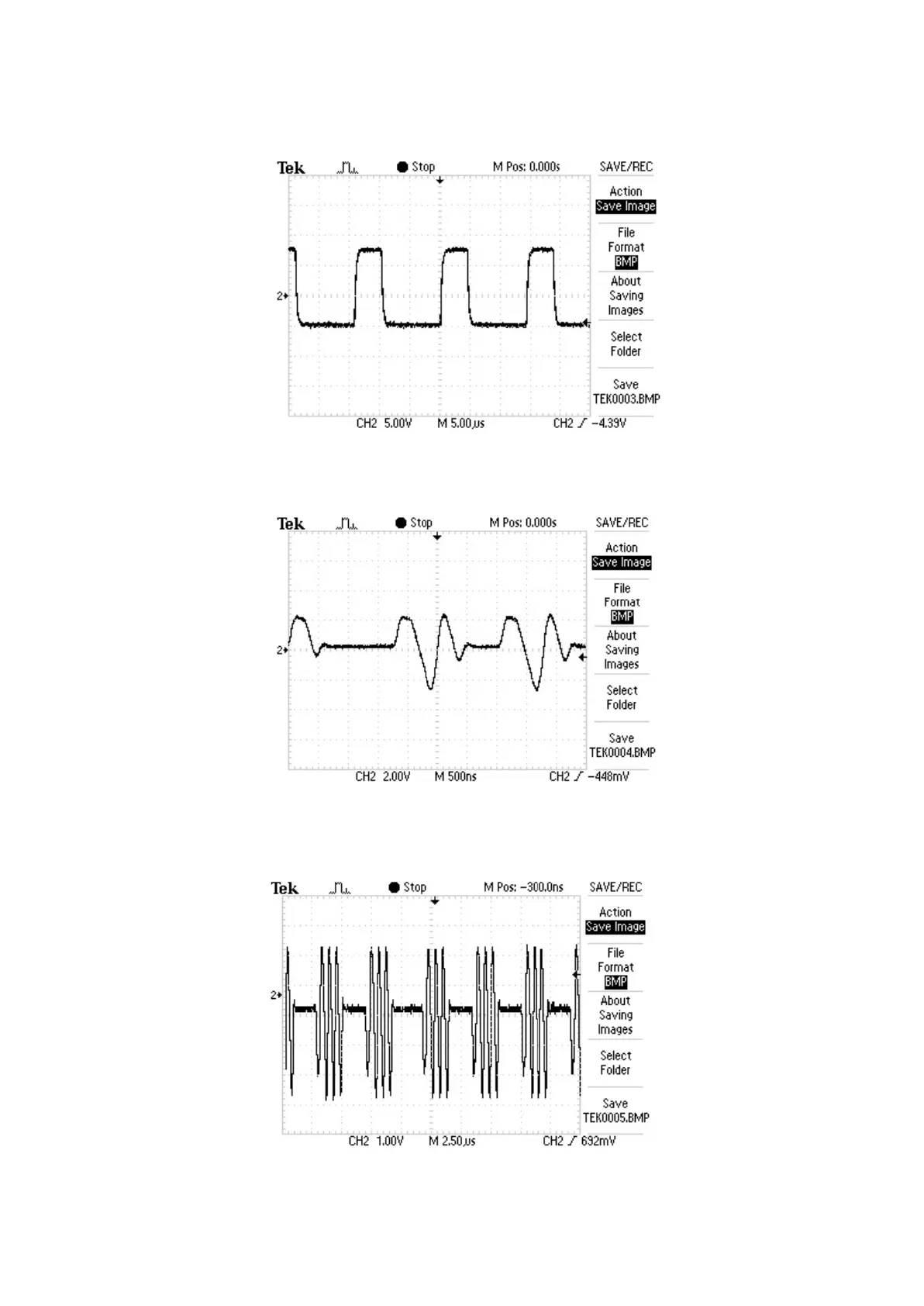

3. Waveform diagram for feed signal FMO(when pick up has feed motion).
4.Waveform diagram for traction signal TRO(when pick up has traction motion).
5.Waveform diagram for focus signal FOO(when pick up has focus motion).
Vpp=13.4V
Vpp=4.2V
Vpp=5.1V
