BCM Advanced Research MX67QMD - Page 23

2-11
MX67QMD

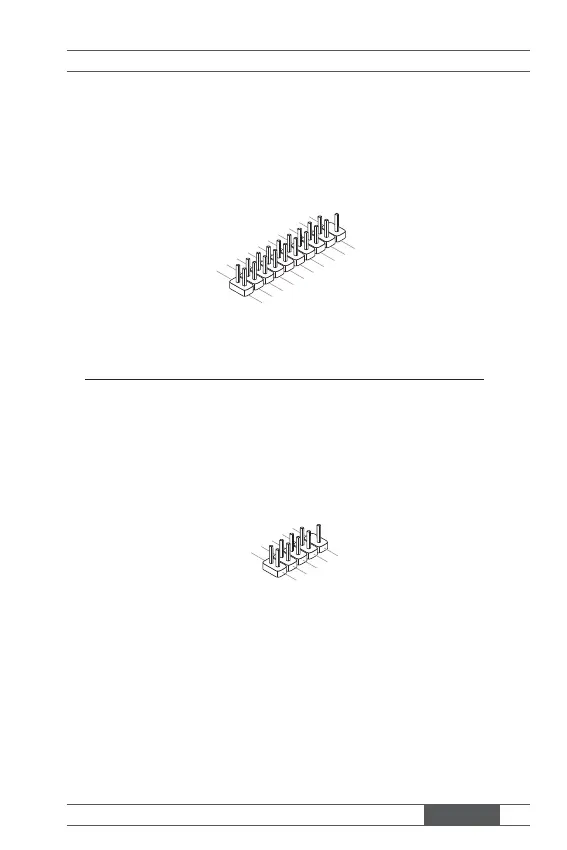

GPIO Pinheader: JGPIO1
This connector is provided for the General-Purpose Input/Output (GPIO)
peripheral module.
20.KEY
19.GND
16.GPIO Output 6
14.GPIO Output 5
12.GPIO Output 4
11.GPIO Input 4
1
8.GPIO Output 7
13.GPIO Input 5
15.GPIO Input 6
17.GPIO Input 7
1.VCC3
2.VCC5
8.GPIO Output 2
6.GPIO Output 1
4.GPIO Output 0
3.GPIO Input
0
10.GPIO Output 3
5.GPIO Input 1
7.GPIO Input 2
9.GPIO Input 3
Front Panel Pinheader: JFP1
This front panel connector is provided for electrical connection to the front
panel switches & LEDs and is compliant with Intel Front Panel I/O Con-
nectivity Design Guide.
1.HDD_LED
+
3.HDD_LED-
10.No Pin
5.Reset_SW-
7.Reset_SW+
9.Reserved
8.Power_SW-
6.Power_SW+
4.Power_LED-
2.Power_LED+
