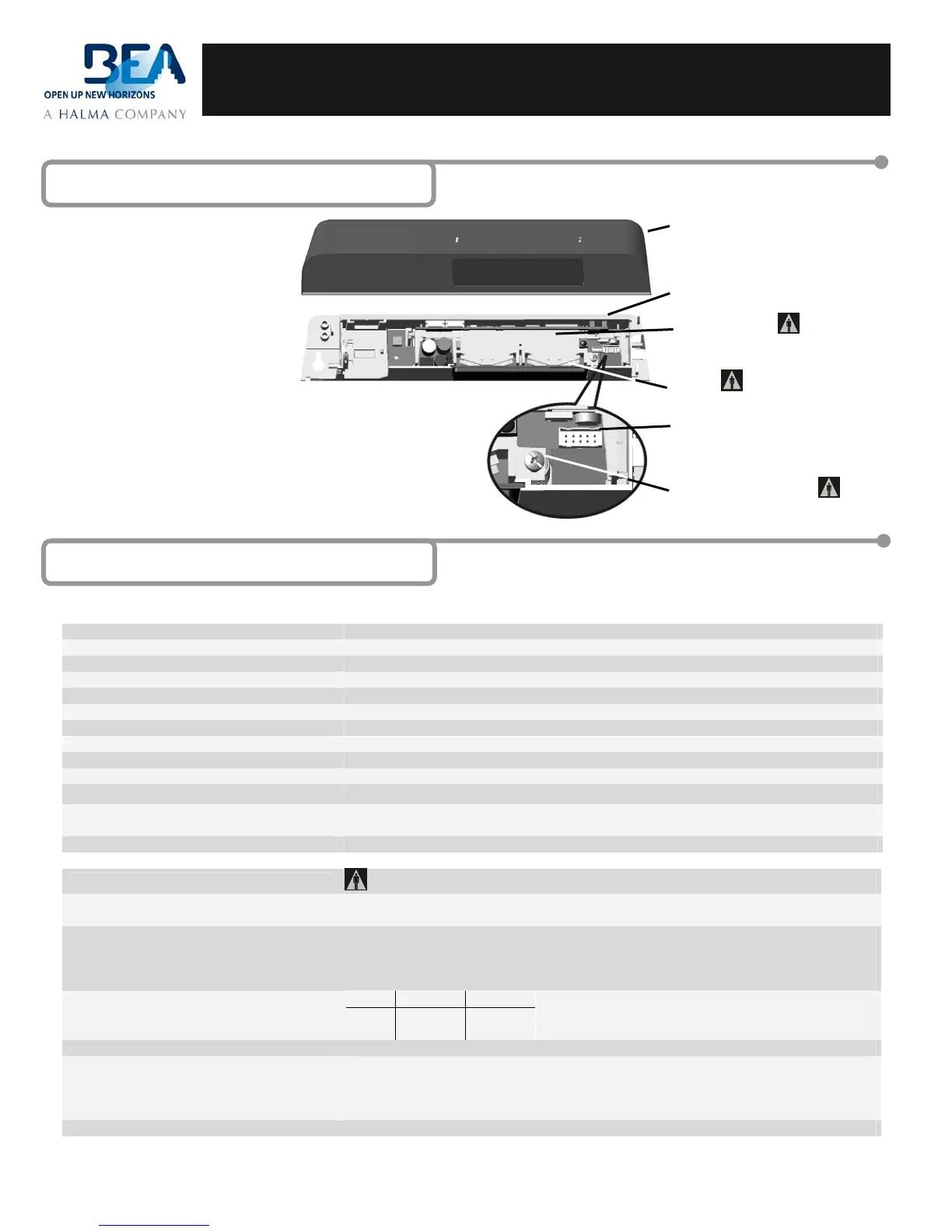

BEA IRIS - Technical Specifications

75.5159.09 20090115 2/10
IRIS / IRIS-I
USER GUIDE
Cover
Push-Buttons
IR-Presence sensor
IR-Prism
Main Connector
IR curtain adjustment screw
Supply voltage : 12V (– 5%) to 24V (+10%) AC/DC
Mains frequency : 50 - 60 Hz
Power consumption : < 3 W
Mounting height : 6’8” TO 13’
2-color LED : RED (presence detection) – ORANGE (signal saturation, error)
Temperature range : -22°F to +131°F
Degree of protection : IP54
Norm conformity : EMC 89/336/EEC
Dimensions : 10.3” (L) x 2.2”(H) x 1.43” (D)
Weight : 8 oz.
Housing material : ABS + LURAN S
Minimum length of cable : 10’ (3 m) - 9 conductor (10IRIS)
: 30’ (9 m) - 9 conductor (10IRIS-I)
Range of Remote Control : 16’
PRESENCE SENSOR
Detection mode Presence
Response time: < 128ms
Technology Focused active infrared and self-monitored microprocessor
Spot diameter (standard): 4” max
Number of spots: 24 or 12 spots by curtain
Number of curtains: 2
Detection field
(@ 7’ Ht.)
Width Depth
Wide 6’6” 13.75”
Narrow 3’3” 13.75”
Angle From - 4° to + 4° (adjustable)
Output specification Relay:
Max. contact voltage: 42V AC/ DC
Max. contact current: 1A (resistive)
Max. switching power: 30W (DC) / 60VA (AC)
Output holdtime 1s (fixed)
