3-1
MEGA3 NFPA Medical Gas Notification System
4107 9016 59.02
3.0 Wiring Schematics
3.1 NFPA Master Wiring Diagram
Notes:
1. MAIN DISCONNECT PROVIDED BY OTHERS
2. FIELD POWER WIRING TO BE COPPER RATED FOR 75°C MINIMUM
3. FIELD SIGNAL WIRING TO BE MINIMUM 22AWG
MULTI-CONDUCTOR CABLE MUST BE TWISTED PAIR TYPE WITH SHIELD
TOTAL CIRCUIT LENGTH NOT TO EXCEED 10,000’ & MAX. 1K OHM
RESISTANCE
4. -- -- -- -- INDICATES FIELD WIRING OUTSIDE OF BOX.
5. INPUTS FROM DRY NORMALLY-CLOSED CONTACTS FROM SOURCE
EQUIPMENT OR LINE PRESSURE SWITCHES.
6. RELAY OUTPUT CONTACTS RATED 3A / 30VDC MAX.
7. SEE MODULE LABEL TO SET MODULE ADDRESS (POSITIONS 2,3, & 4).
VERIFY USING TABLE 1.
8. SET ADDRESS SWT POSITION 1 TO “ON” FOR LAST MODULE IN CHAIN
ONLY.

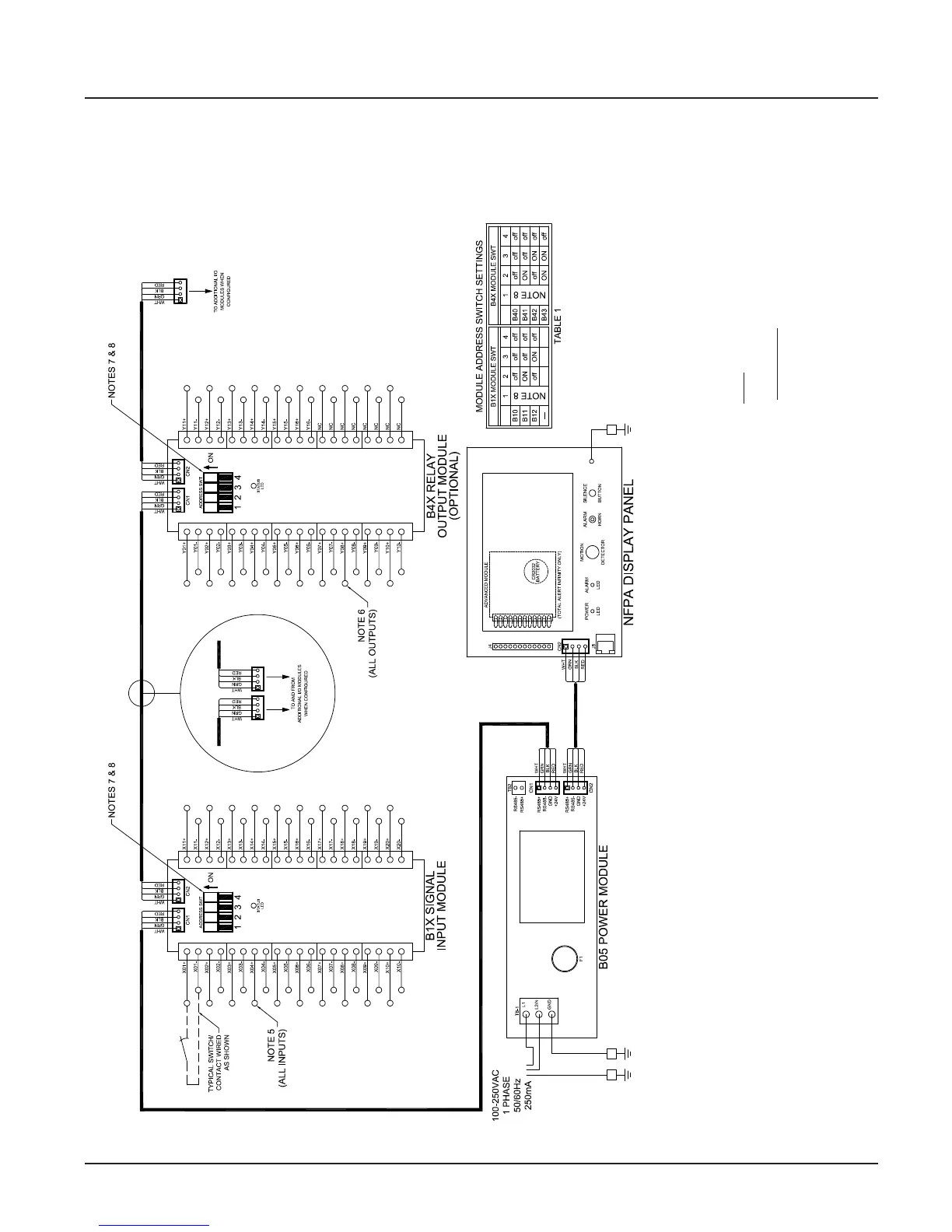

Figure 32: Wiring Diagram for NFPA MEGA3 Master Alarm
FACTORY WIRED
CHASSIS GROUND
ENCLOSURE
GROUND SCREW
To Next Page
