MEGA3 NFPA Medical Gas Notification System
4107 9016 59.03

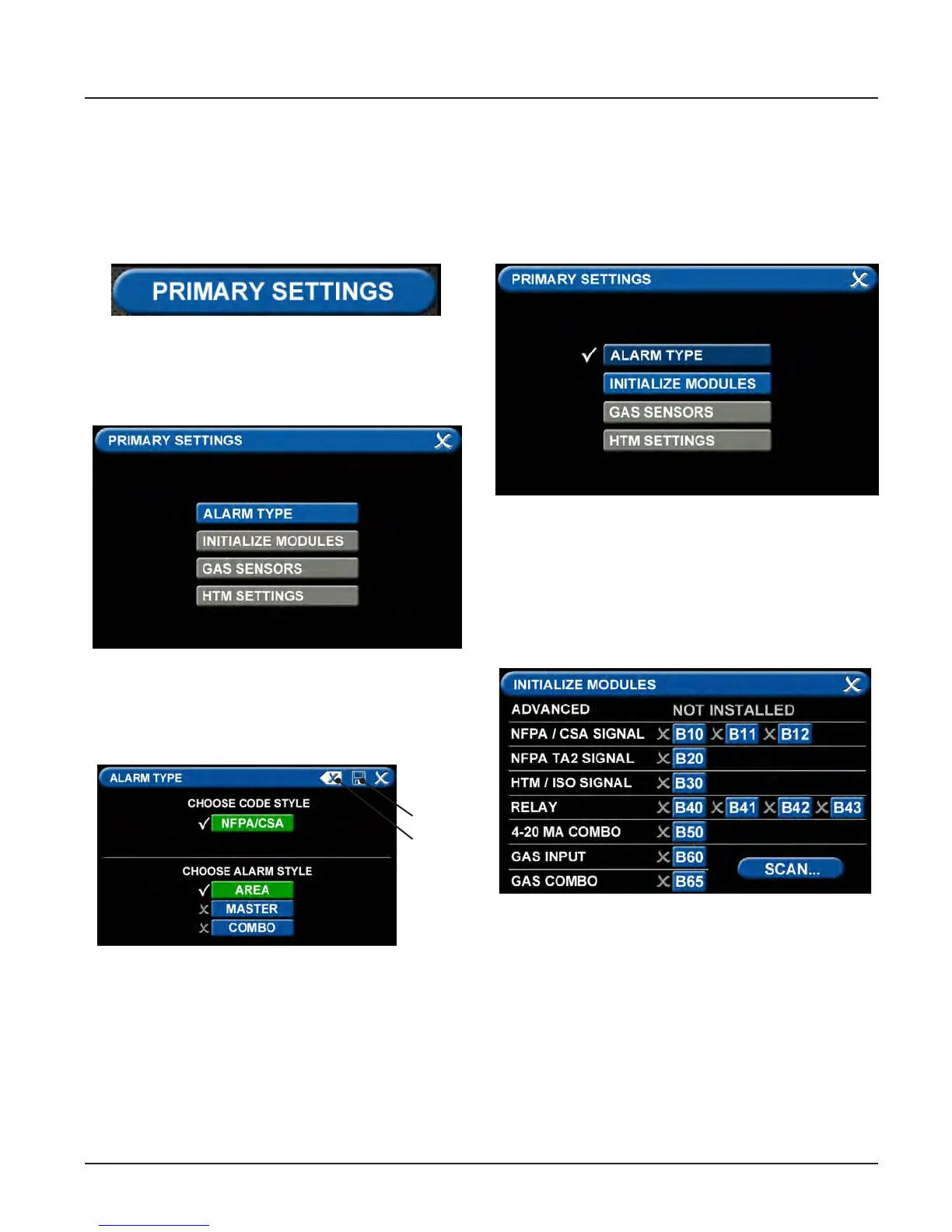

Figure 67: Alarm Type Tab
Figure 68: Choosing Code and Alarm Styles
Save
Erase
Figure 69: Initialize Modules Tab
Figure 70: Initialize Modules Screen
Primary Settings Tab
The PRIMARY SETTINGS tab allows you to
select the alarm type, initialize boards, and
select gas inputs.
• Touch the PRIMARY SETTINGS tab
Alarm Type Tab
The ALARM TYPE screen defines which type
of alarm will be displayed and drives later
setup functions.
• Touch the ALARM TYPE tab.
• Choose a code style based on code re-
quirements.
• Touch the AREA tab
• Touch the Save button when you see
checks beside your selections to save the
settings and return to the PRIMARY SET-
TINGS screen.
Note: To clear your selections, touch the
Erase button.
Initialize Modules Tab
The PRIMARY SETTINGS screen will now
display with ALARM TYPE checked, INITIALIZE
MODULES active, and the other tabs grayed
out.
• Touch the INITIALIZE MODULES tab.
The INITIALIZE MODULES screen is used to set
up the boards that are installed. The boards
function as the input/output hardware of the
alarm.
