1. LAN Setting
• IP Address: Must be unique in the LAN
(Default IP = 192.168.68.90)
• Mask: Default mask = 255.255.255.0
• Gateway: Dependant on the IP address
(Default Gateway = 192.168.68.1)
• DNS: Typically 8.8.8.8
• Server IP: Assigned IP Address of management
PC running the corresponding software.
• NTP: Network Time Protocol -
(Default = ntp.nasa.gov)
2. Device Setting
• The building and unit no. should be the same of
corresponding indoor monitor.
• No.: Outdoor panel no. (1-9) Maximum 9
outdoor panels.
• System password: Change the online login
password (Default = 123456)
• Panel mode: Choose between wall panel or
personal panel.
• Ring back: Choose the tone to playback at
panel.
3. Access Setting
• Unlock timeout: Set the door open for 1-9s.
• Unlock delay: Set the delay from monitor to
door for 0-9s.
• Unlock Password, Elev Refer, Admin Card are
disabled (N/A)
4. VOIP Setting
• Input Relevant SIP Server Information
(See A9K page for default addresses and eld
descriptions)
5. Forward (Call Transfer)
• Call Indoor Monitor: Monitor can be assigned
an IP address to call if there is no answer
within 25 seconds. Input room No. of indoor
monitor then input sip account address.
(Example: sip:1000@yoursip.domain.com)
25
Features & Set-Up
Single-Button Door Setup Cont’d
(NT-IP-DRS1 & NT-IP-DRG)
One-Button Reader Setup (NT-IP-DRCR)
Press call button to call assigned
monitor.
Swipe programmed ID Card at panel
to unlock door.
To access the online settings menu,
type in the IP address in a browser
window on a network-connected PC.
(Default IP = 192.168.68.90)
All programming functions are the same as other
single-button panels, with the exception of the access
settings to allow for card reader programming. Within
the online menu, type in last 8-digits on the ID card/
fobs under admin to assign your admin card. If admin
card # is unknown, type 0, hit “submit”, then swipe
your desired admin card.
To program fobs, swipe the admin card at the reader,
swipe fobs to program, then swipe the admin card
once more.

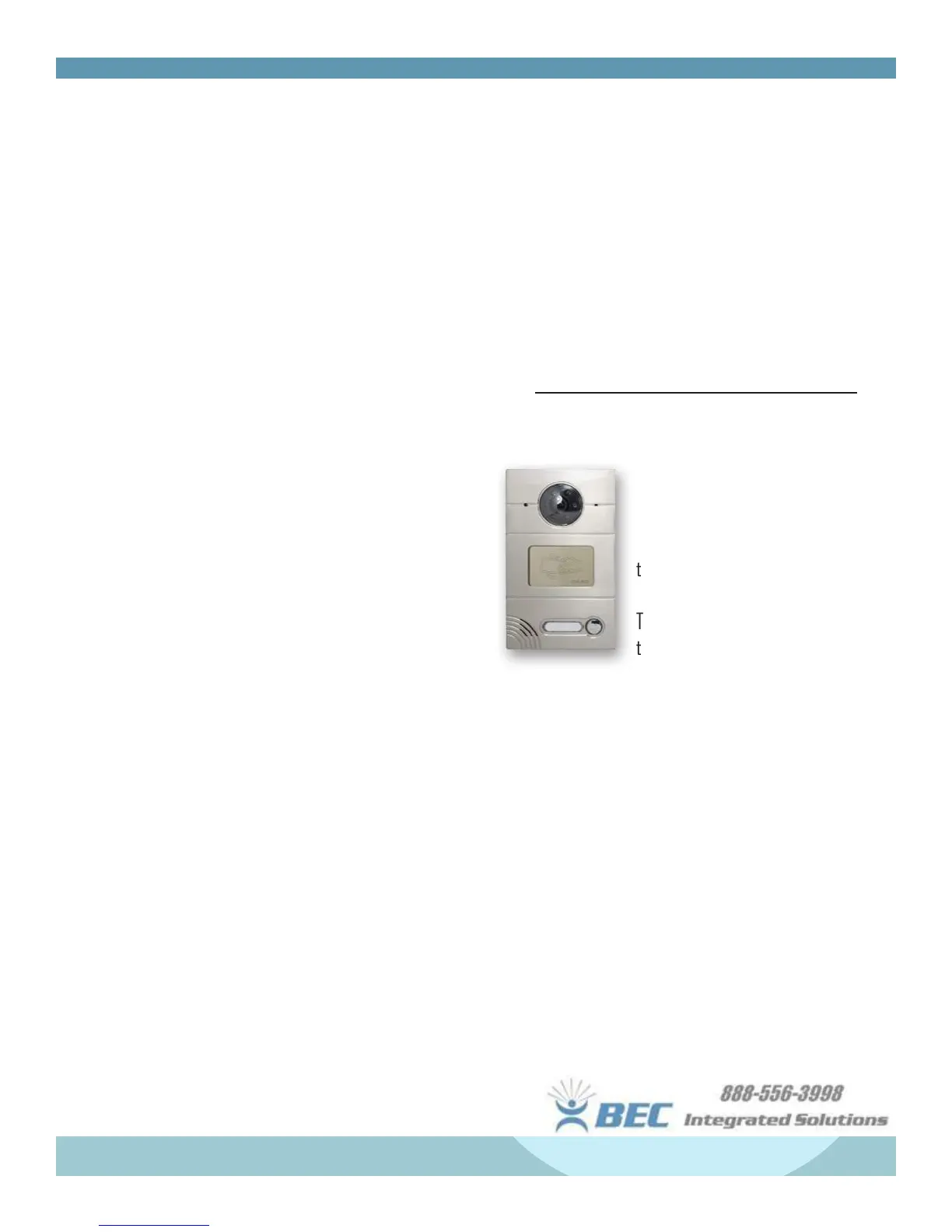

NT-IP-DRCR
To Next Page
