A Note on Lock Wiring
All IP door panels are designed to operate an electric strike, available as a “slim-style” 12vDC strike plate
from BEC, however any type of lock can be used if wired to the dry contacts on an Altronix 6062 relay, also
available from BEC. You must include an external power source for your lock. If you need assistance
with lock wiring, please contact either BEC technical support, or your lock manufacturer for further support.
6

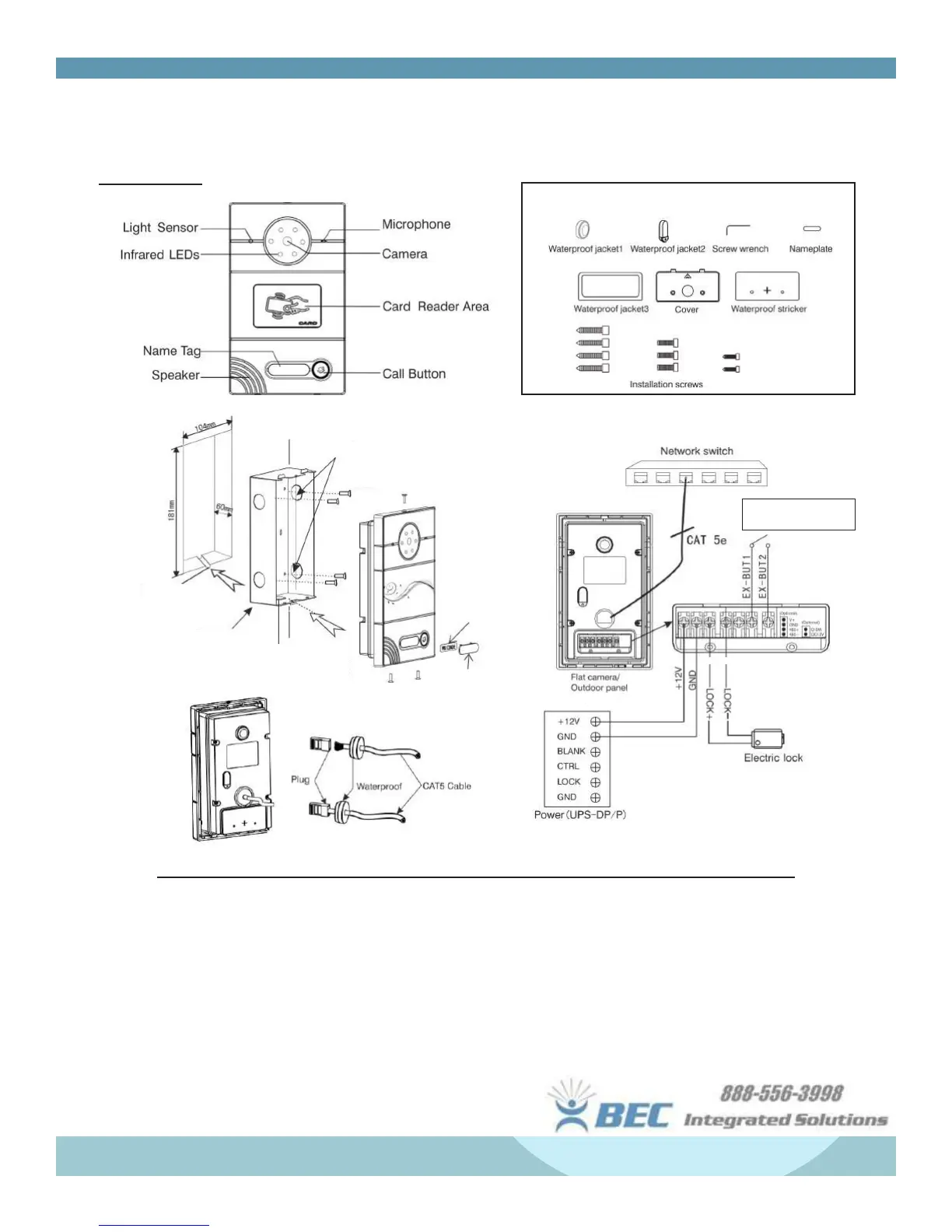

Installation Cont’d
Parts Included:
NT-IP-DRCR
Name Tag
Screw Holes
Back-Box
Drain
Punch out bottom hole rst
for water drainage
Name Tag
Cover
To indoor
building-exit button
C
NC
NO
To Next Page
