Installation Cont’d

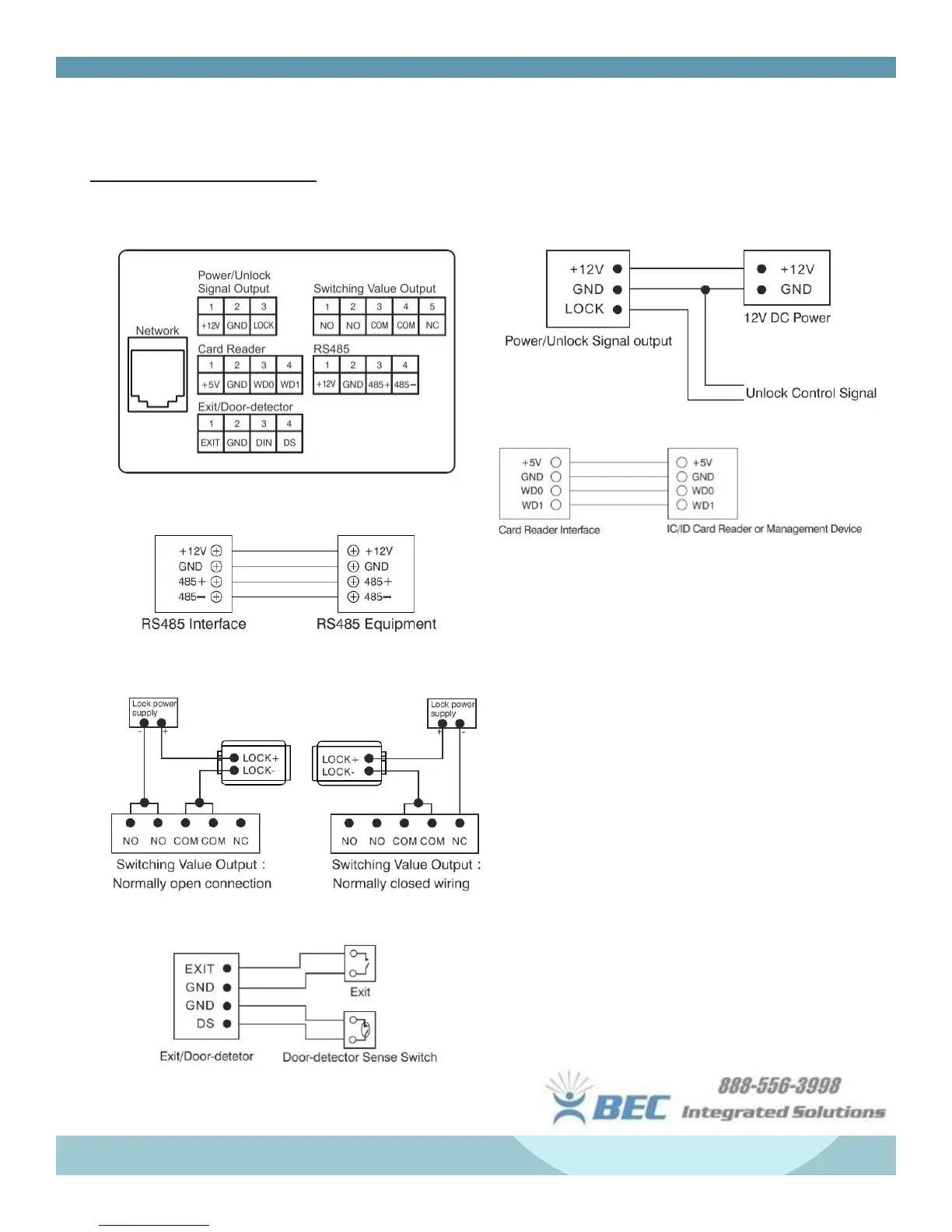

A9K Connections & Wiring
Rear
Connections
Standard Lock Control Signal
RS485 Interface
Card Reader Interface
Switching Value Lock Wiring
Door Detection & Exit Switch
Notes:
• The standard control signal can be used with an
Altronix 6062 relay to handle the lock connections
with any lock 9-24vDC or AC.
• The switching value connection supports a max cur-
rent of 3.5A and requires an external PSU for your
lock. When the outside power is off, the NO and NC
terminals are opposite from normal operation.
• The optional RS485 header enables connections be-
tween compatibile equipment. Capable of 12v/100mA
power output.
• Exit/Door Detection header allows for an internal
exit switch and a sensor to know when the door is
open or closed.
• The card reader interface can read keyfobs from a
standalone controller. If unit has reader built-in, it
cannot be used.
