Assembling and disassembling the plug-in connecting cable
Assembling the plug-in connecting cable

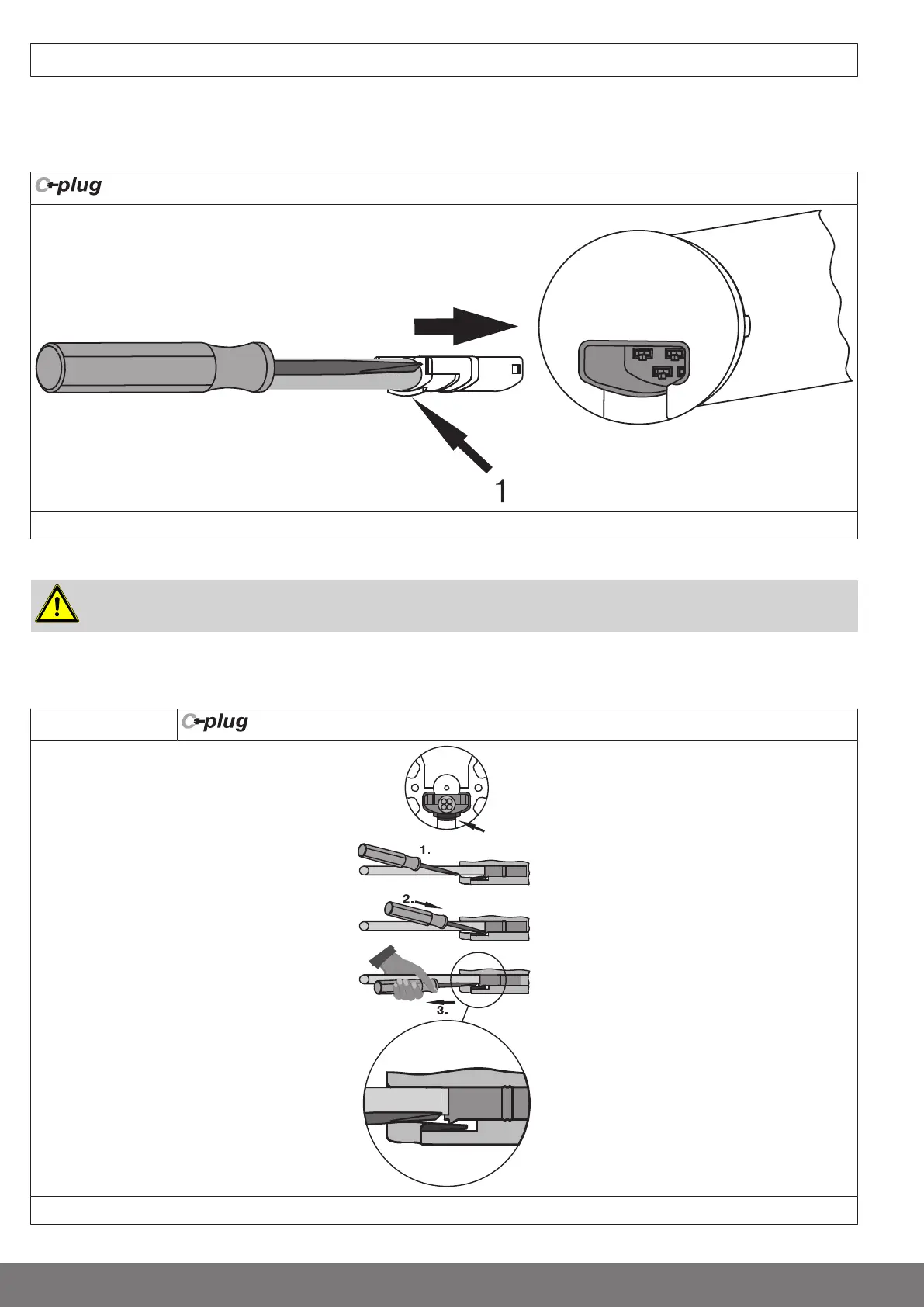

Insert the dead connecting cable into the drive head until the locating lug clicks into place in the drive. If necessary, use a suitable
flathead screwdriver to assist with insertion. Set the screwdriver into one of the two plug grooves provided for this purpose.
Check that the cable is properly engaged.
1 = locating lug
Disassembling the plug-in connecting cable for tubular drives dia. 35.
Caution
Prior to disassembly, the power supply to the connecting cable must be disconnected.
On drives with a diameter Ø35, insert a suitable flathead screwdriver between the locating lug and the snap-in pin, so that the
snap-in pin releases the locating lug from the plug.
Now you can pull out the connecting cable along with the flathead screwdriver.
Ø35
A = snap-in pin
