Disassembling the plug-in connecting cable for tubular drives dia. 45 and dia. 58
Caution
Prior to disassembly, the power supply to the connecting cable must be disconnected.

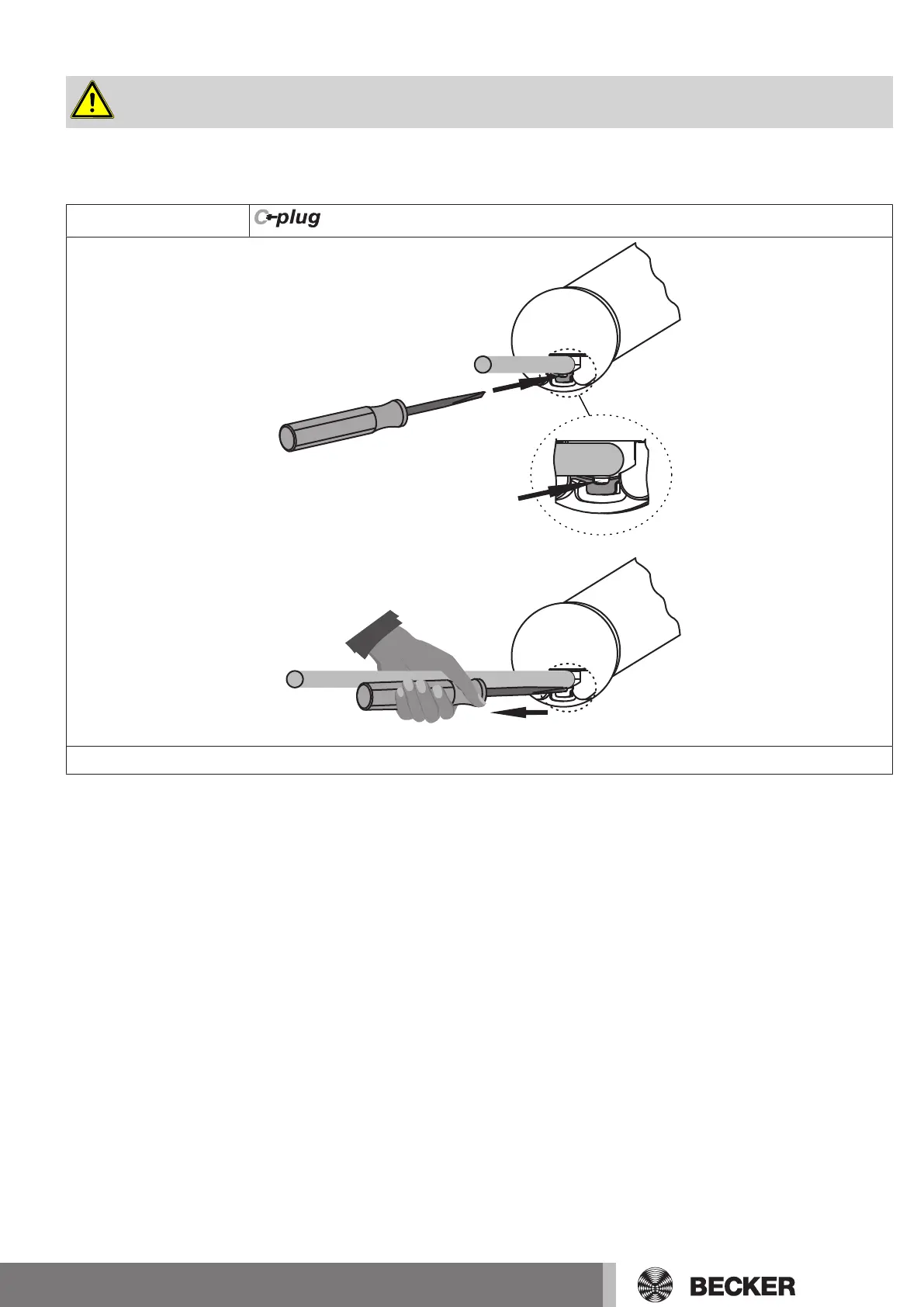

On drives with a diameter Ø45 or Ø58, insert a suitable flathead screwdriver right into the recess of the locating latch, so that the
latch releases the locating lug from the plug.
Now you can pull out the connecting cable along with the flathead screwdriver.
dia. 45 and dia. 58
A = locating latch
