6
y Carefully inspect the chimney or exhaust vent
system.
y Make sure it is properly sized and in good working
condition.
y Follow the instructions supplied by the appliance
manufacturer.
y The installation must strictly comply with all
applicable codes, authorities having jurisdiction and
the latest revision of the National Fire Protection
Association Standard NFPA 31 for the installation of
chimneys and vent sizing, (or CSA-B139 and CSA-
B140 in Canada).
y Regulation by these authorities take precedence
over the general instructions provided in this
installation manual.
Fire, Smoke & Asphyxiation
Hazard
piece of broken tile wedged in the chimney should
be removed.
5. No other appliance connection should be made to
the same ue pipe.
6. The ue pipe should have an upward pitch toward
the chimney of at least 1/4” per foot of length. It
should t tightly and should not project into the
chimney.
7. Any leakage between tiles, around clean-out doors,
or around the vent pipe should be sealed.
Insulated stainless steel chimney liners
The new designs of high efciency oil furnaces and
boilers in conjunction with ame retention oil burners
are more efcient. One result of increased efciency is
lower ue gas temperatures. As ue gases rise in the
chimney, they will cool and condense when they reach
the dew point. The condensation will mix with the sulphur
in the ue gases creating sulphuric acid. The acid will
attack the chimney mortar, brick and clay liners causing
corrosion, deterioration and blockage of the chimney.
Eventually the blockage could prevent exhausting the
ue gases. Instead, the ue gases could vent out the
barometric damper into the living space.
Therefore, it is strongly recommended that an approved
insulated stainless steel liner be installed.
○ For those installations not requiring a chimney, such
as through-the-wall vented appliances, follow the
instructions given by the appliance and power venter
(if used) manufacturers.
Inspect Chimney or Direct Vent System
1. Starting with minimum gph ring rate, the minimum
size recommended is 6” ue pipe with 8” X 8”
inside chimney, unless specied otherwise by the
appliance manufacturer.
2. A chimney ue shall extend at least 3 feet above
the highest point at which the chimney comes in
contact with the roof, and not less than 2 feet above
the highest roof surface or structure within 10 feet
horizontally of the chimney. Refer to Figure 4.
3. Any accumulation of soot or debris in chimney
offsets should be removed.
4. Any obstructions such as a protruding joint or a
Section: Inspect/Prepare Installation Site

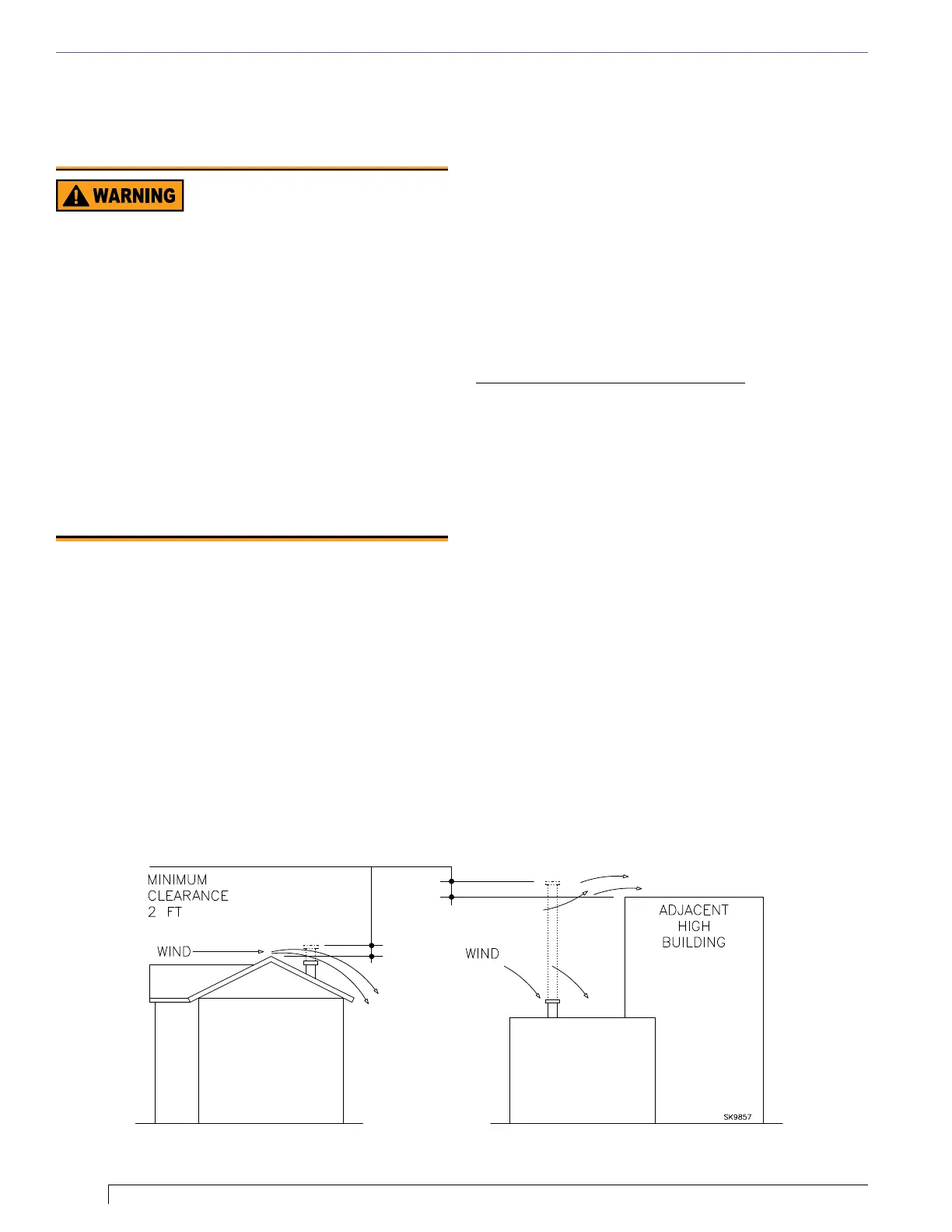

Figure 4 – Chimney Design - Above the Roof
NOTE: Correct chimney design is shown by dotted lines. Incorrect chimney design, as shown by the solid lines, may
result in down-drafts.
Inspect/Prepare Installation Site
