Beckett SF Series User Manual

19
SF/SM Burner Manual
Section: REPLACEMENT PARTS
# Part No. Description
1 Burner Housing Assembly with Inlet Bell
2 3215 Air shutter, 10 Slot
3 3819 Bulk Air Band, 10 Slot
4 3493 Nozzle-line Escutcheon Plate
5
Specify **
3399
Unit Flange or
Square Plate
3416 Air Tube Gasket (not shown)
6 2139 Hole Plug - Wiring Box
7
2900U
2364U
Drive Motor, 1/5 HP (SM Models)
Drive Motor, 1/4 HP (SF Models)
8 2383U Blower Wheel (6-1/4 X 3-7/16)
9 2433 Flexible Coupling (Fits 5/16” pump shaft)
10
2591U
21188U
Fuel Units SF only
Single-Stage ‘A’
Two-Stage ‘B’
2184404U
2460
Fuel Units SM only
CleanCut
Single-Stage ‘A’
-- 2256 Pump outlet tting (not shown)
-- 482 Pump holding screws (not shown)
# Part No. Description
13 5394
Connector tube assembly, pump to
nozzle line
14 51824U Igniter and Base Plate
14 2289U Ignition Transformer (10,000 V/23mA)
15
7505A/7575A Replaces R7184A - Interrupted Ignition
7505B/7575B Replaces R7184B - Pre-time
7505P/7575P
Replaces R7184P - Pre and Post-time
(7575P used for all SM burners)
16 5770 Electrical Box
17 7006U Cad Cell Detector
18 Specify ** Air Tube Combination
19
5780 Electrode Kit - F Head up to 9”
5782 Electrode Kit - F Head over 9”
20
5432
3616
Universal Flange w/ Gasket
Gasket Only
21 3666 Splined Nut
22 2182602U Blocking Oil Solenoid Valve
23 5685 Base Pedestal Kit
** Contact your Beckett Representative for part number and pricing.
For best performance specify genuine replacement parts

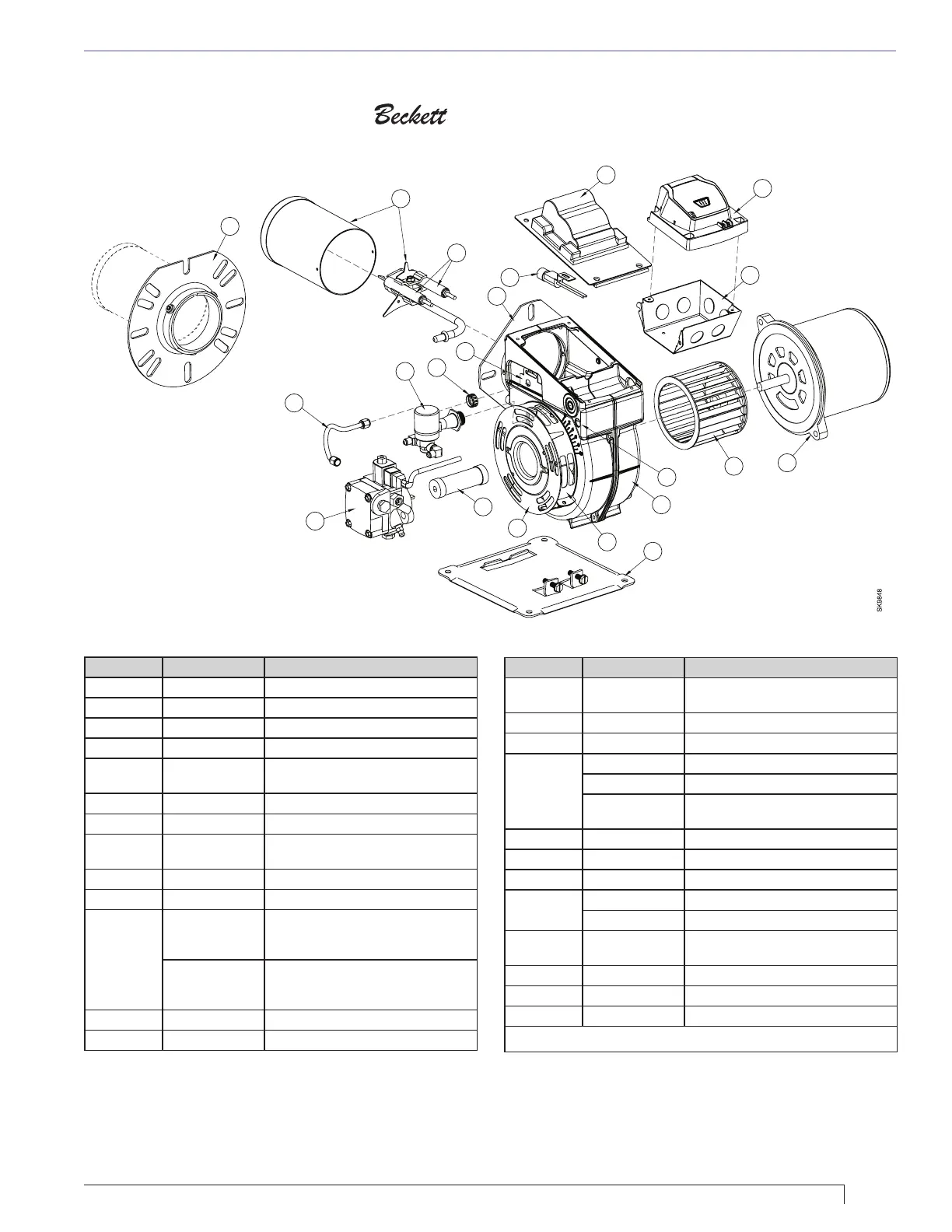

Replacement Parts
20
18
19
14
15
16
17
5
6
1
23
8
7
3
9
10
2
13
21
22
4
