Section: BURNER CONTROLS
Burner Controls
SM burners shipped less Primary Control from RWB
shall require Model 7575P Primary Control be installed
with valve-on delay and motor-off delay to meet CSA
B140.0 per wiring in Figure 9B.
GeniSys 7505 & 7575
SM burners shall use the 7575P only.
Fire or Explosion Hazard
Can cause severe injury, death, or
property damage.
y The control can malfunction if it gets wet, leading to
accumulation of oil or explosive oil vapors.
y Never install where water can ood, drip or condense
on the control.
y Never use a control that has been wet - replace it.
Features
○ Thermostat / Operating and Limit Control Compatible
○ Welded Relay Protection
○ Limited Recycle
○ Limited Reset
○ 3 Status Lights
○ Valve-On Delay / Motor-Off Delay (Field programmable
with 52082 Contractor Tool)
○ 15 Second Lockout Time
○ Interrupted or Intermittent Duty Ignition
○ Technician Pump Priming Mode
○ Disable Function
○ Communication Port(s)

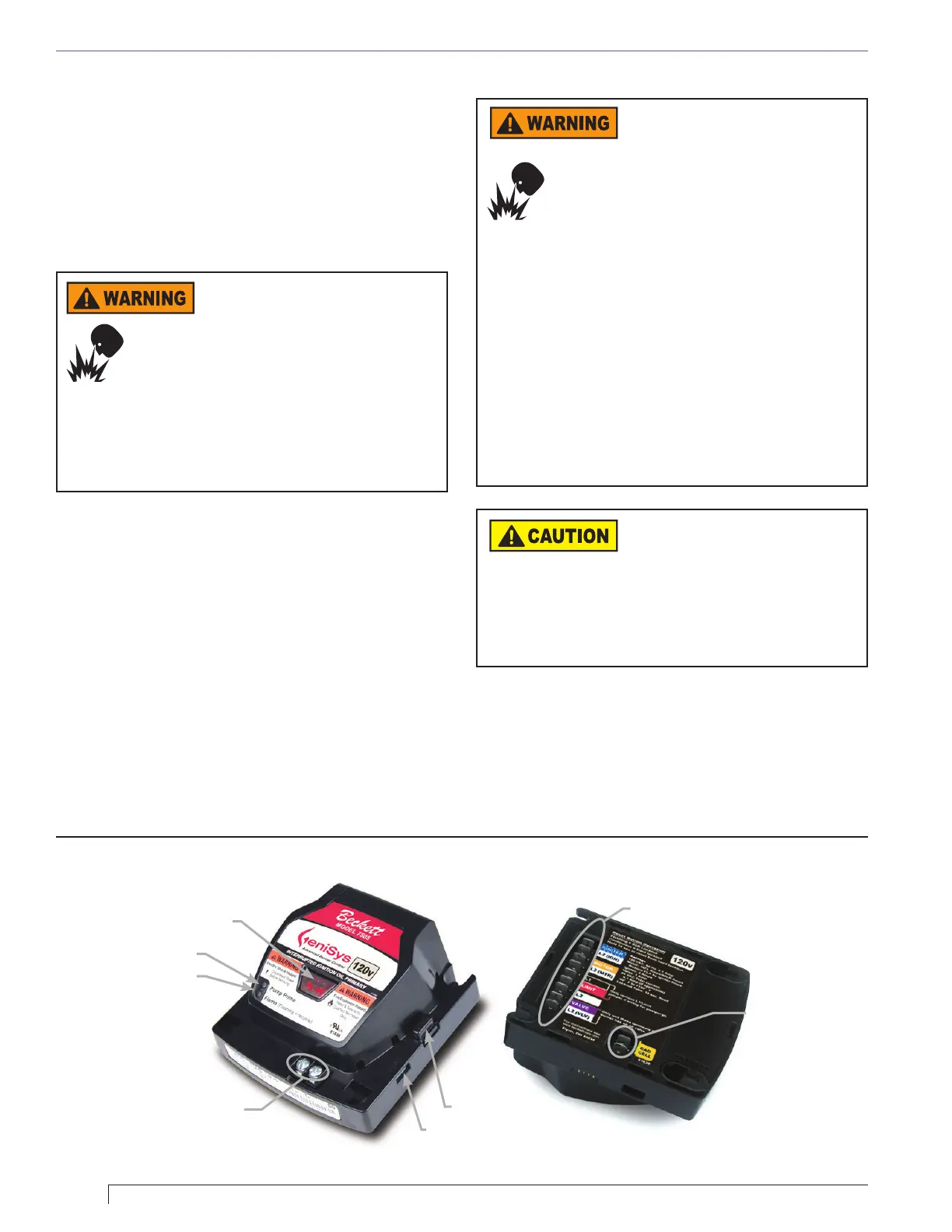

Figure 8A – 7505 Control
Cad Cell
Connections
Wiring
Connections
Communication Port 2
Reset Button with Red Light
Communication Port 1
Thermostat Terminals
Green Light
Yellow Light
Wiring
Explosion, Fire, Scald,
and Burn Hazard
All heating appliances must have HIGH
LIMIT protection to interrupt electrical
power and shutdown the burner if
operating or safety controls fail and
cause a runaway condition.
y Follow the appliance manufacturer’s wiring diagrams
and note all required safety controls.
y Typical safety controls include high temperature or
pressure limits, low water cutoffs, pressure relief
valves and blocked ue sensing switches.
y Verify all limit and safety controls are installed
and functioning correctly, as specied by the
manufacturer, applicable safety standards, codes and
all authorities having jurisdiction.
y Ensure that the appliance is free of oil and oil vapor
before starting or resetting the burner.
Incorrect Wiring Will
Result in Improper
Control Operation
y GeniSys wiring label colors may not match the wire
colors of the burner or other manufacturers’ controls.
y The GeniSys Control should be wired according to
the appliance manufacturer’s instructions.
