SF/SM Burner Manual

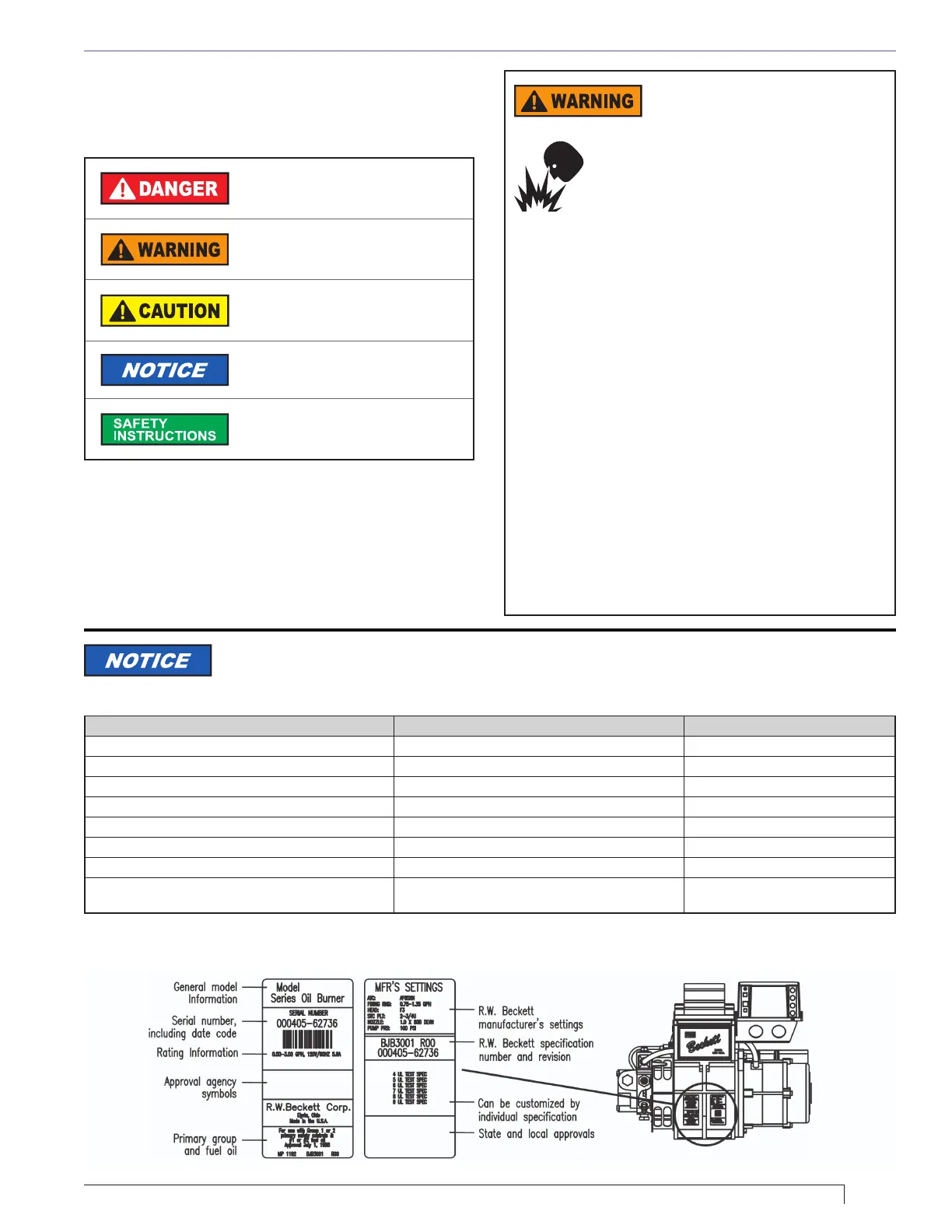

Section: GENERAL INFORMATION
General Information
Feature SM SF
Firing Rate Range 1.25 to 3.00 gph 1.25 to 5.50 gph
Motor 1/5 HP 1/4 HP
Fuel Pump Capacity 3 gph (standard) 7 gph (standard)
UL Air Tube Combinations See Table 2 See Table 2
Blocking Oil Solenoid Valve Optional Required above 3 gph
Primary Control Lockout Timing 15 to 45 seconds (optional) 15 seconds maximum
Primary Control Beckett GeniSys 7575P Beckett GeniSys 7505 or 7575
Option to ship less Primary Control
for Pressure Washer Industry
Yes (Model 7575P Primary Control with “valve-on delay” and
“motor-off delay” required in nal installation.)
No
Figure 1 – Burner Label Location
This manual contains information that applies to both SM and SF burners. These burners may
appear to be basically identical, but there are differences in design and performance. Please
review the comparison chart below:
Owner’s Responsibility
Incorrect installation, adjustment,
and use of this burner could result
in severe personal injury, death, or
substantial property damage from re,
carbon monoxide poisoning, soot or
explosion.
Contact a professional, qualied service agency for the
installation, adjustment and service of your oil heating
system. This work requires technical training, trade
experience, licensing or certication in some states and
the proper use of special combustion test instruments.
Please carefully read and comply with the following
instructions:
y Never store or use gasoline or other ammable
liquids or vapors near this burner or appliance.
y Never attempt to burn garbage or refuse in this
appliance.
y Never attempt to light the burner/appliance by
throwing burning material into the appliance.
y Never attempt to burn any fuel not specied and
approved for use in this burner.
y Never restrict the air inlet openings to the burner or
the combustion air ventilation openings in the room.
Hazard Denitions:
Indicates a hazardous situation
that, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
that, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
that, if not avoided, could result
in minor or moderate injury.
Used to address practices not
related to physical injury.
Safety instructions signs
indicate specic safety-related
instructions or procedures.
