4 Parameterization and Commissioning
4.1 Start-up behavior of the Bus Terminal Controller
When the Bus Terminal Controller is switched on it checks its state, configures the K-bus, creates a
configuration list based on the connected Bus Terminals and starts its local PLC.
The I/O LEDs flash when the Bus Terminal Controller starts up. If the system is in an error-free state, the I/O
LEDs should stop flashing after approx. 2-3 seconds. In the event of a fault the error type determines which
LED flashes (see chapter Diagnostic LEDs).

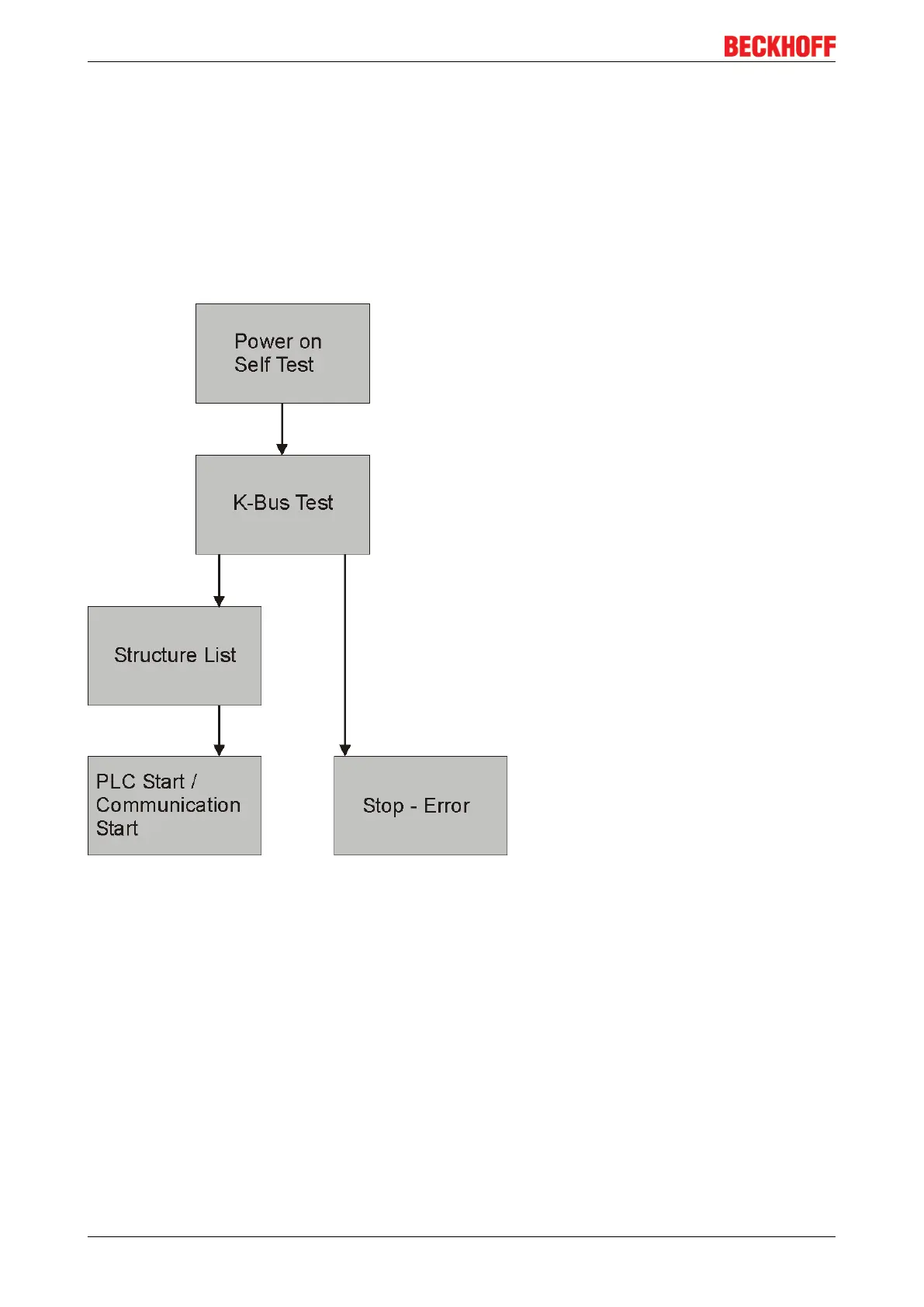

Fig.16: Start-up behavior of the Bus Terminal Controller
