Parameterization and Commissioning
BC8050 und BC8150 29Version: 3.0.0
ADS protocol via the fieldbus
(BC3150, BC5150, BC9x20, BC9050, BX3100, BX5100, BX9000 only)
A prerequisite is that TwinCAT operates as master and is engaged in data exchange, i.e. the physical and
fieldbus configuration must be complete, and data exchange must take place between the master
(e.g.fieldbus master card) and the Bus Terminal Controller.
Choose Target System
Select the Bus Terminal Controller onto which the configuration is to be loaded. Use the function key F8 to
open the dialog for downloading your file to the corresponding device.

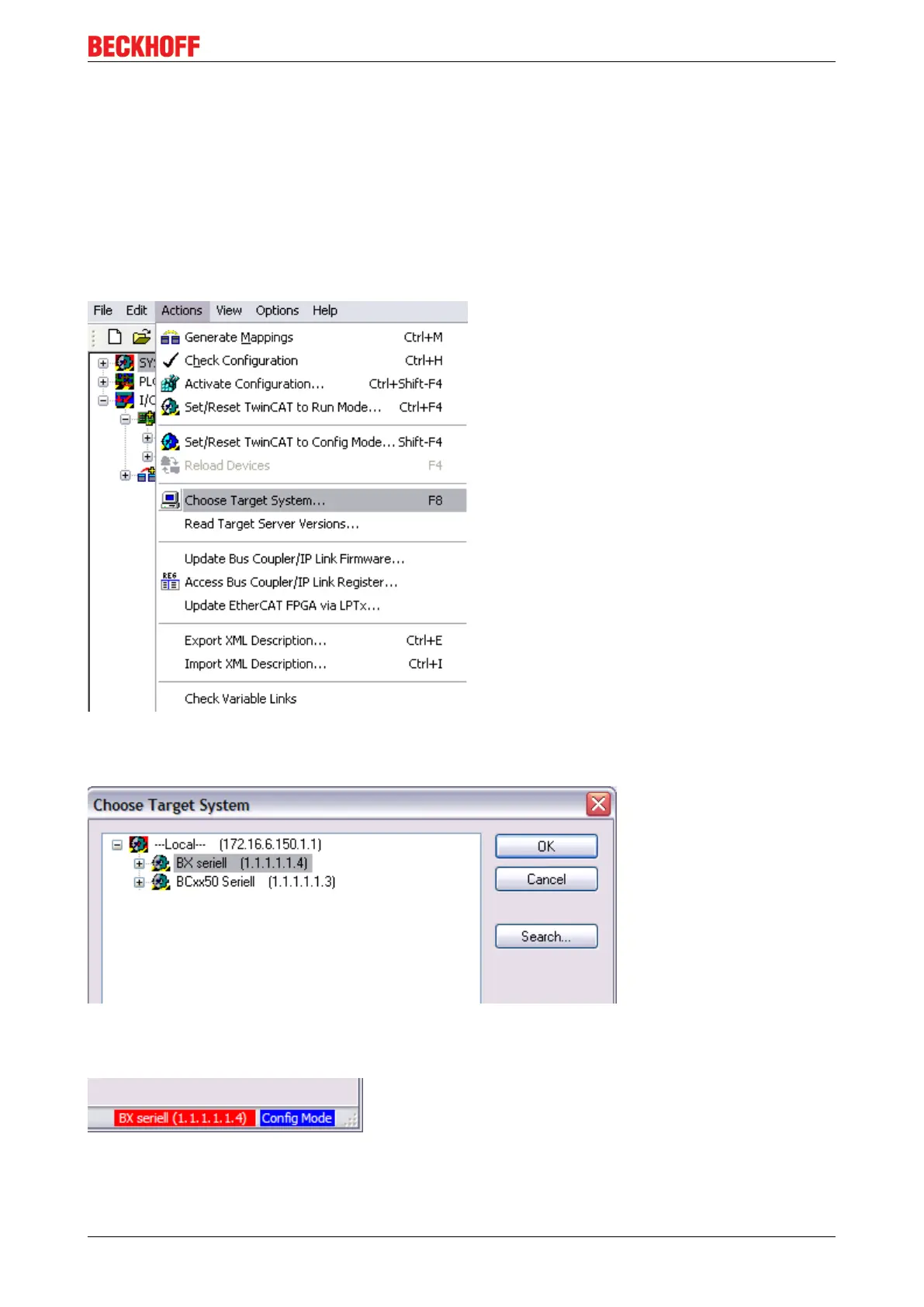

Fig.20: Downloading a TwinCAT configuration
Select the corresponding Bus Terminal Controller.
Fig.21: Selecting the Bus Terminal Controller
The state of the Bus Terminal Controller is shown at the bottom right of the System Manager.
Fig.22: State of the Bus Terminal Controller
