Appendix
BC8050 und BC815084 Version: 3.0.0
Outputs 2kB, %QB0..2048
Flags 4kB, %MB0..4095
Task configuration
A maximum of one task is available. A sensible task time should be selected. Adjust the task time to your
application by measuring the required system time (PLC + K-Bus + fieldbus + other).
Retain data
For the Bus Terminal controllers of the BCxx50, BCxx20 and BXxx00 series, up to 2kB of retain data are
available. Ensure that no (or only very few) retain data are used in function blocks (see RETAIN data).
8.3 Example programs for serial communication
KS8000 protocol
Example program for BC8150 communication with VB6 without KS8000 OCX or DLL. Source code and
EXE file
(https://infosys.beckhoff.com/content/1033/bc8x50/Resources/zip/4059887115.zip)
Example program for BC8150 communication with VB6 with KS8000 OCX. Source code and EXE file:
(https://infosys.beckhoff.com/content/1033/bc8x50/Resources/zip/4059889291.zip)
The ADS protocol
Example program for BC8150 communication with VB6 with ADS OCX. Source code and EXE file
For this example the AMS Net ID must be set to "1.1.1.1.1.5" (see serial ADS [}34]).
(https://infosys.beckhoff.com/content/1033/bc8x50/Resources/zip/4059891467.zip)
Modbus RTU protocol
Example: BC8150 connected to CIMREX 12 panel from Beijers
The serial interface of the BC8150 can also be used as a Modbus slave. In this example, a panel from the
company Beijers is connected. Further information about the panel can be found at www.beijerelectronics.de.

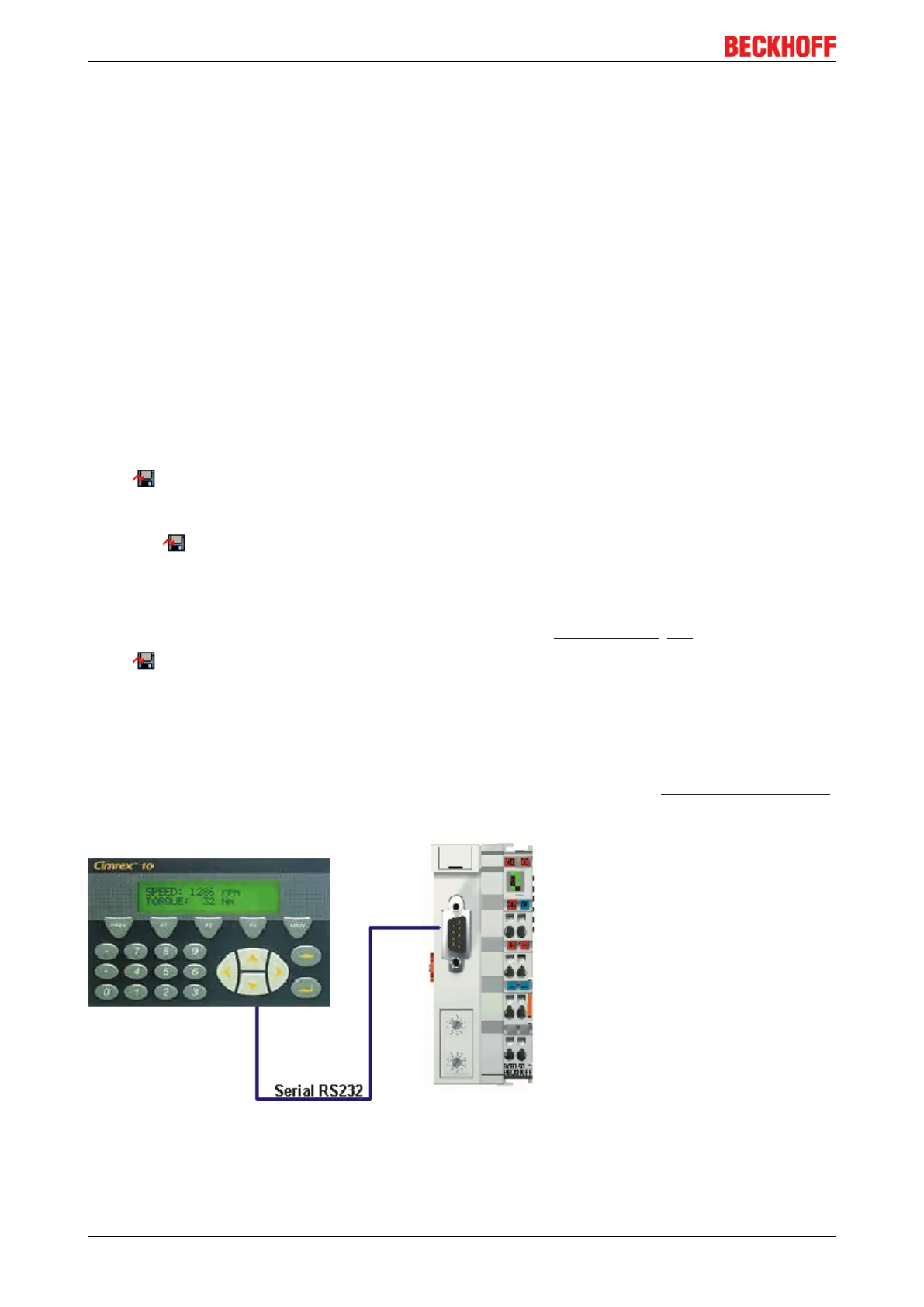

Fig.63: Connection example BC8150 to a CIMREX 12 panel from Beijers
