Parameterization and Commissioning
BC8050 und BC815032 Version: 3.0.0

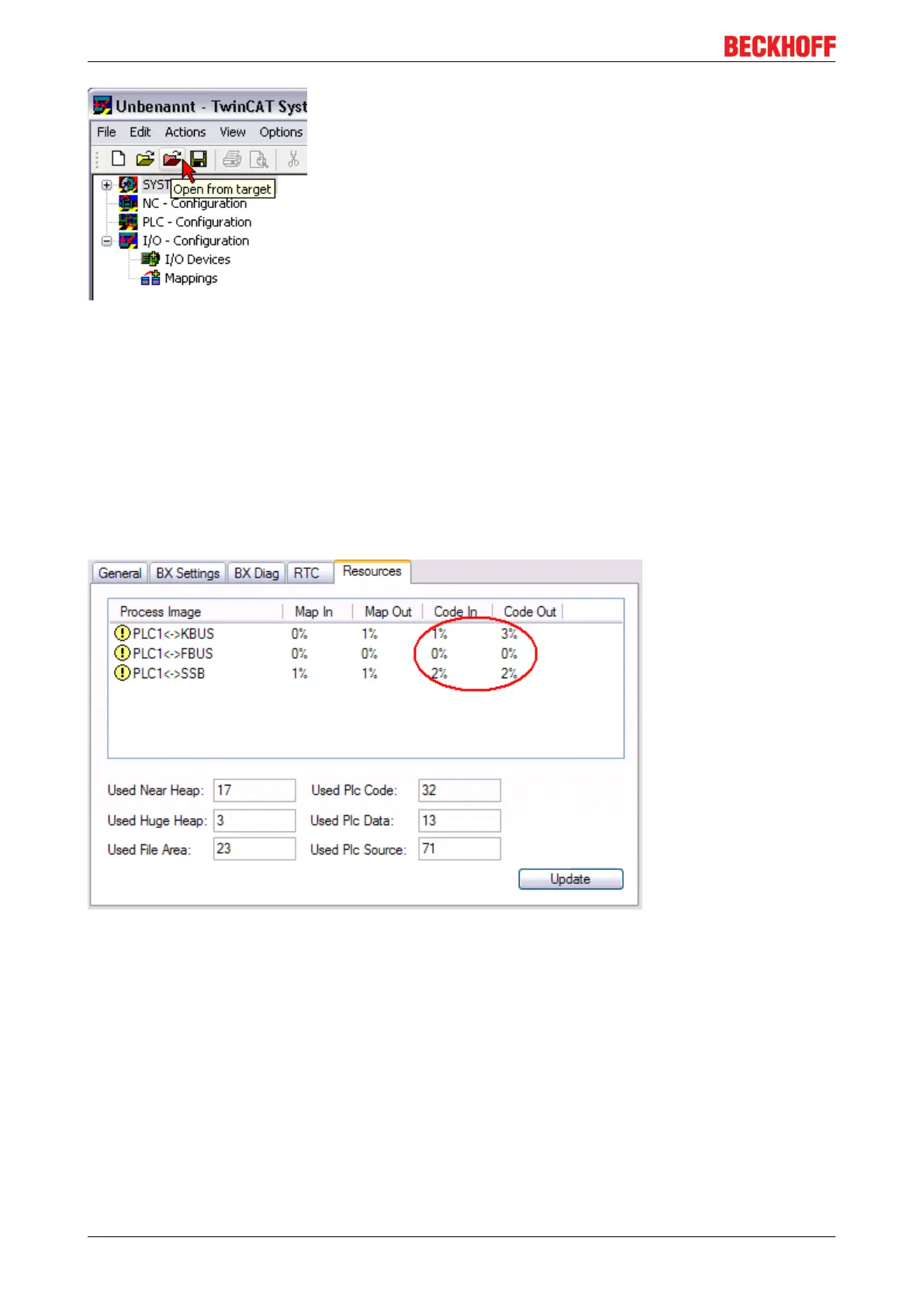

Fig.27: Uploading the TwinCAT configuration
4.4.5 Resources in the Bus Terminal Controller
The memory resources assigned in the Bus Terminal Controller are shown in the System Manager in the
Resources tab of the Bus Terminal Controller.
Mapping code
The mapping code is required for calculating the TwinCAT configuration (see Figure Memory for the code
mapping). The percentages are added here. In the example from Fig. Memory for code mapping, 8% of the
memory is allocated to the mapping calculation.
Fig.28: Memory for code mapping
Data memory mapping
Data memory for mapping. The values are to be considered individually, i.e. each value can be up to 100%.
