Appendix
BC8050 und BC815086 Version: 3.0.0
Note for BX3100:
Updates are not available with BX3100 firmware 0.64 (or lower). If these devices need updating, send the
BX3100 to the manufacturer with a corresponding note.
Beckhoff Automation GmbH & Co. KG
Service Department
Stahlstr. 31
33415 Verl, Germany
Firmware update program 241 (https://infosys.beckhoff.com/content/1033/bc8x50/Resources/
zip/3238791819.zip) 71kbytes (for Windows NT4.0 SP6, 2000, XP).
The program FirmwareUpdate.exe and the file TcRouterHelper.dll have to be in the same directory. Open
the program by double-clicking on FirmwareUpdate.exe.
Update for Bus Terminal Controllers
BX series

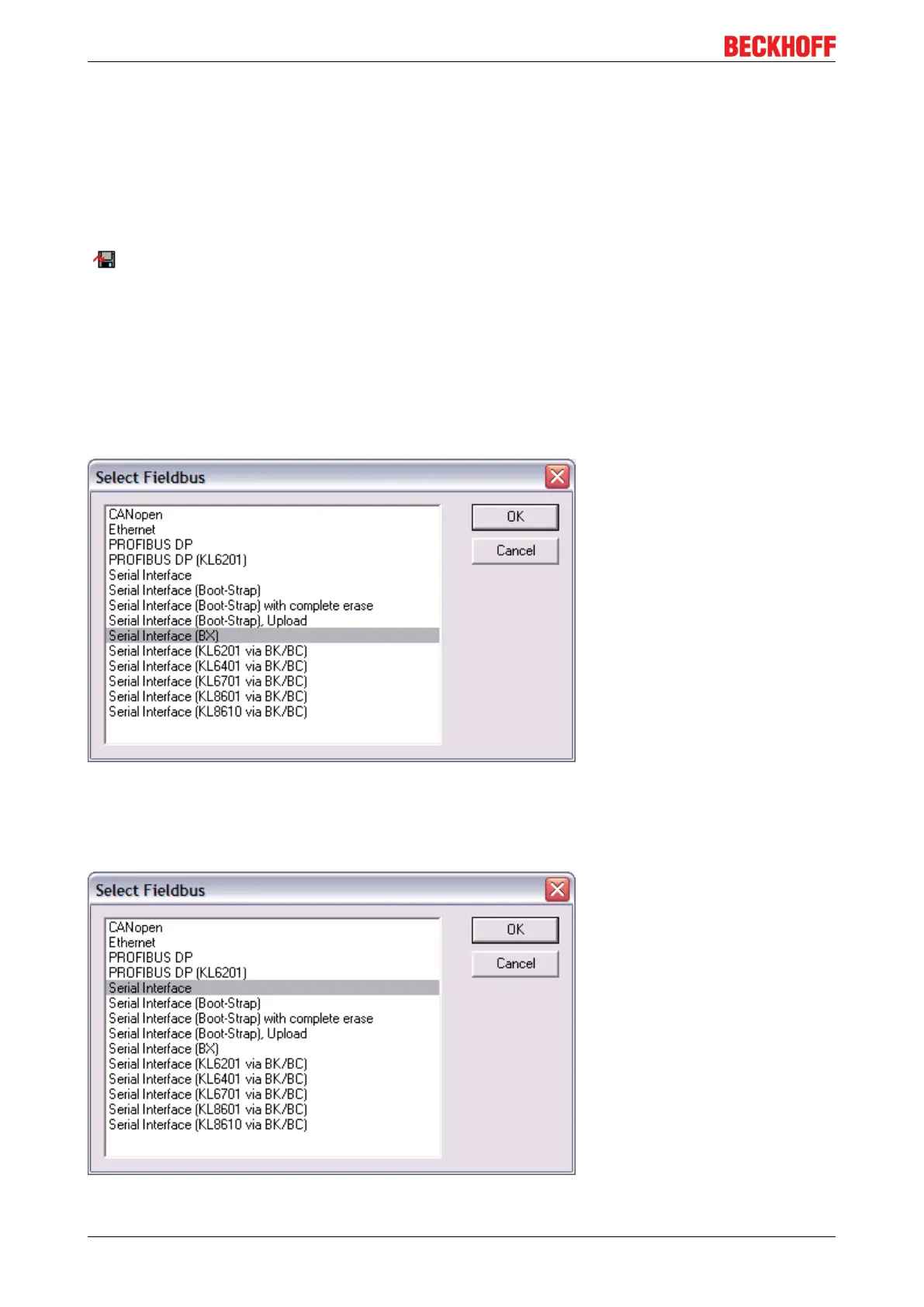

Select the appropriate device of - in this example "Serial interface (BX)".
Fig.64: Selecting a BX series Bus Terminal Controller
BCxx50 series
Select the corresponding device, in this case "Serial Interface".
Fig.65: Selecting a BC series Bus Terminal Controller
