Commissioning/Configuration
5.2 EtherCAT cable redundancy
EtherCAT cable redundancy can be realized in the CX51x0 systems through the two independent Ethernet
ports. Minimum requirements:
1. EtherCAT redundancy supplement
2. EK1110 (Bus extension)
3. EK1100 (Bus Coupler)
The supplement product on the Beckhoff website at
http://download.beckhoff.com/download/Software/TwinCAT/TwinCAT2/Supplement/
TwinCAT_EtherCAT_Redundancy/Install/TcEcRedundancy.exe
can be downloaded. The required license key can be ordered from our sales division. The required couplers
are ordered together with the other hardware. These components can then be used to configure the

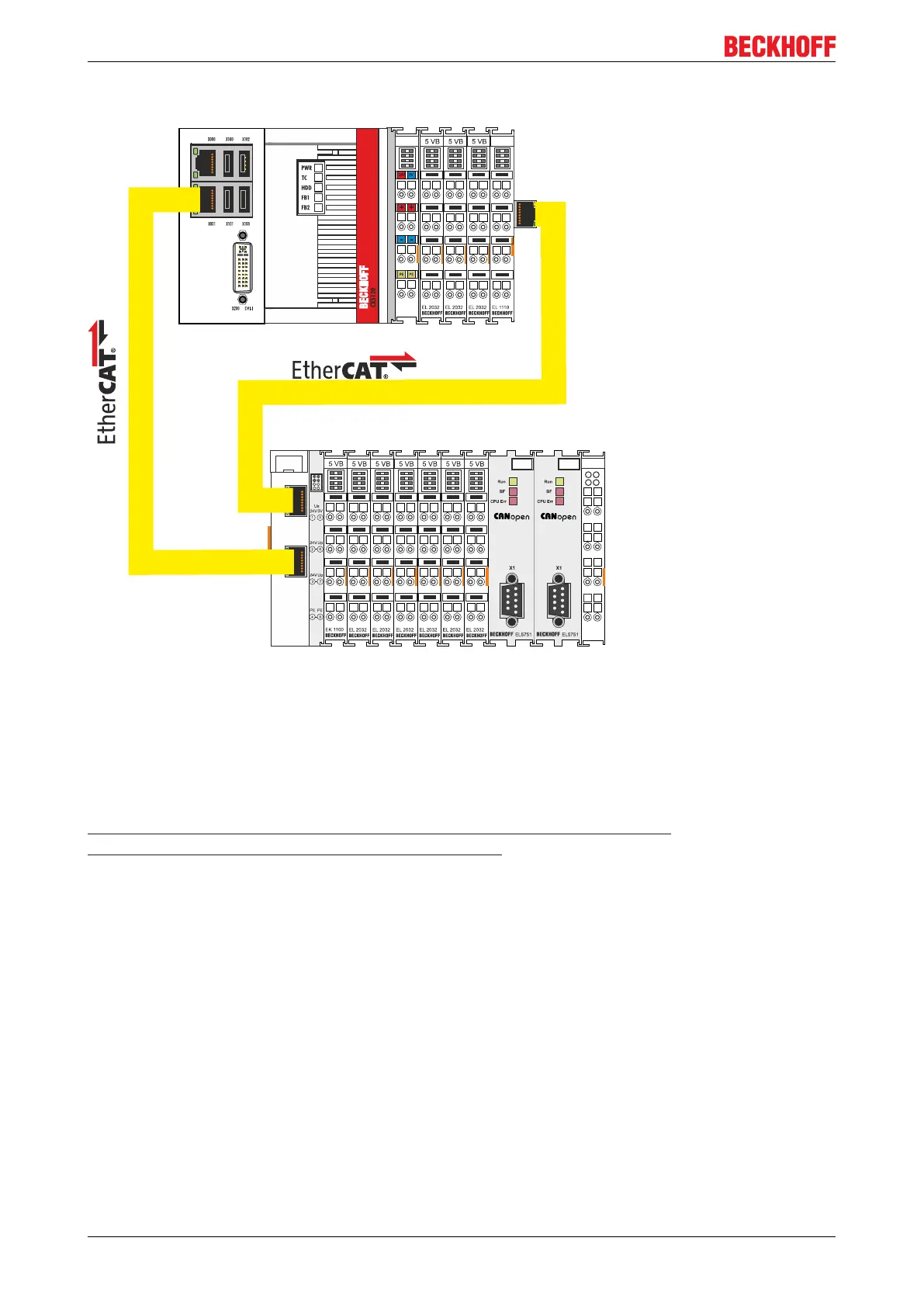

controller. The upper figure shows a minimum configuration example for cable redundancy. Once the
hardware has been wired and commissioned, the supplement must be installed on the device, for example
via a USB stick or the IT network. The cable redundancy can be set up in the System Manager. During the
installation the system asks for the license key. The cable redundancy can be set up in the “System
Manager”. The first step involves reading the terminal configuration. Then select "Advanced Settings" under
the "EtherCAT" tab in the EtherCAT device properties. The second adapter can be set under the
"Redundancy" menu. Use the "Search" button to open the selection menu. Select "Local Area Connection 2
(Intel(R).....)" for the lower network connection (X001). Click "OK" to complete the configuration.
CX51x076 Version: 1.6
