Commissioning/Configuration

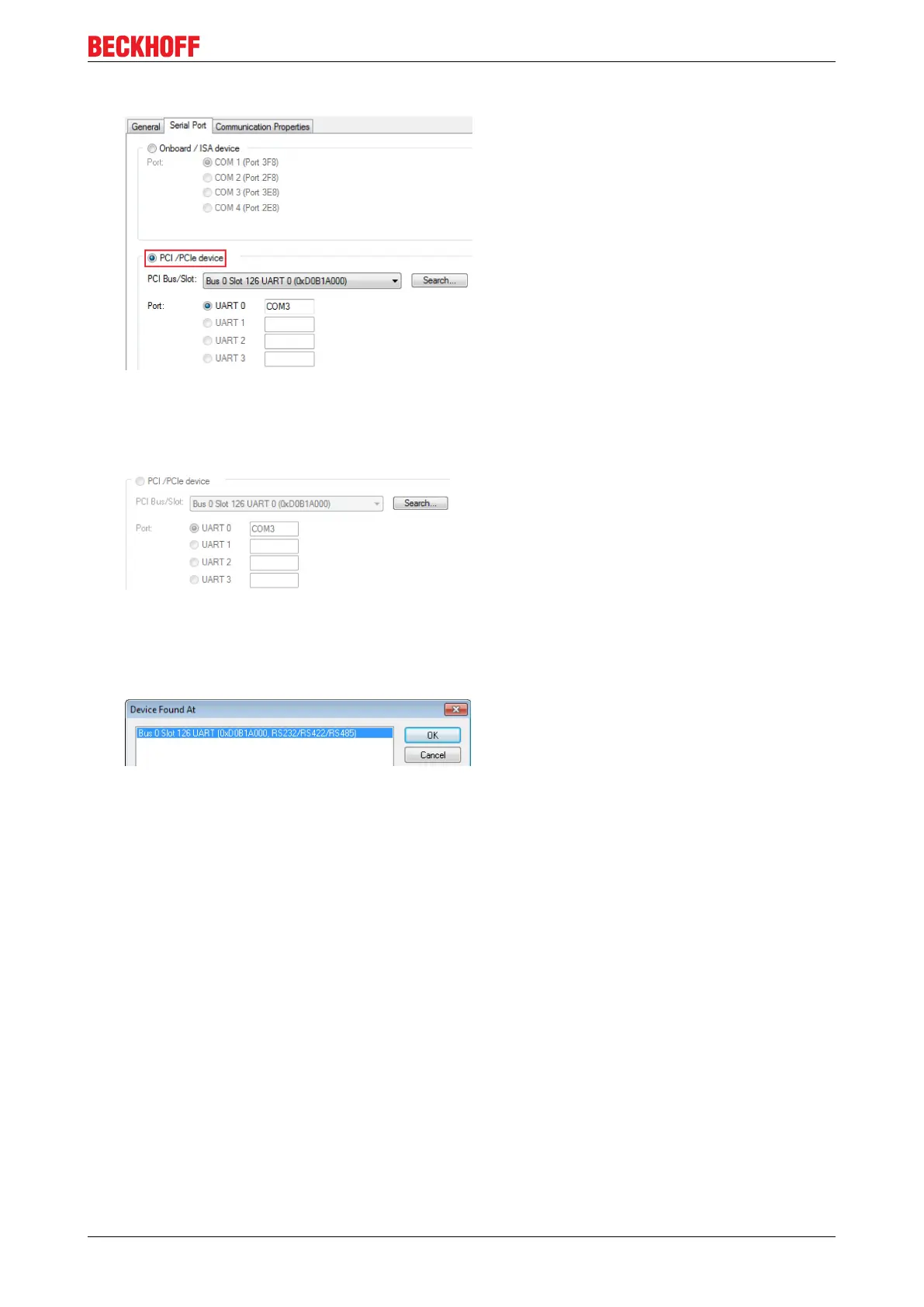

5. Under the Serial Port tab, select the option PCI/PCIe Device.
The serial interface of the CX51x0 is shown under Port:.
If the option Onboard/ISA device is already selected, the option PCI/PCIe device is greyed out and
cannot be selected.
The option PCI/PCIe device can be re-enabled as follows:
6. Click on Search.
The window Device Found At appears.
7. Click on the COM port, then on OK.
The option PCI/PCIe device is enabled again.
ð You have successfully added and configured the CX51x0 with serial interface (N031x) in TwinCAT. You
can now add further devices to the device and continue with the configuration as usual.
CX51x0 83Version: 1.6
