Operation
EL1918
36
Version: 1.2.0

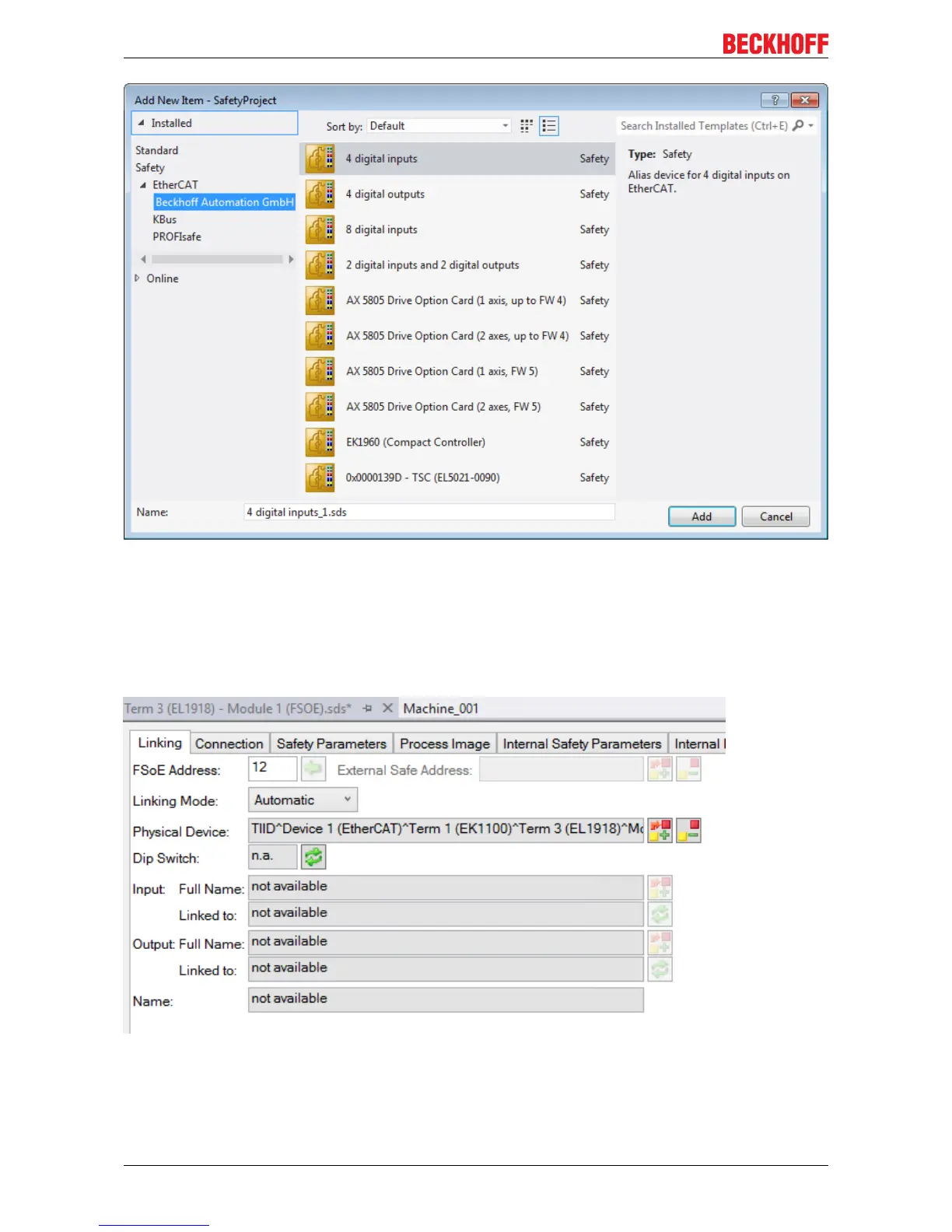

Fig.21: Creating alias devices by the user
4.3.6
EL1918 parameters in TwinCAT
After creating the alias device, it can be parameterized according to the user specifications.
The FSoE address is set under the
Linking
tab, and the link to the physical device is created.
Fig.22: Linking tab of the alias device
Under the
Connection
tab you can make further settings, e.g. the mapping of the info data or the behavior in
case of a module error.
35
37
