Product overview, digital output terminals
EL20xx, EL2124 17Version: 5.2
2 Product overview, digital output terminals
2.1 EL2002, EL2004, EL2008 - Introduction

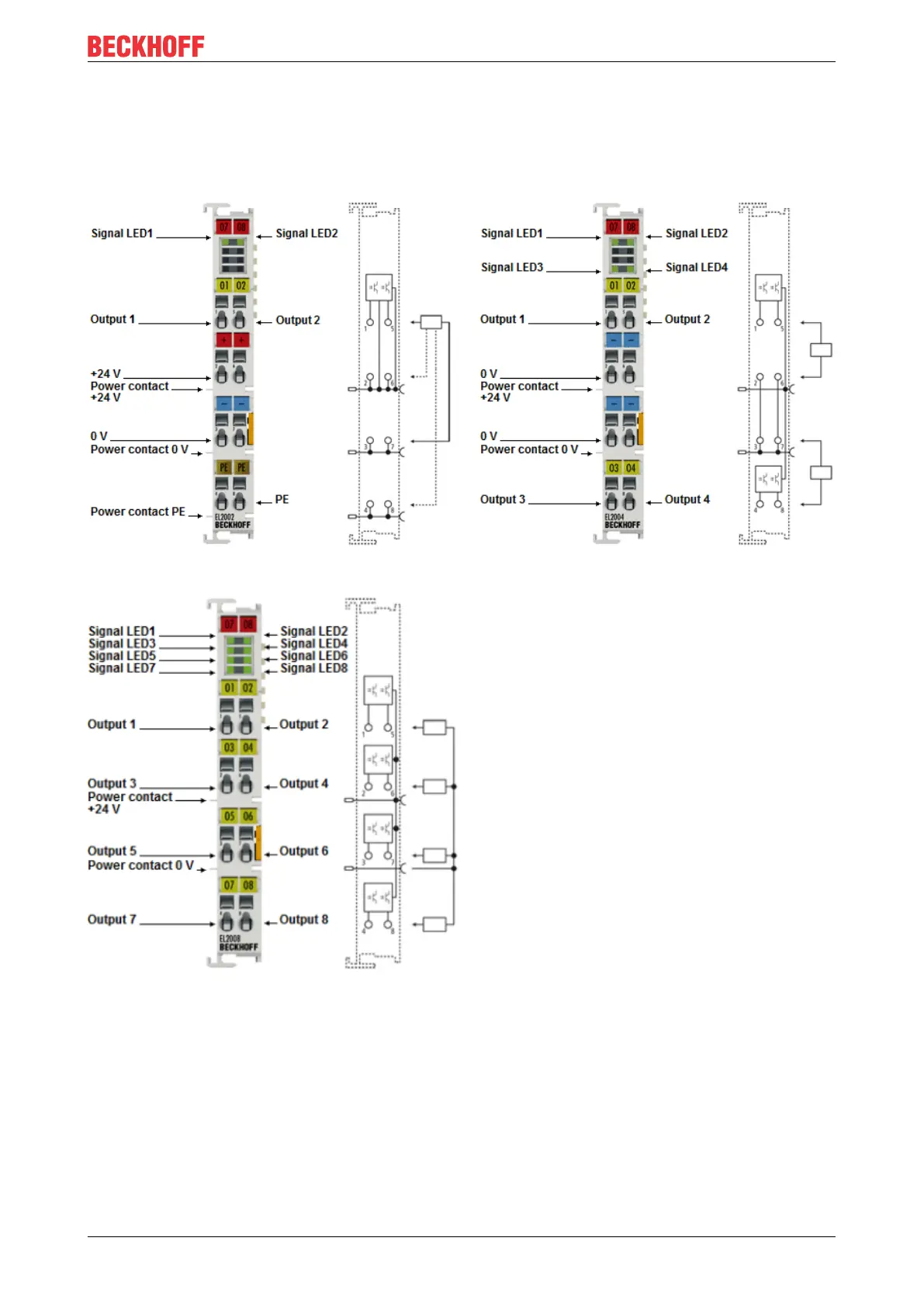

Fig.12: EL2002, EL2004
Fig.13: EL2008
Two-, four-, and eight-channel digital output terminals 24V
DC
, 0.5A
The EL200x digital output terminals relay binary control signals of the automation device in an electrically
isolated manner to the actuators of the process level. They are protected against reverse polarity at the
power contacts. The digital output terminals of the EL200x series indicate their signal state through an LED
for each channel.
