Product overview, digital output terminals
EL20xx, EL212456 Version: 5.2
2.6.2 EL2084 - LEDs and connection

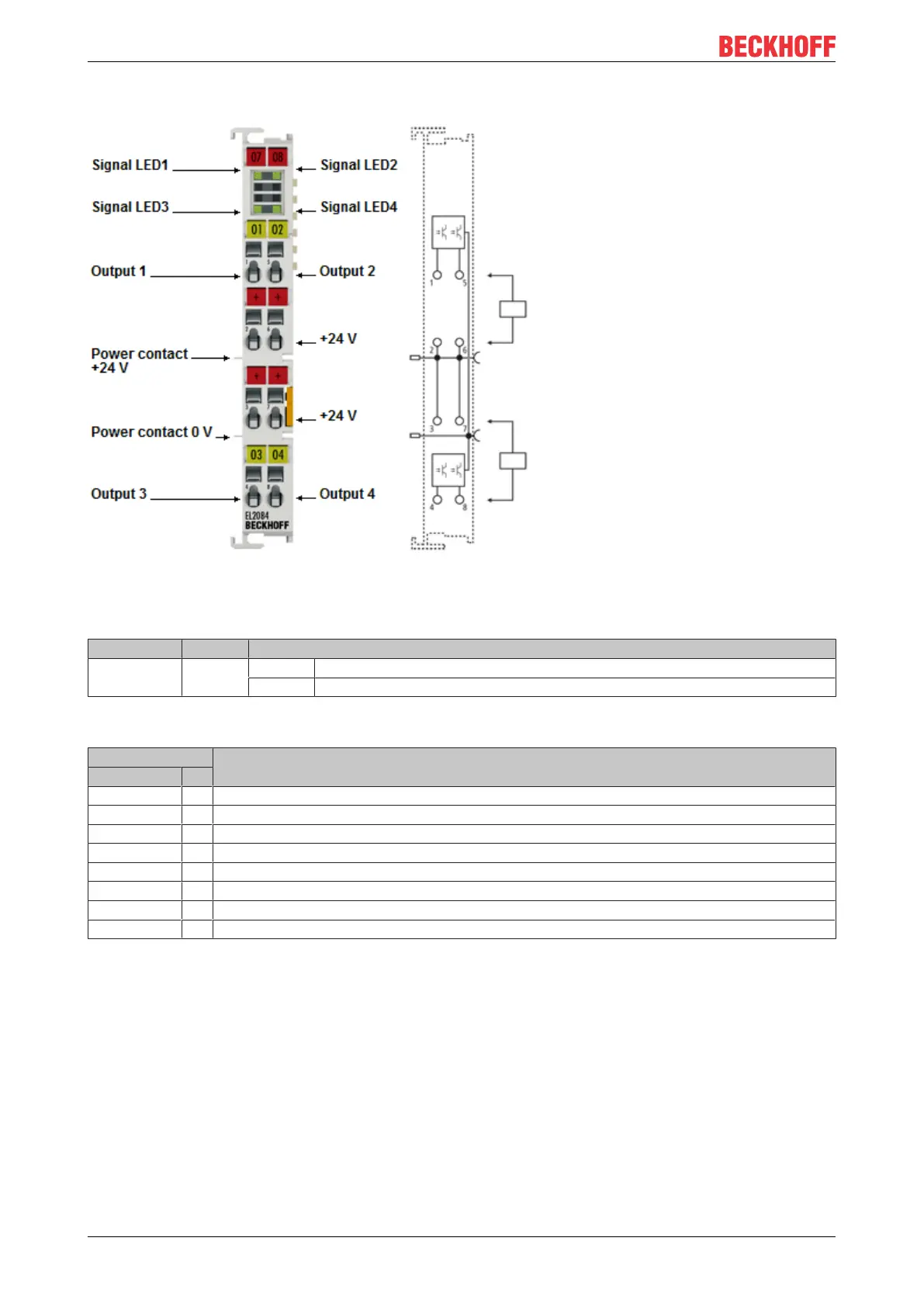

Fig.38: EL2084
EL2084 - LEDs
LED Color Meaning
OUTPUT 1- 4 green off No output signal is present at the respective output
on A 0V output signal is present at the respective output
EL2084 - Connection
Terminal point Description
Name No.
Output 1 1 Output 1 (0V)
24V 2 +24V for output 1 (internally connected to terminal points 3, 6, 7 and positive power contact)
24V 3 +24V for output 3 (internally connected to terminal points 2, 6, 7 and positive power contact)
Output 3 4 Output 3 (0V)
Output 2 5 Output 2 (0V)
24V 6 +24V for output 2 (internally connected to terminal points 2, 3, 7 and positive power contact)
24V 7 +24V for output 4 (internally connected to terminal points 2, 3, 6 and positive power contact)
Output 4 8 Output 4 (0V)
