2.4.2 EL2032 - LEDs and connection

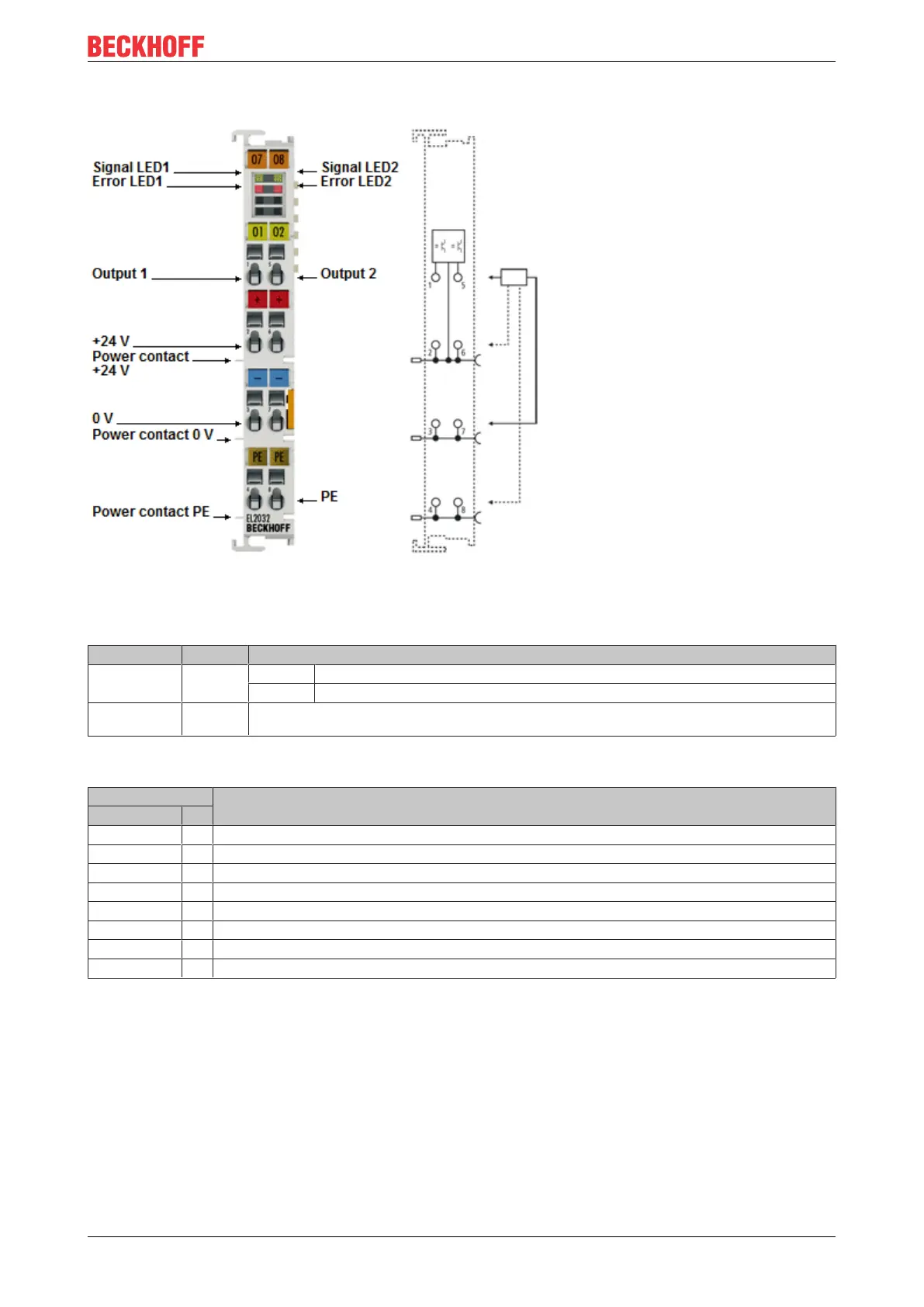

Fig.33: EL2032
EL2032 - LEDs
LED Color Meaning
OUTPUT 1
OUTPUT 2
green off No output signal is present.
on A 24V
DC
output signal is present.
ERROR 1
ERROR 2
red Fault indication in the event of interruption or overload of the output voltage
EL2032 - Connection
Terminal point Description
Name No.
Output 1 1 Output 1
+24 V 2 +24V (internally connected to terminal point6 and positive power contact)
0V 3 Ground for output1 (internally connected to terminal point7 and negative power contact)
PE 4 PE contact (internally connected to terminal point8 and PE power contact)
Output 2 5 Output 2
+24V 6 +24V (internally connected to terminal point2 and positive power contact)
0V 7 Ground for output2 (internally connected to terminal point3 and negative power contact)
PE 8 PE contact (internally connected to terminal point4 and PE power contact)
