Commissioning
EL20xx, EL2124 91Version: 5.2
Structured Text (ST)
Graphical languages
Function Block Diagram (FBD)
Ladder Diagram (LD)
The Continuous Function Chart Editor (CFC)
Sequential Function Chart (SFC)
The following section refers to Structured Text (ST).
After starting TwinCAT PLC Control, the following user interface is shown for an initial project:

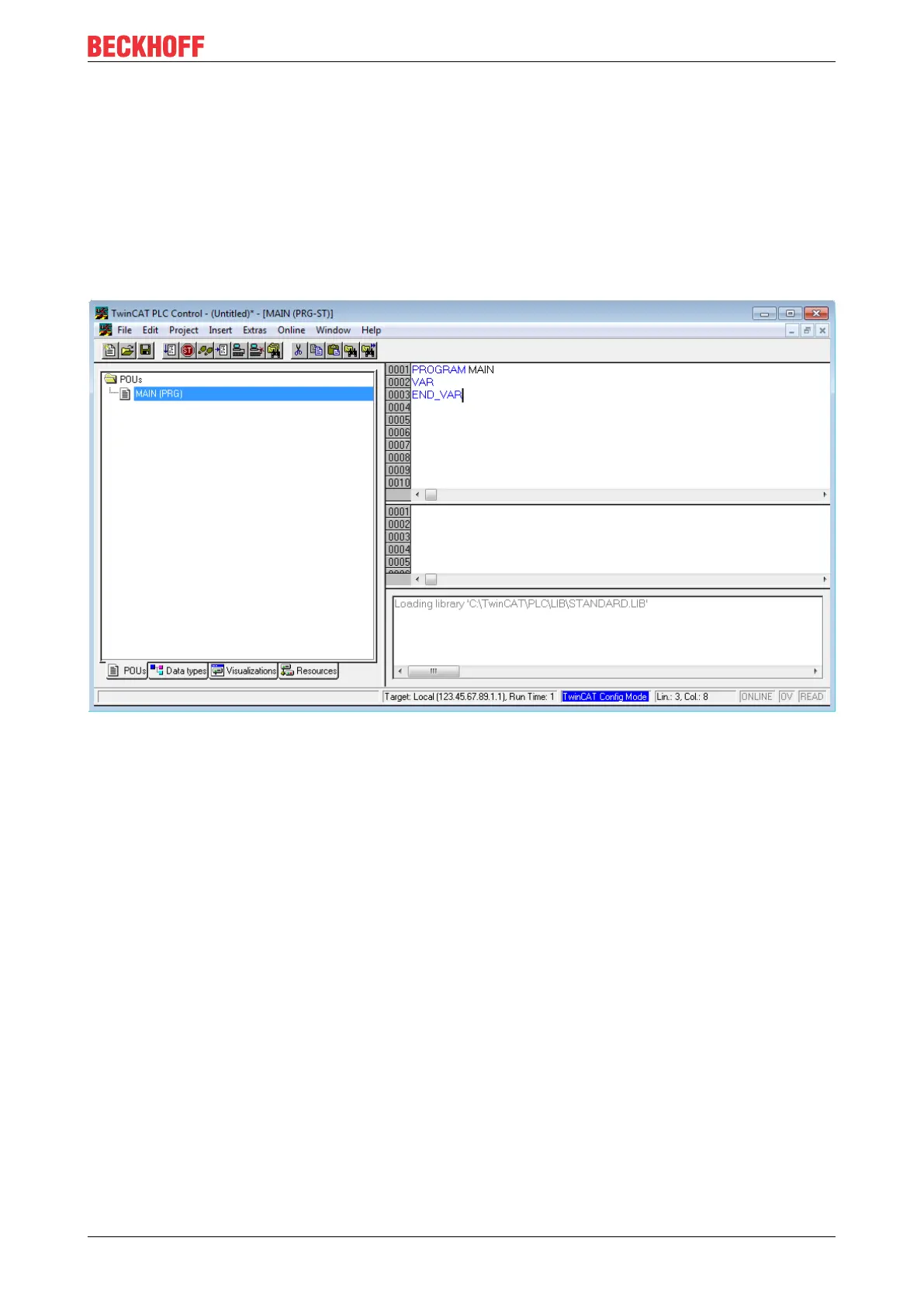

Fig.69: TwinCAT PLC Control after startup
Sample variables and a sample program have been created and stored under the name "PLC_example.pro":
