Product overview
EL6631-001018 Version: 3.4.0
2.3 EL6631-0010 - LEDs

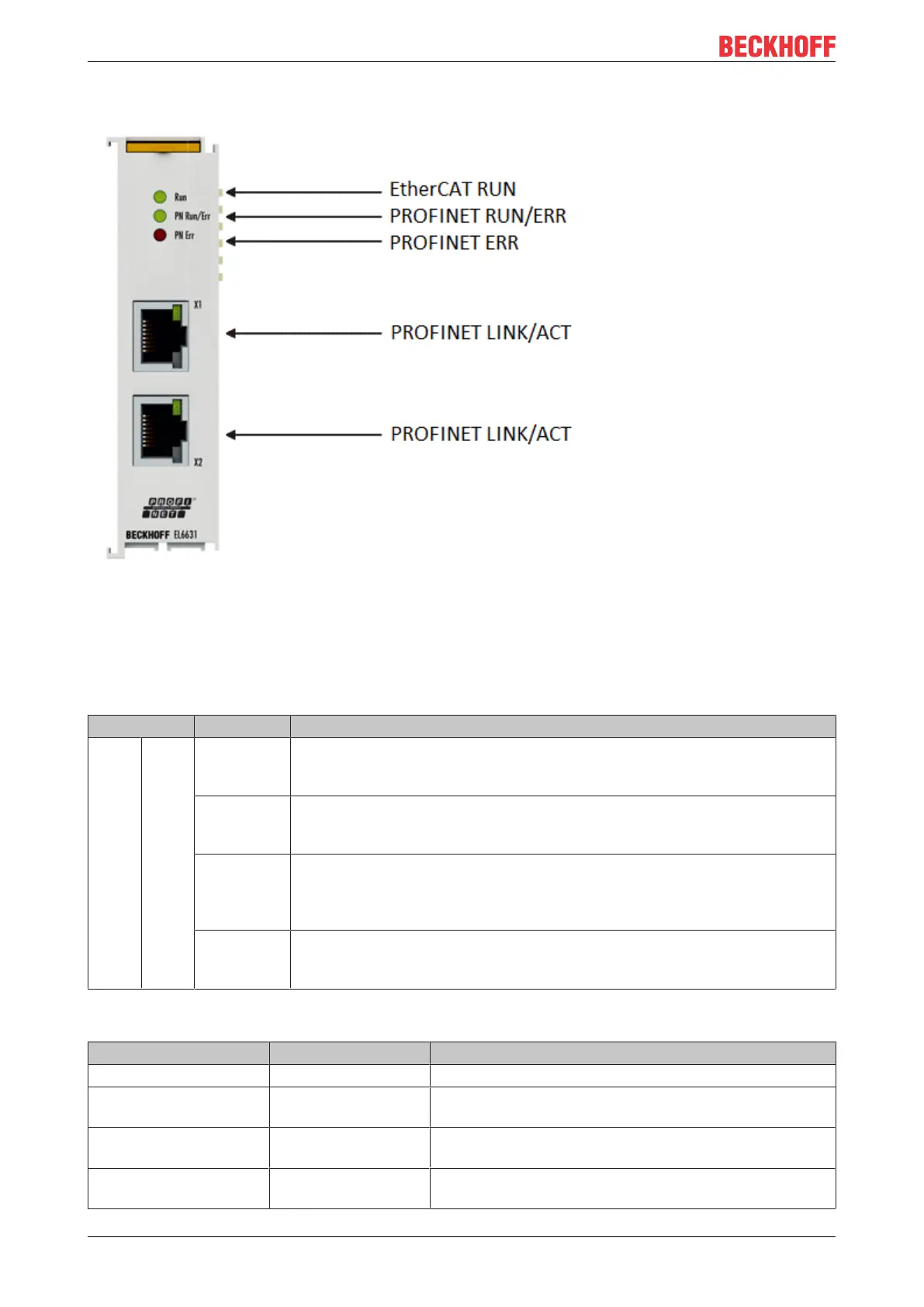

Fig.5: Tc_EL6631_LEDs
LEDs for EtherCAT diagnosis
LED Display Description
RUN green off State of the EtherCAT State Machine:
INIT = initialization of the terminal;
BOOTSTRAP=function for terminal firmware updates
flashing
200ms
State of the EtherCAT State Machine:
PREOP = function for mailbox communication and different standard-settings
set
off (1 s)
on (200 ms)
State of the EtherCAT State Machine:
SAFEOP = verification of the sync manager channels and the distributed
clocks.
Outputs remain in safe state
on State of the EtherCAT State Machine:
OP = normal operating state; mailbox and process data communication is
possible
LED diagnosis PROFINET RUN/Err
Colors green Colors red Meaning
on off EL terminal is parameterized
off (1 s)
on (200 ms)
off EL6631-0010 does not have an IP address
flashing
200ms
off EL6631-0010 still has not received a PROFINET name
off flashing
200ms
Terminal starts
