Commissioning
EL6631-001038 Version: 3.4.0

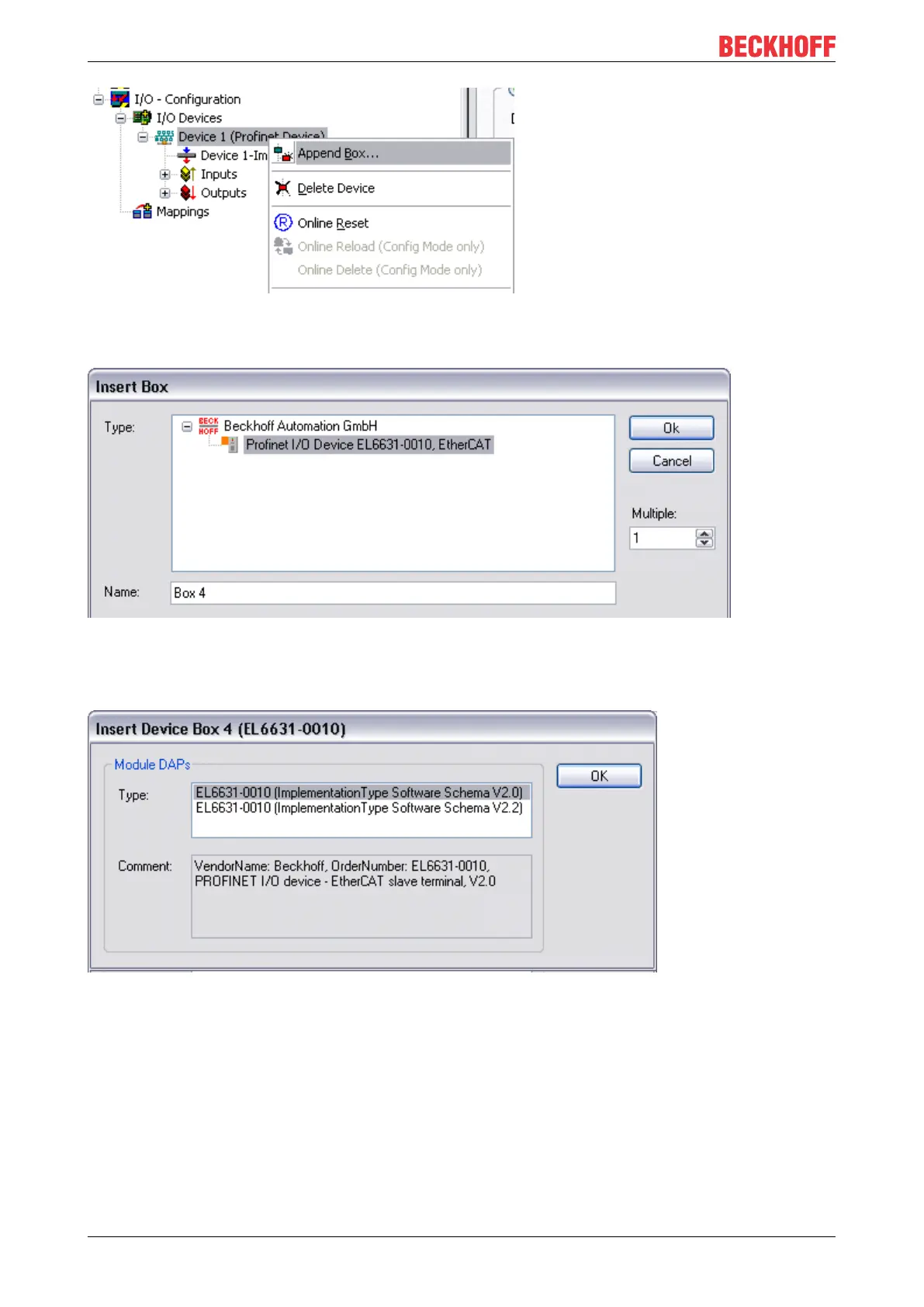

Fig.14: Inserting a PROFINET device protocol
A Box in the form of a GSDML is then integrated (right mouse button on "PROFINET Device").
Fig.15: "Insert Box" dialog
Now select the version to be used to integrate your EL6631-0010. The main difference between V2.0 and
V2.2 lies in the support for sub-modules.
Fig.16: EL6631-0010 selection with or without port diagnosis
In the first EL6631-0010 (according to V2.2) the ports, and therefore the port diagnosis, can be seen in the
DAP. The following EL6631-0010 is integrated according to V2.0. No port diagnosis is possible here. The
same version must be used in the master. Older PROFINET controllers cannot yet support Version 2.2, in
which case you should use Version 2.0.
