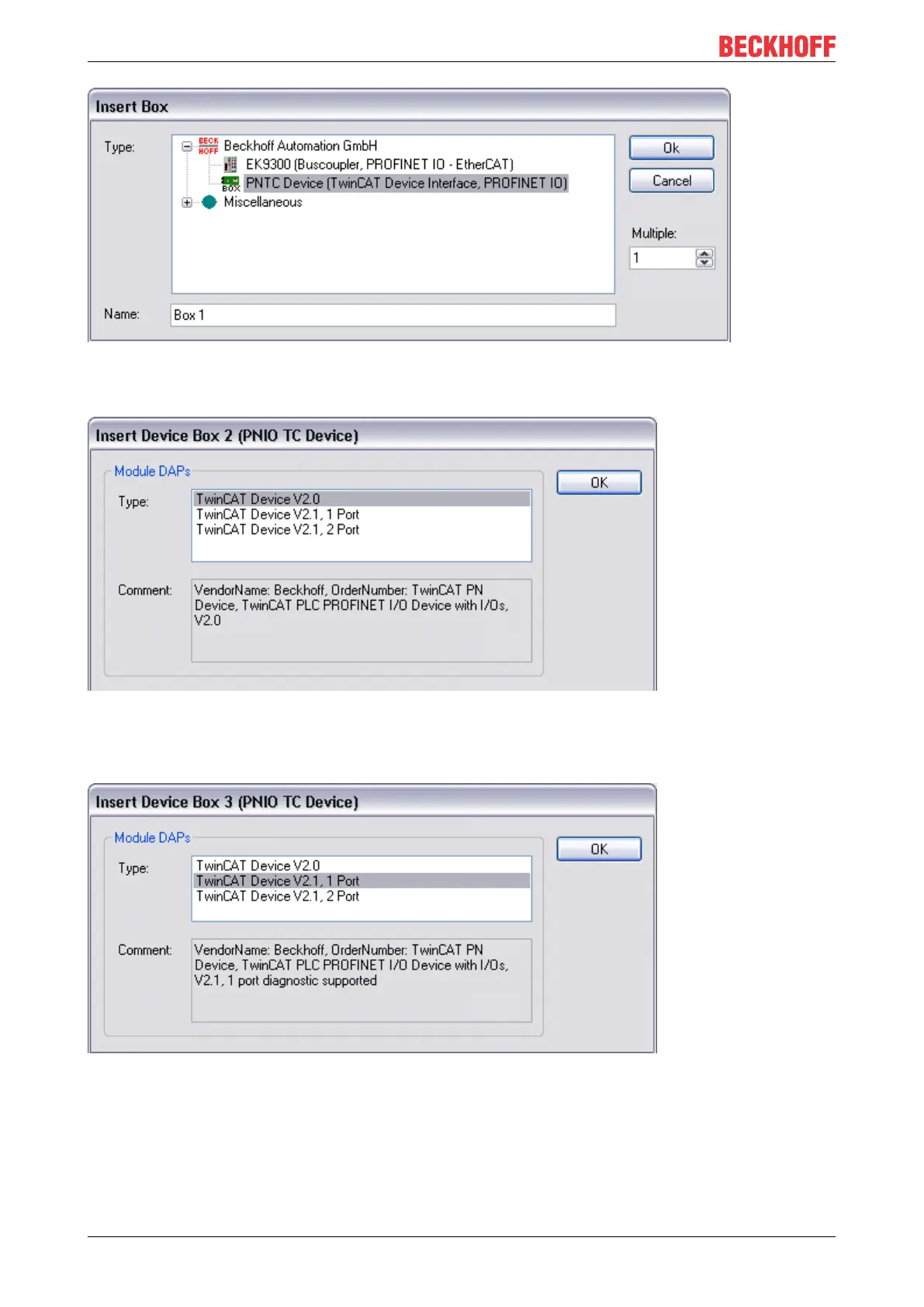

Fig.36: "Insert Box" dialog
Integration with any Ethernet interface without port diagnosis according to Version 2.0 without LLDP.
Fig.37: Integrating any Ethernet interface without port diagnosis
Integration with a simple Ethernet interface (without switch, for example the CX1010 or FC90xx) with port
diagnosis according to Version 2.1.
Fig.38: Integrating a simple Ethernet interface with port diagnosis
Integration with a switched Ethernet interface (the CX1020, for example) with port diagnosis according to
Version 2.1.
