Beckhoff XPlanar

Technical data
38 ─── Version: 1.0XPlanar
2x2
X ( 2 : 1 )
X
2
4
0 ±
0
,
0
5
240 ± 0,05
0,8
0
,
8
1
3
4
5
2

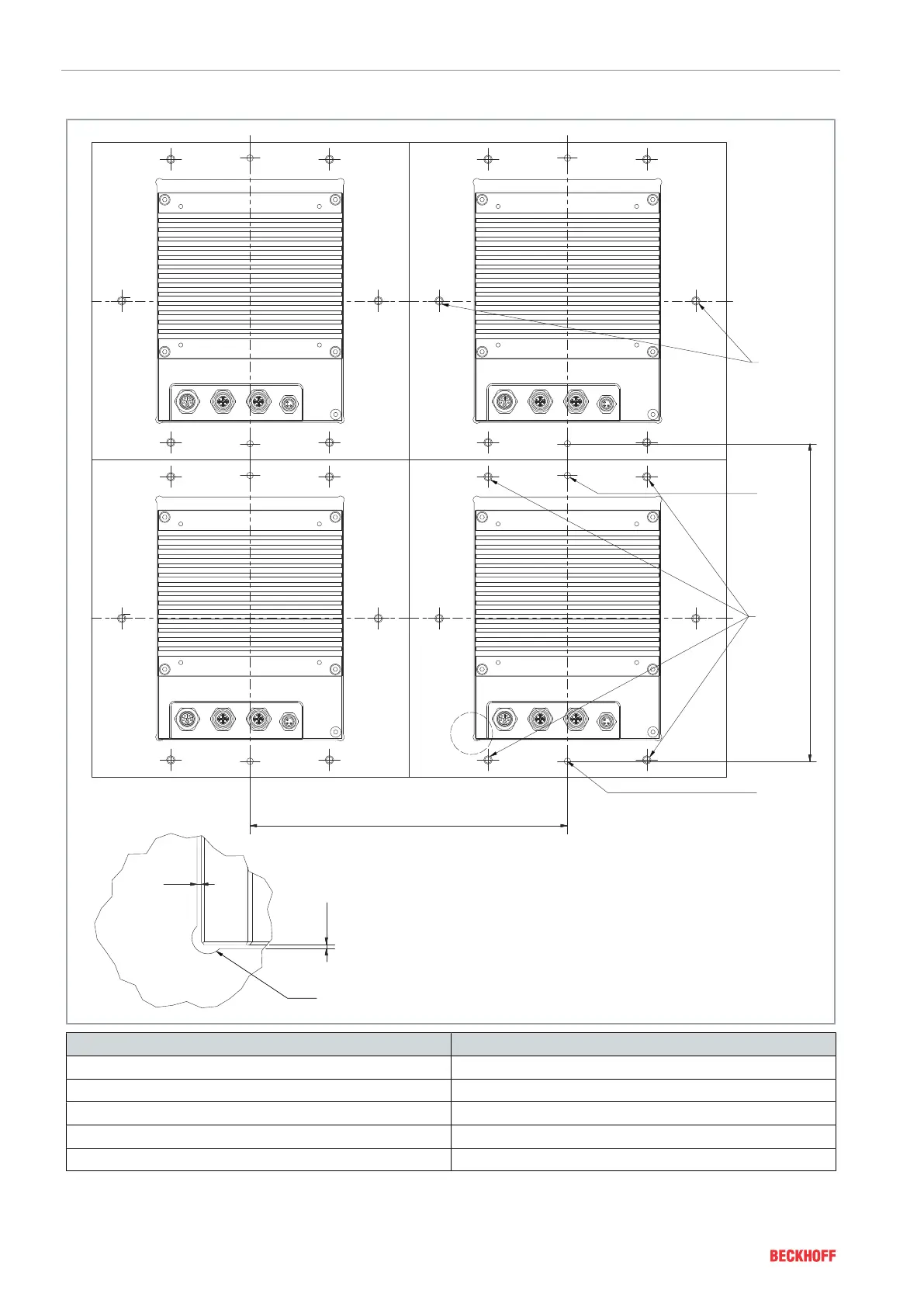

Number Name
1 Drilling pattern for fastening with two screws
2 Position of the elongated hole in the tile
3 Drilling pattern for fastening with four screws
4 Position of the locating hole in the tile
5 Ensure there is sufficient space at the corners
