Beckhoff XPlanar

Electrical installation
54 ─── Version: 1.0XPlanar
8.4

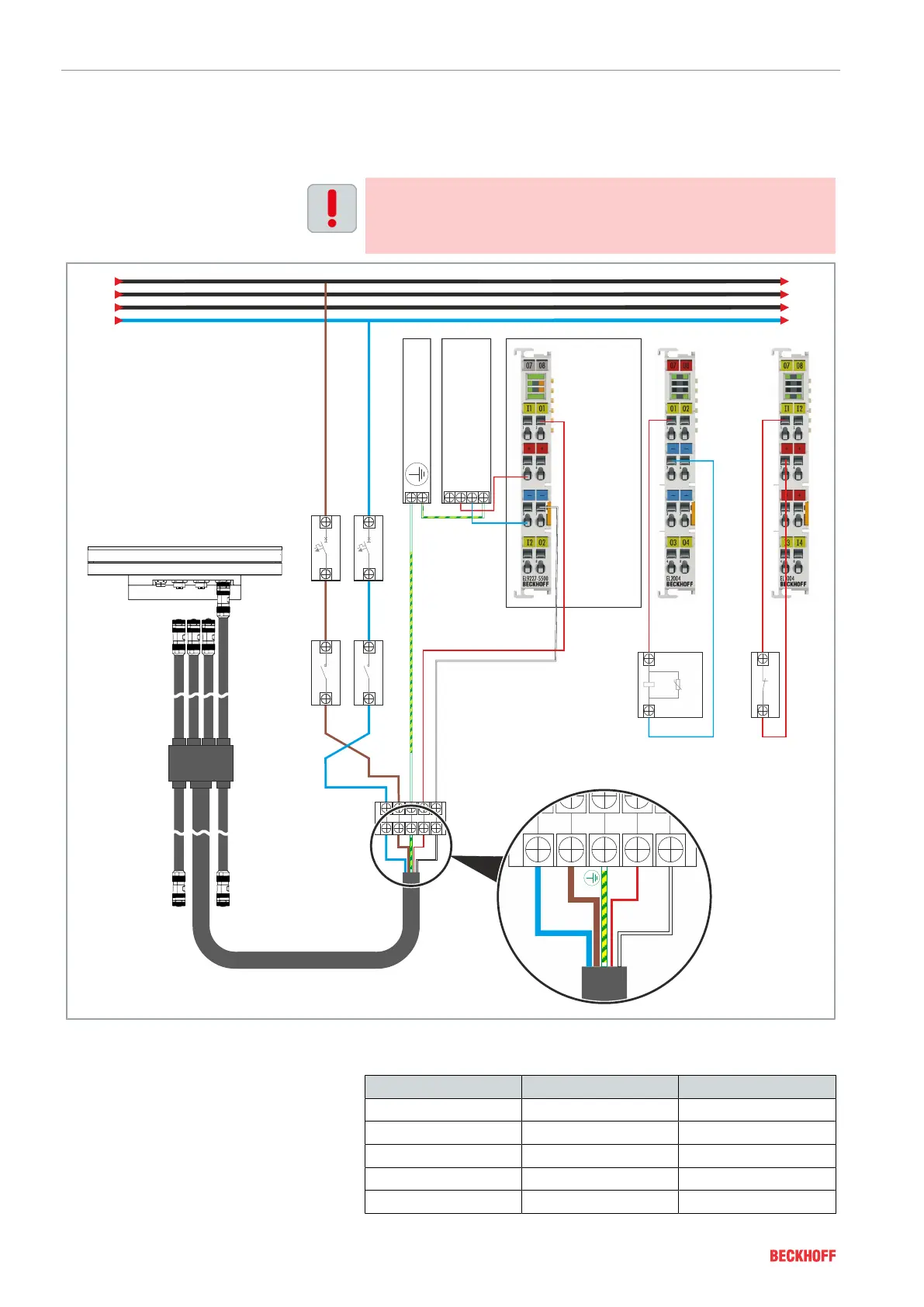

Example circuit
An example for a power supply involving connecting a star distribu-
tor with up to six tiles is provided below:
Symmetrical distribution between the phases
For multiphase feed networks the XPlanar tile groups must be dis-
tributed symmetrically between the existing phases. Observe the
maximum possible input inrush current.
EL9227-5500
Overcurrent protection terminal
24 V DC, 2-channel, max. 10 AΣ
Channel 1 (5A) Channel 2 (5A)
A1
A2
21
22
- Q1 / 1.5
1.9 / N
1.9 / L3
1.9 / L2
1.9 / L1
N / 1.0
L3 / 1.0
L2 / 1.0
L1 / 1.0
N1
N2
1
2
-F1 ´C`16 A
-Q1 /1.5
3
4
-Q1 /1.5
1
2
-F1 ´C`16 A
XPlanar
Group1
U
+24 V
L
N
GND (24 V)
- Q1
/SIE.3RT2026-2KB40
+ +
- -
Power Supply 24 V
XPlanar
Group1
(≤ 6 APS4322)
Control cabinet earth
The following table shows the wire assignment for the XPlanar
power cable:
Wire color Signal Wire cross-section
Brown L (100-240V) 1.5mm
2
Blue N (100-240V) 1.5mm
2
Green/yellow PE Protective earth 1.5mm
2
Red +24V 0.75mm
2
White GND 24V 0.75mm
2
