Electrical installation
Version: 1.0 ───
55XPlanar

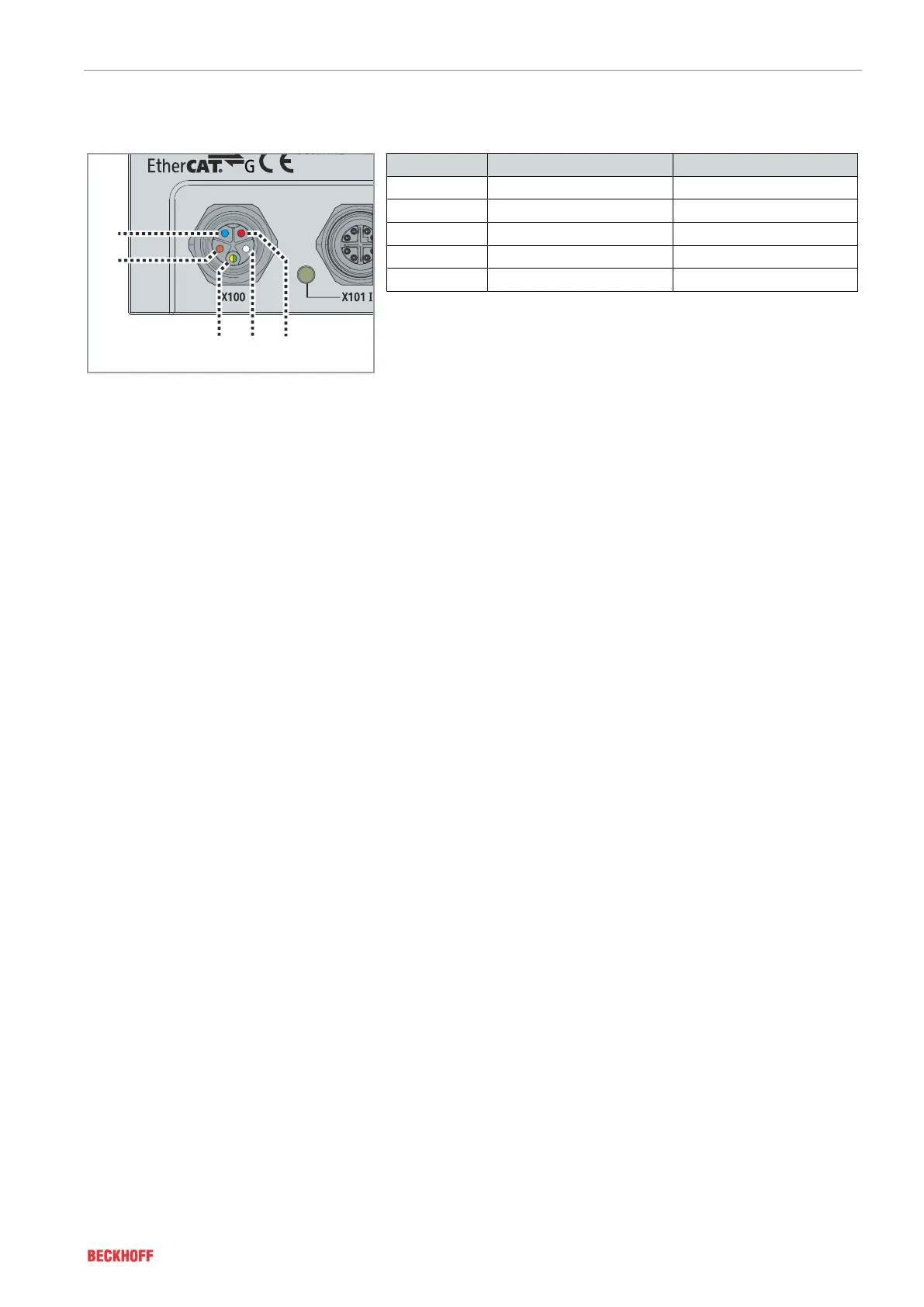

8.4.1X100 pin assignment
8.4.1
2
1
345
Number Identification Signal
1 Brown L, 100 - 240V
2 Blue N, 100 - 240V
3 Red + 24V
4 White GND, 24V
5 Green/yellow PE Protective earth
