Beckhoff XPlanar User Manual

Mechanical Installation – Part 1: Tiles
44 ─── Version: 1.0XPlanar
7.2
Tile
Each tile can be fixed at any position in the prefabricated machine
bed. Each tile must be fixed with two locating pins and at least two
screws. Depending on the position and load on the tile, four or six
screws can be used for fastening.

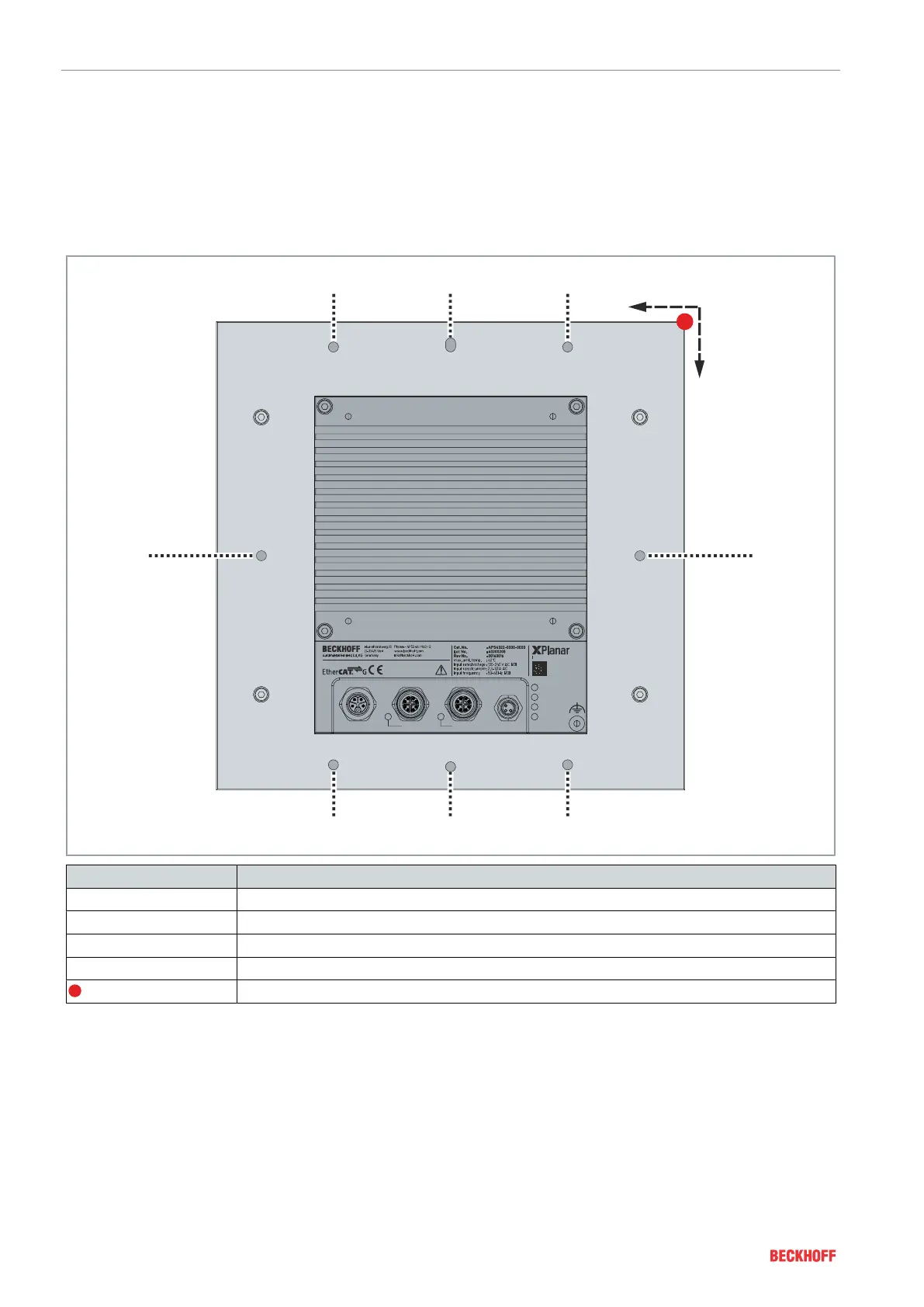

7.2.1Fixing points
7.2.1
2
1
1
4
1
1
3
3
X
Y
X100
ECAT Run
ECAT Error
Aux Ok
DC Link Ok
X103X102 OUTX101 IN
Number Name
1 Thread for mounting on the machine bed with fourscrews*
2 Elongated hole for locating pin
3 Thread for mounting on the machine bed with twoscrews*
4 Locating pin hole
Point of origin
*To fix the tile with six screws, use fixing points [1] and[3]
