Electrical installation
60 ─── Version: 1.0XPlanar
8.6.1Painted surfaces
8.6.1
3
2
1
4
5

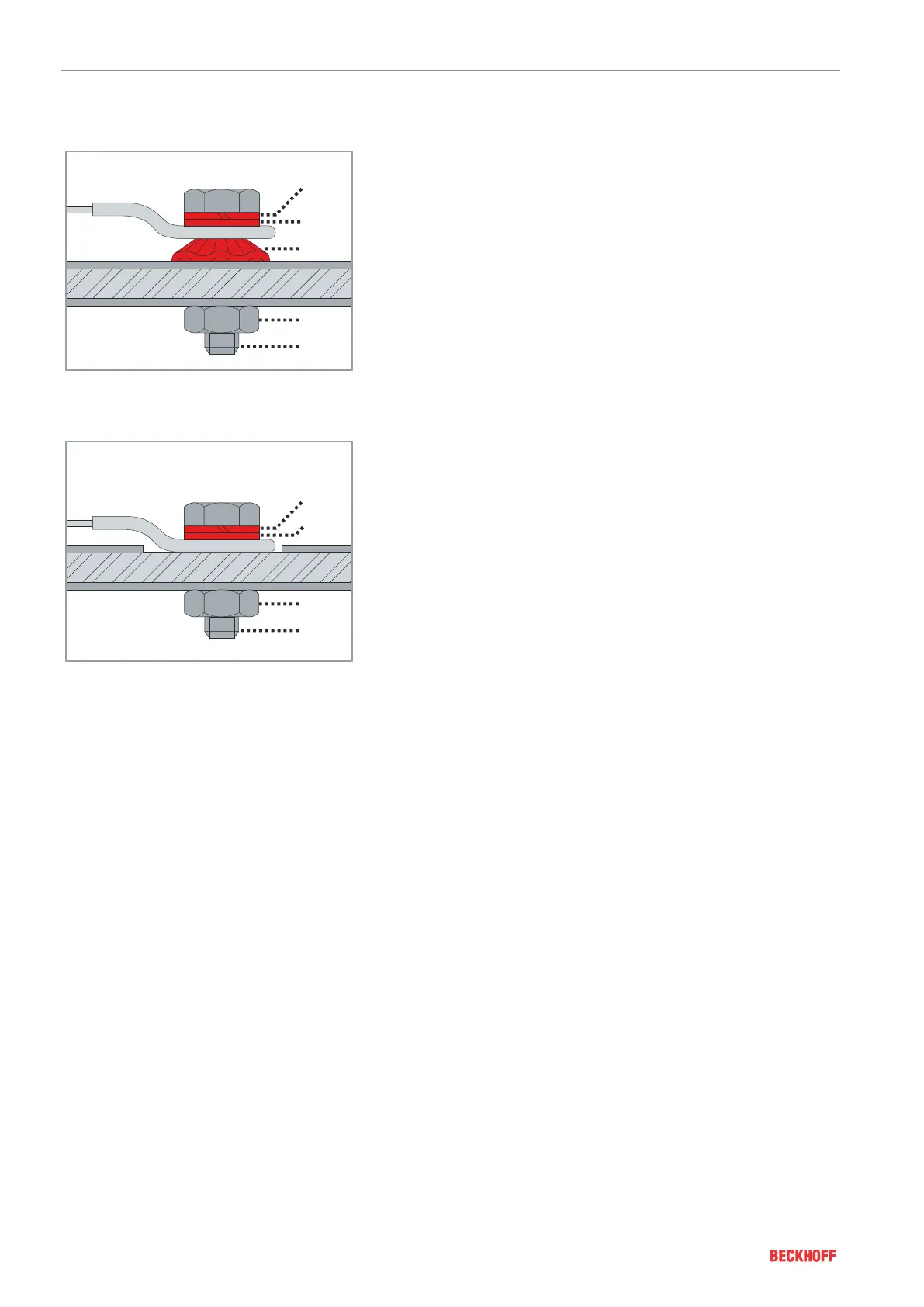

► Ground the painted surface with spring washer[1], washer[2],
contact washer[3], nut[4] and screw[5]
8.6.2Unpainted surfaces
8.6.2
2
1
3
4
► Ground the unpainted surface with spring washer[1], washer[2],
nut[3] and screw[4]
